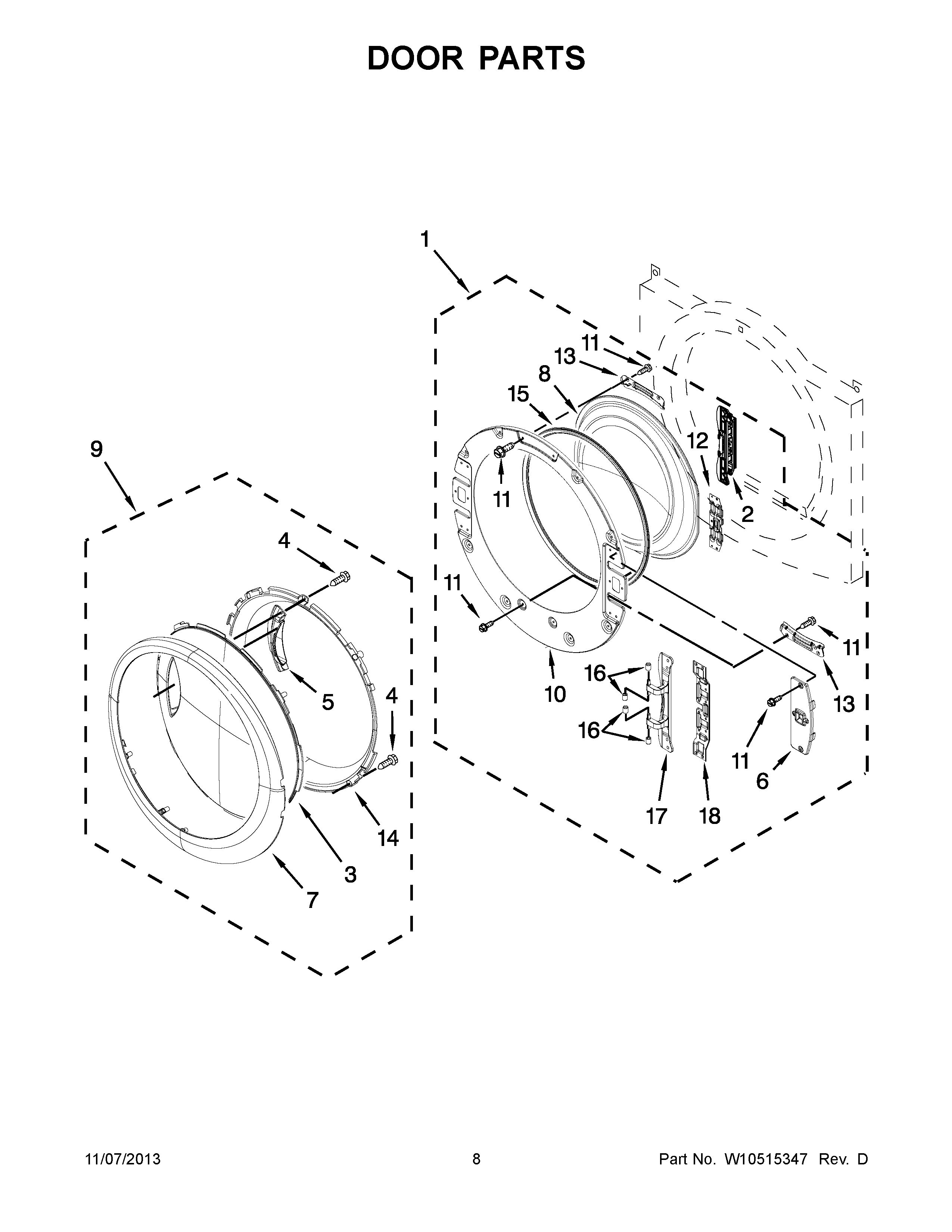

WGD94HEAW0 05 – DOOR PARTS

WGD94HEAW0 05 – DOOR PARTS

Written by

in

WGD94HEAW0 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	HINGE
3	SCREEN, DOOR
4	SCREW
5	W10208411 Whirlpool Handle
6	W10772469 Whirlpool Door Catch Cover
7	DOOR, TRIM RING
8	W11310036 Whirlpool Door Glass
9	ASSEMBLY, OUTER DOOR
10	DOOR, INNER
11	SCREW
12	WPW10208254 Whirlpool Catch
13	W10208252 Whirlpool Retainer
14	DOOR INTERMEDIATE
15	W11126230 Whirlpool Seal
16	WPW10208398 Whirlpool Hinge Pin Cap
17	HINGE
18	WPW10208419 Whirlpool Plate
