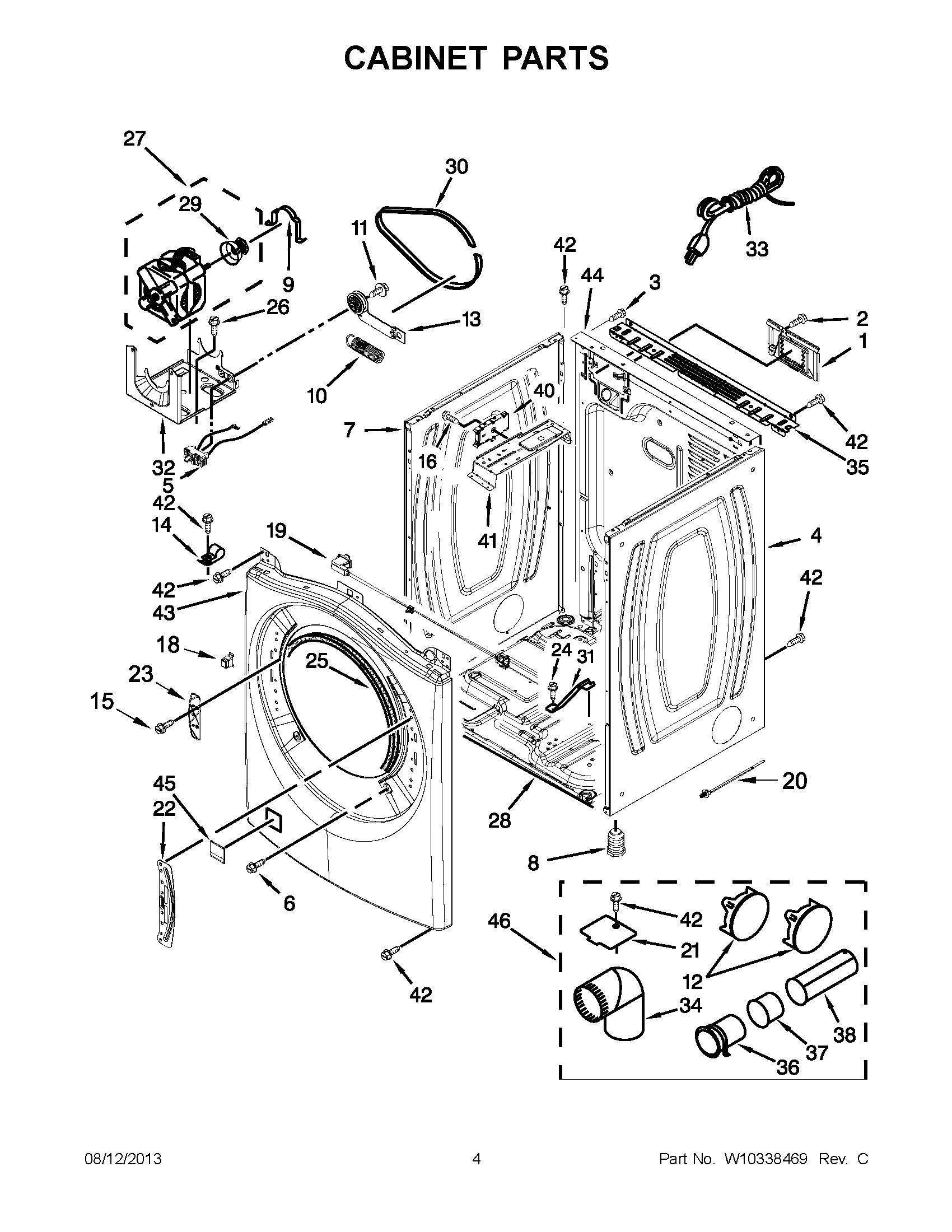

WGD94HEXR0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W11310043 Whirlpool Panel
4PANEL, SIDE (R.H.) (RED)
4PANEL, SIDE (R.H.) (SILVER)
5WPW10411937 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7W11233548 Whirlpool Panel
7PANEL, SIDE (L.H.) (SILVER)
7PANEL, SIDE (L.H.) (RED)
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13W10837240 Whirlpool Dryer Idler Pulley
143978776 Whirlpool Bracket
15SCREW
18W11240283 Whirlpool Catch Assembly
19DOOR SWITCH ASSEMBLY
20WPW10339879 Whirlpool Wire Tie
21WPW10354249 Whirlpool Cover
22BRACKET, DOOR HINGE
23WPW10208250 Whirlpool Strike
24WP693995 Whirlpool Screw
25WP3387242 Whirlpool Seal
26SCREW
27279787 Whirlpool Dryer Drive Motor
28W11215531 Whirlpool Base
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32W11481730 Whirlpool Bracket
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35WPW10208382 Whirlpool Dryer Bracket
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
40CONTROL BOARD
41BRACKET, CONTROL
42WP488729 Whirlpool Refrigerator Door Screw
43FRONT PANEL (INCLUDE ITEM, 25. ) (WHITE)
43W10337783 Whirlpool Panel
43WPW10316296 Whirlpool Panel
44W10487430 Whirlpool Rear Panel
45PLUG, FRONT PANEL (SILVER)
45PLUG, FRONT PANEL (RED)
45W10811916 Whirlpool Plug
46W10323246 Whirlpool Dryer Vent Kit 4-Way
