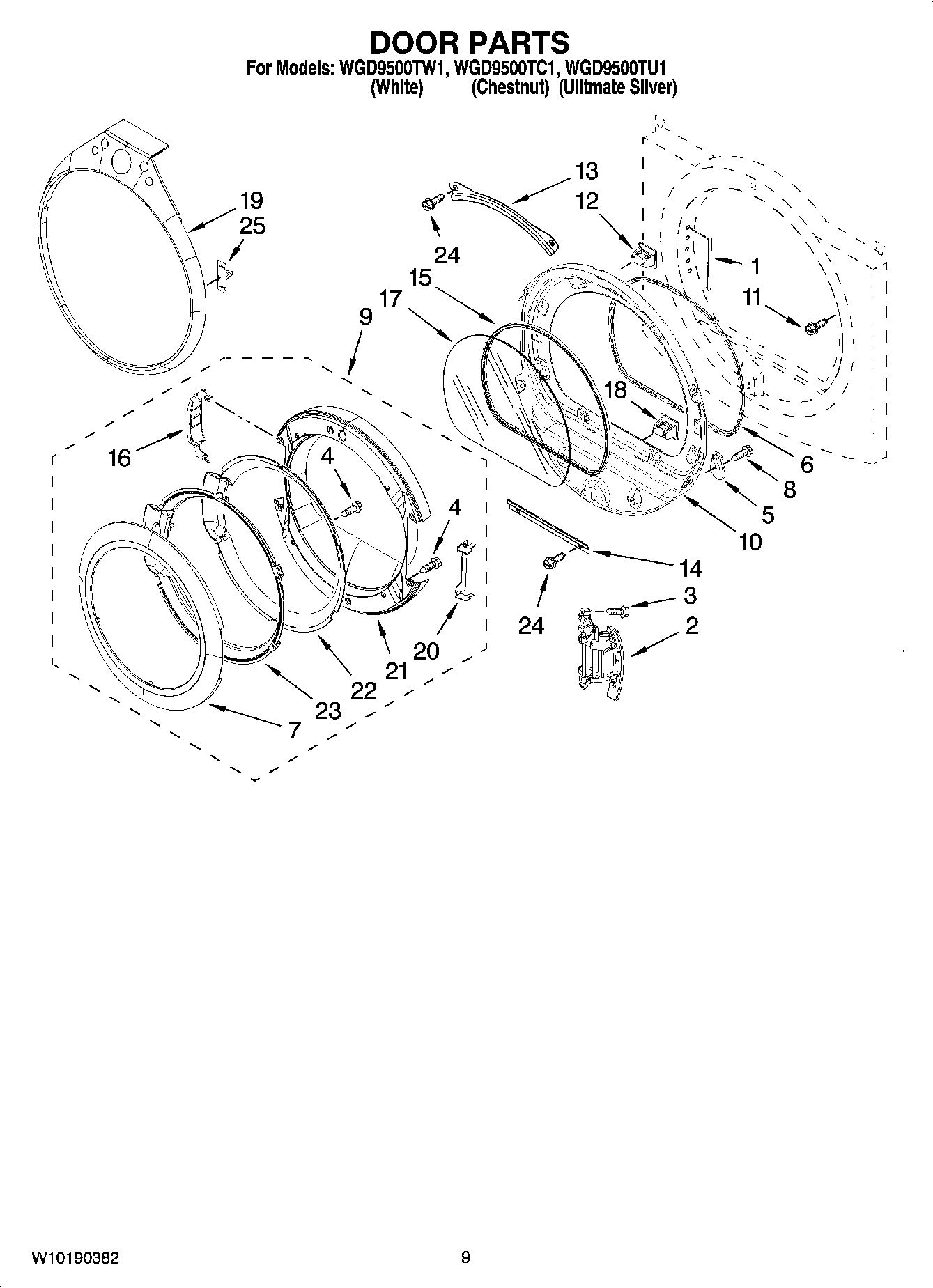

WGD9500TU1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI165813A
	8212450A Whirlpool Dryer Rack Assembly
	8541503 Whirlpool Stacking Kit
	WPL 8212605
	49586 Whirlpool Mixer
	8579666ARP Whirlpool Door Kit
	WPL W10044603
	WPL W10162090
	WPL ARI165812A
	ACCESSORY PARTS, KIT, HOLD DOWN
	72017 Whirlpool Appliance Touch-Up Paint White
	WP16123 Whirlpool Washer
	350938 Whirlpool Spray Gun
	WP76314 Whirlpool Fill Hose
	4392067 Whirlpool Dryer Repair Kit
	799344 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint
1	W10085210 Whirlpool Label
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Screw-Plug
6	WPW10139457 Whirlpool Door Seal
7	Handle, Ring Door (Silver)
7	Handle, Ring Door (Gold)
8	Screw, 1/4-20 x 1/2
9	Door Assembly (Outer) (Silver)
9	Door Assembly (Outer) (Gold)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Cover-Hinge, Stationary (LH)
16	(Following Parts Not Included)
16	COVER HINGE (STATIONARY (RH))
17	WP8566254 Whirlpool Window Assembly
19	Tear-Drop Trim & Clip Assembly (Ultimate Silver)
19	Tear-Drop Trim & Clip Assembly (White)
19	Tear-Drop Trim & Clip Assembly (Chestnut)
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
25	WPW10129065 Whirlpool Clip
