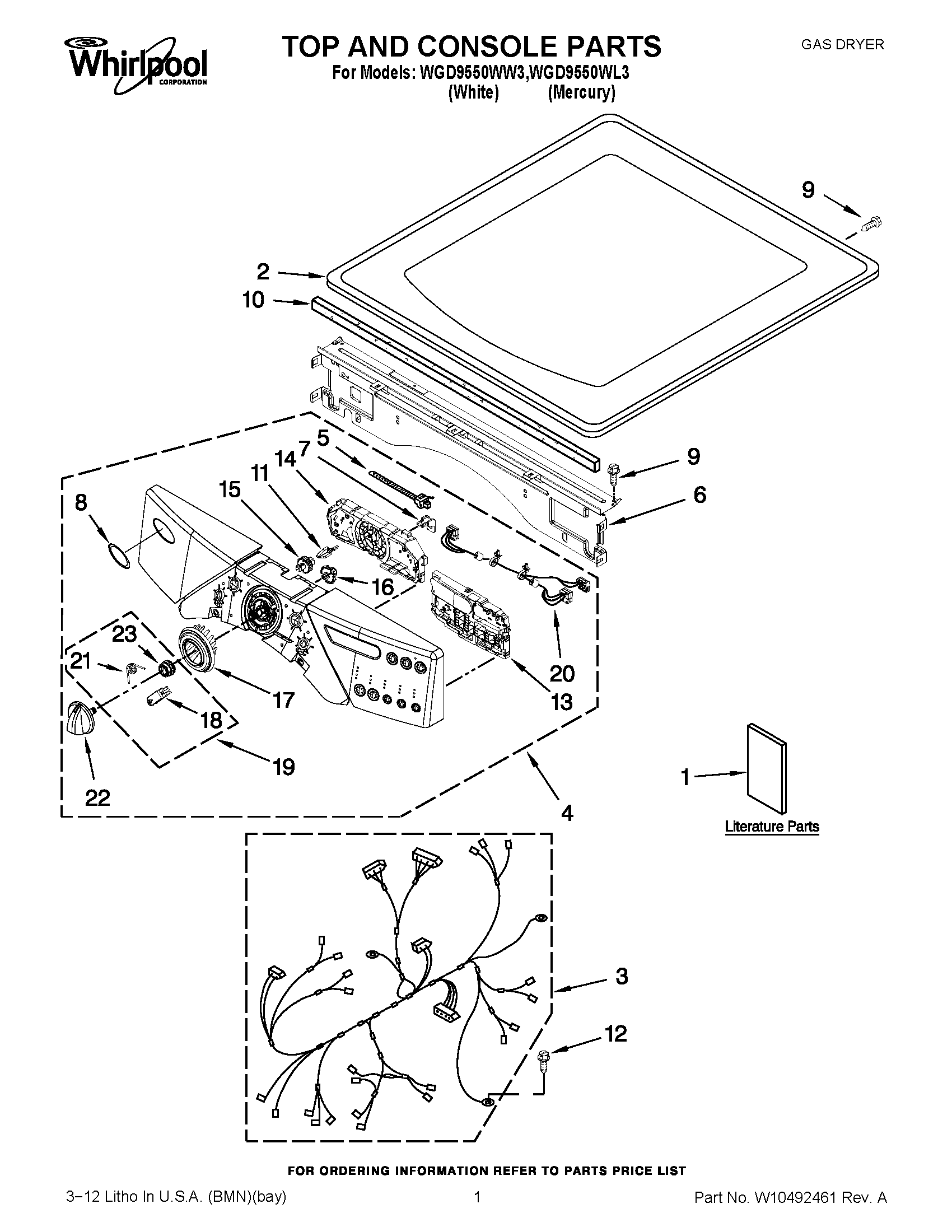

WGD9550WL3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2TOP (MERCURY)
2Top (White)
3W10111069 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDE ITEMS, (MERCURY)
4PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8Medallion
9WP488729 Whirlpool Refrigerator Door Screw
10W10112267 Whirlpool Seal Assembly
11W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
12WP693995 Whirlpool Screw
13USER INTERFACE (RIGHT)
14USER-INTERFACE CENTER (INCLUDE, ITEM. 11 )
15Encoder-Wheel
16Retainer-Snap
17W10250089 Whirlpool Ring
18Rast, Wheel Assy. (Service Only With Item. 28)
20W10242906 Whirlpool Wire Harness
21Knob, Spring (Service Only With Item 28)
22W10190685 Whirlpool Knob Assembly
23DETENT WHEEL (SERVICE ONLY WITH ITEM. 19 )
