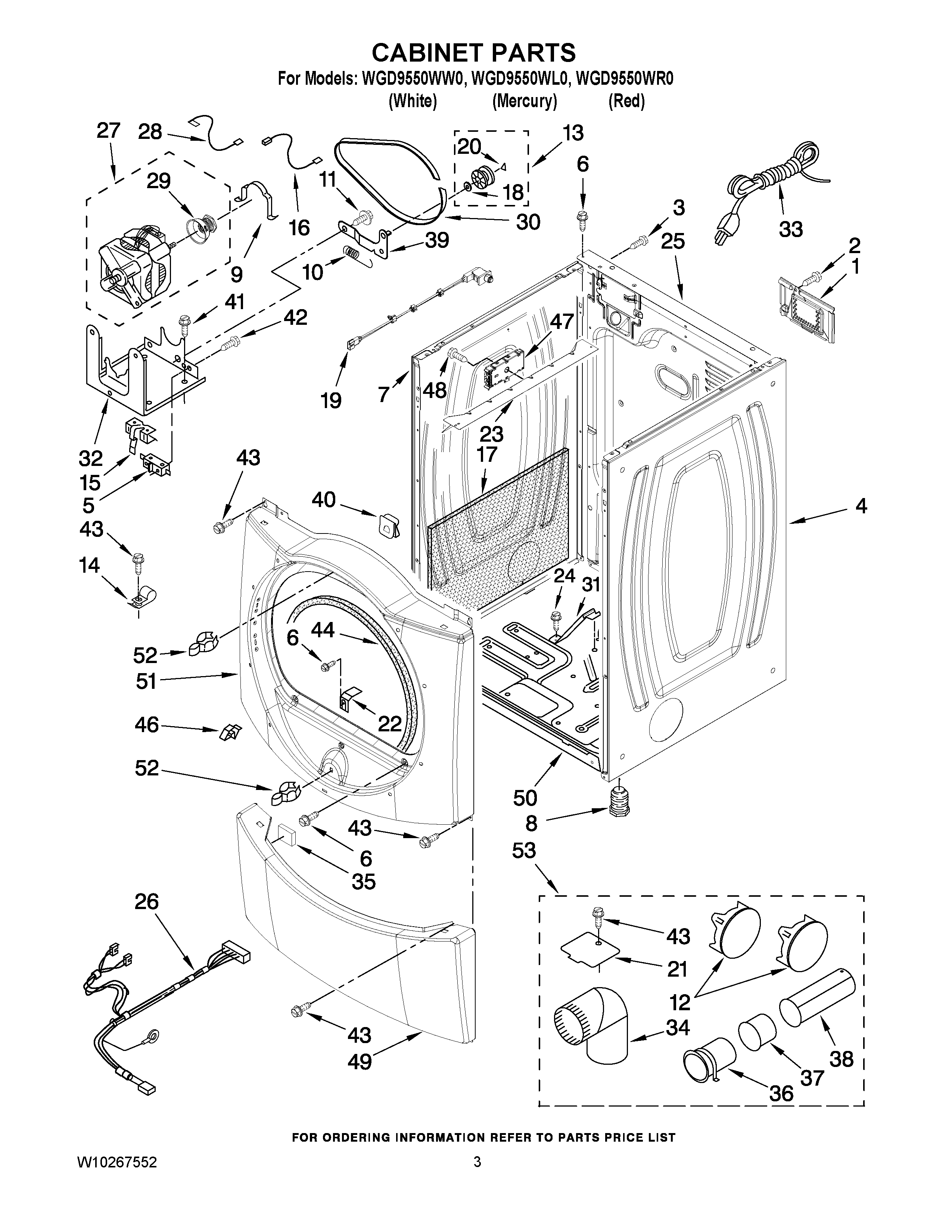

WGD9550WW0 02 – CABINET PARTS

Products

Position	Product
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	WPW10249725 Whirlpool Panel
4	PANEL, SIDE (R.H.) (RED)
5	279782 Whirlpool Lid Switch
6	WP308685 Whirlpool Microwave Screw
7	PANEL, SIDE (L.H.) (RED)
7	W11233548 Whirlpool Panel
7	PANEL, SIDE (L.H.) (SILVER)
8	49621 Whirlpool Leveling Feet
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	CLAMP
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	WP8066120 Whirlpool Lever Assembly
16	W10167612 Whirlpool Wire
17	Sound Panel
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
23	WP8563727 Whirlpool Bracket
24	WP693995 Whirlpool Screw
25	Panel, Rear
26	W10181464 Whirlpool Wire Harness
27	279787 Whirlpool Dryer Drive Motor
28	3398948 Whirlpool Wire
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	WP3387118 Whirlpool Base Assembly
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	3389682 Whirlpool Spacer
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	Clip, Mounting (2)
41	SCREW
42	WP98129 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	W11295573 Whirlpool Clip
47	BOARD, CONTROL
49	WPL W10250673
49	WPL W10249737
49	Toe, Panel
50	BASE, CABINET
51	FRONT PANEL (RED)
51	WPL W10180423
51	FRONT PANEL (INCLUDE, ITEM. 7) (MERCURY)
52	279570 Whirlpool Dryer Door Latch Kit
53	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
