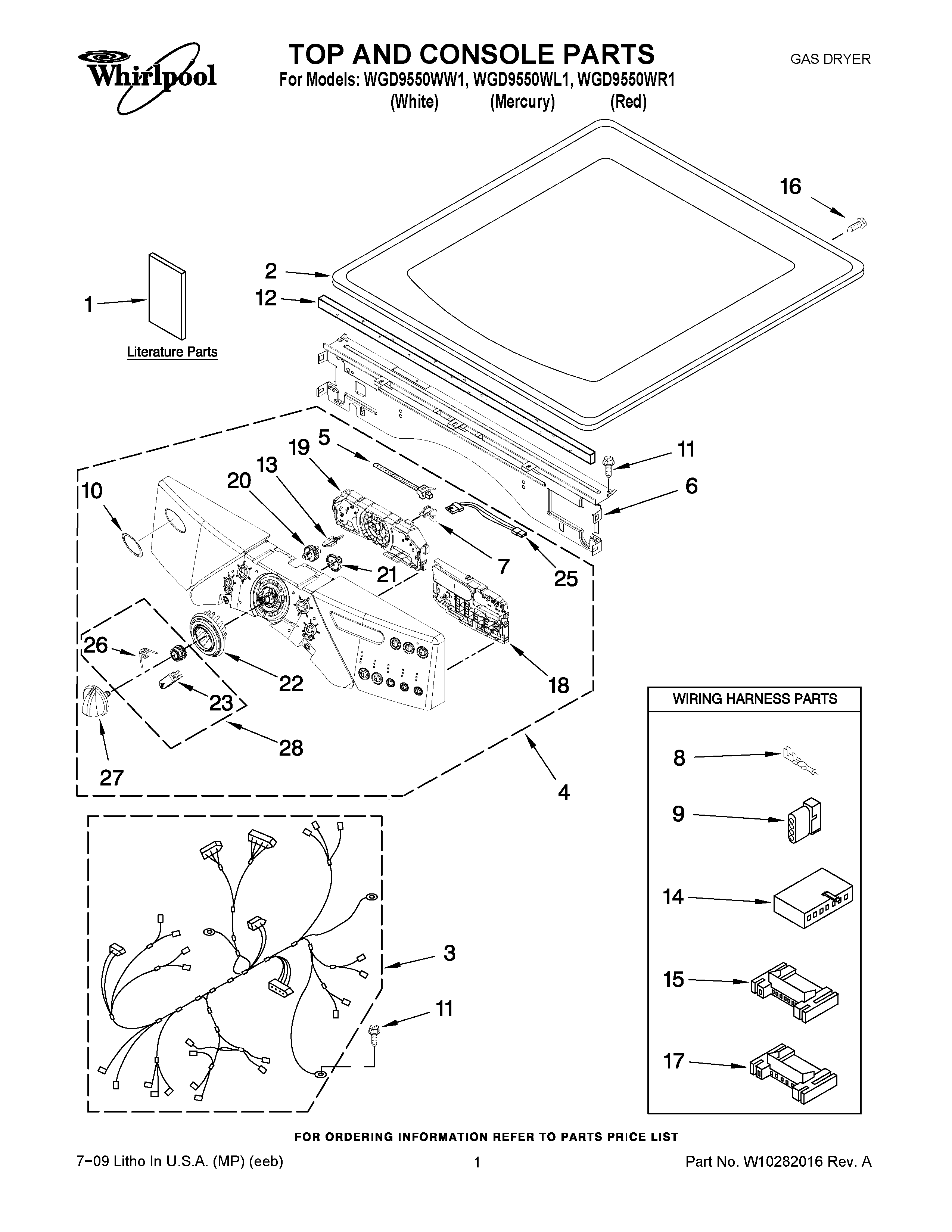

WGD9550WW1 01 – TOP AND CONSOLE PARTS

WGD9550WW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9550WW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET
1INSTALLATION, INSTRUCTION
2TOP (MERCURY)
2Top (White)
2TOP (RED)
3W10111069 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDE ITEMS, 5,7,10,13,18,19, 20,21,22,24,25 & 27 ) (RED)
4PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
4PANEL, CONSOLE (INCLUDE ITEMS, (MERCURY)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10Medallion
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16303776 Whirlpool Dishwasher Screw
172203186 Whirlpool Connector
18USER INTERFACE (RIGHT)
19W10110658 Whirlpool Electronic Control Board
20Encoder-Wheel
21Retainer-Snap
22W10250089 Whirlpool Ring
23Rast, Wheel Assy. (Service Only With Item. 28)
25W10242906 Whirlpool Wire Harness
26Knob, Spring (Service Only With Item 28)
27W10190685 Whirlpool Knob Assembly
