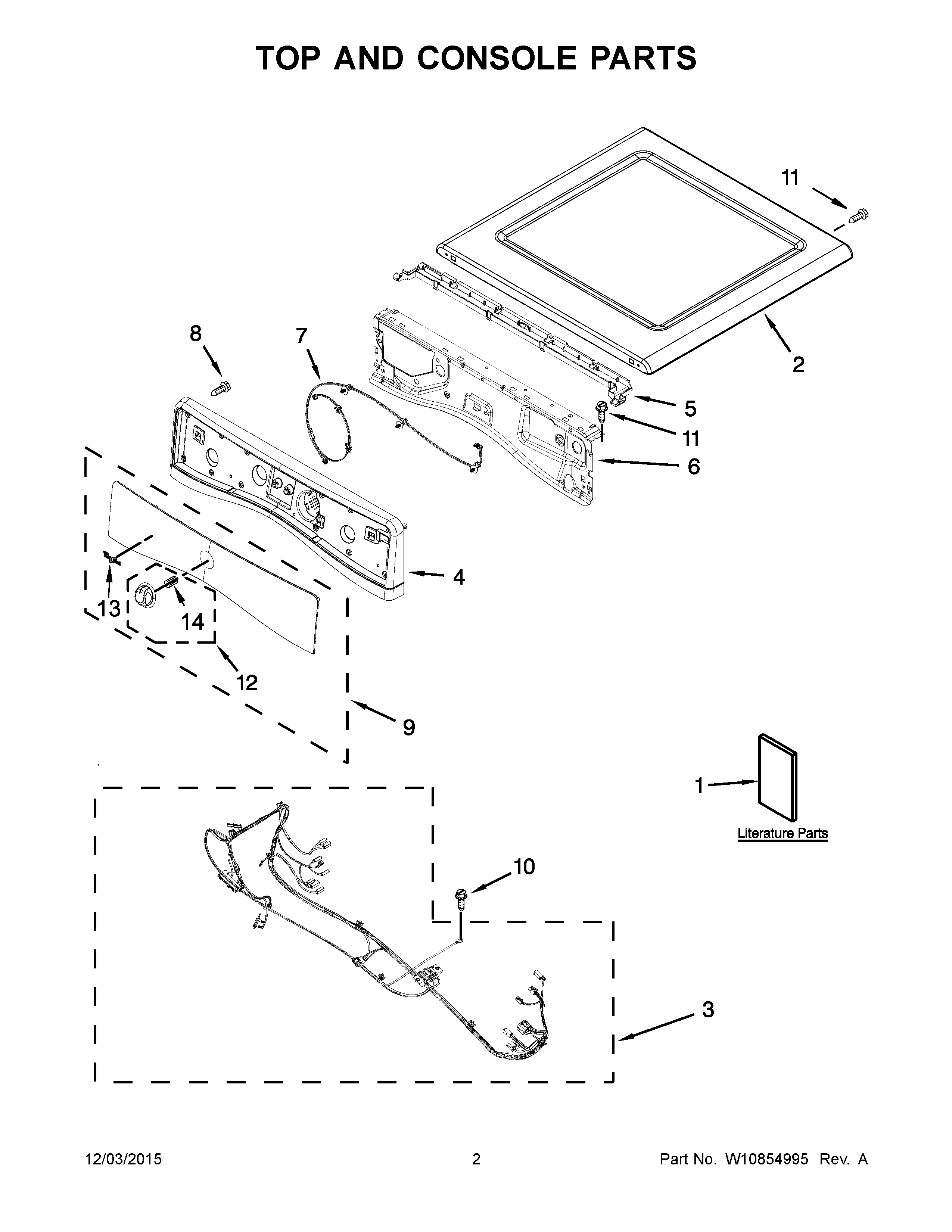

WGD95HEDC1 02 – TOP AND CONSOLE PARTS
Written by
in
WGD95HEDC1 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
USE AND CARE GUIDE
1C
QUICK START GUIDE
1B
INSTALLATION INSTRUCTIONS
1D
STEAM KIT INSTALLATION SHEET
1A
TECH SHEET
2A
WPW10460919 Whirlpool Top
2B
WPW10316282 Whirlpool Top Assembly
2
WPW10208383 Whirlpool Top Panel
3
HARNESS, MAIN WIRING
4B
PANEL, CONSOLE ASSEMBLY (SILVER)
4A
WPW10463687 Whirlpool Console Assembly
4
WPW10446407 Whirlpool Console
5
WPW10653575 Whirlpool Channel
6
W11480682 Whirlpool Bracket
7
W10837344 Whirlpool Wire Harness
8
W10853898 Whirlpool Screw
9
W10800228 Whirlpool Control Panel
9A
W10800229 Whirlpool Control Panel
9B
W10800230 Whirlpool Control Panel
10
WP693995 Whirlpool Screw
11
WP488729 Whirlpool Refrigerator Door Screw
12
W10875909 Whirlpool Timer Knob
12B
W10631128 Whirlpool Knob Assembly
12A
WPW10631127 Whirlpool Knob
13A
WPW10393264 Whirlpool Refrigerator Nameplate
13
W11178521 Whirlpool Dishwasher Nameplate
14
WP8536939 Whirlpool Spring Clip
←
