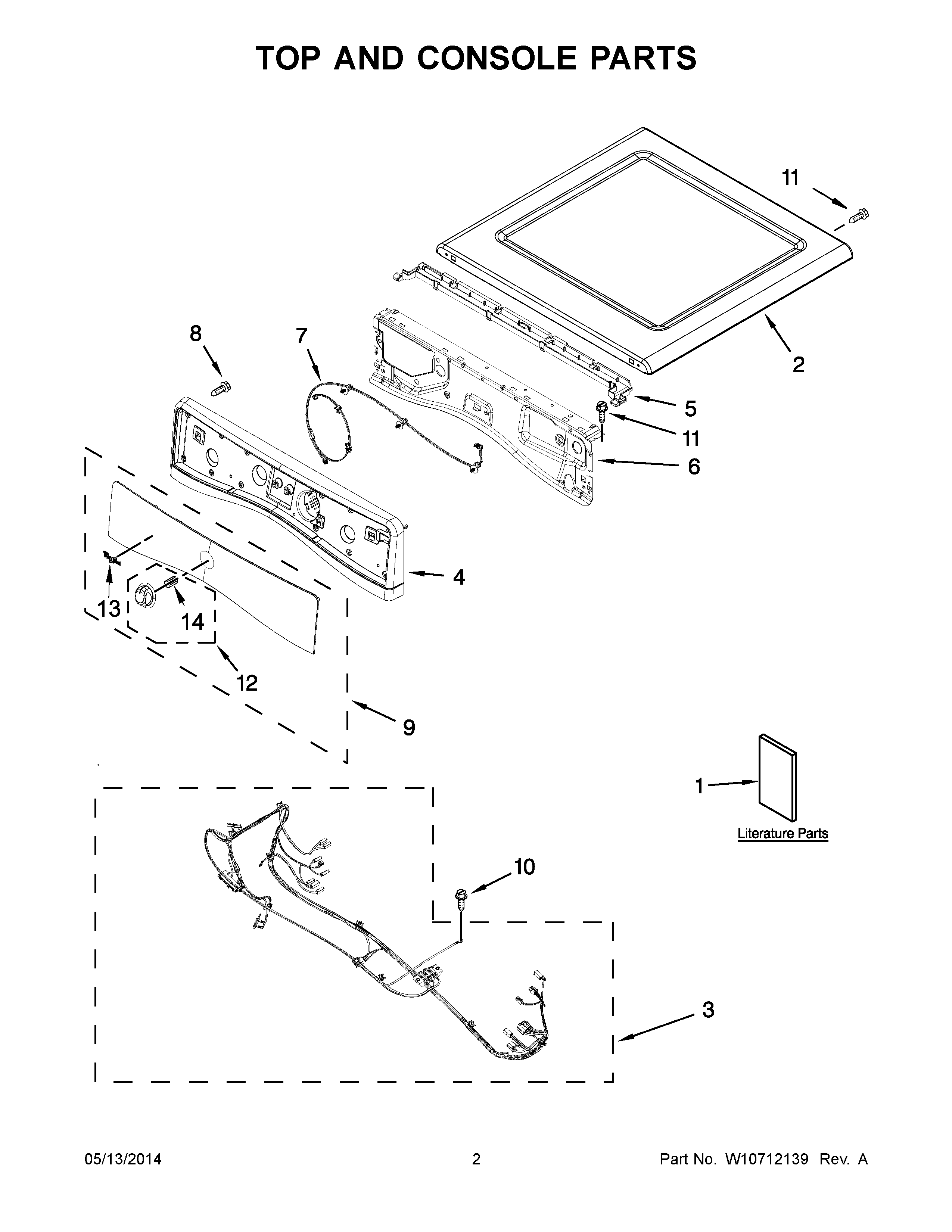

WGD95HEDU0 02 – TOP AND CONSOLE PARTS

WGD95HEDU0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD95HEDU0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1QUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1USE AND CARE GUIDE
1STEAM KIT INSTALLATION SHEET
1WIRING DIAGRAM
2WPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN WIRING
4PANEL, CONSOLE ASSEMBLY (SILVER)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9W10750358 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10631128 Whirlpool Knob Assembly
13BADGE (DIAMOND STEEL)
14WP8536939 Whirlpool Spring Clip
