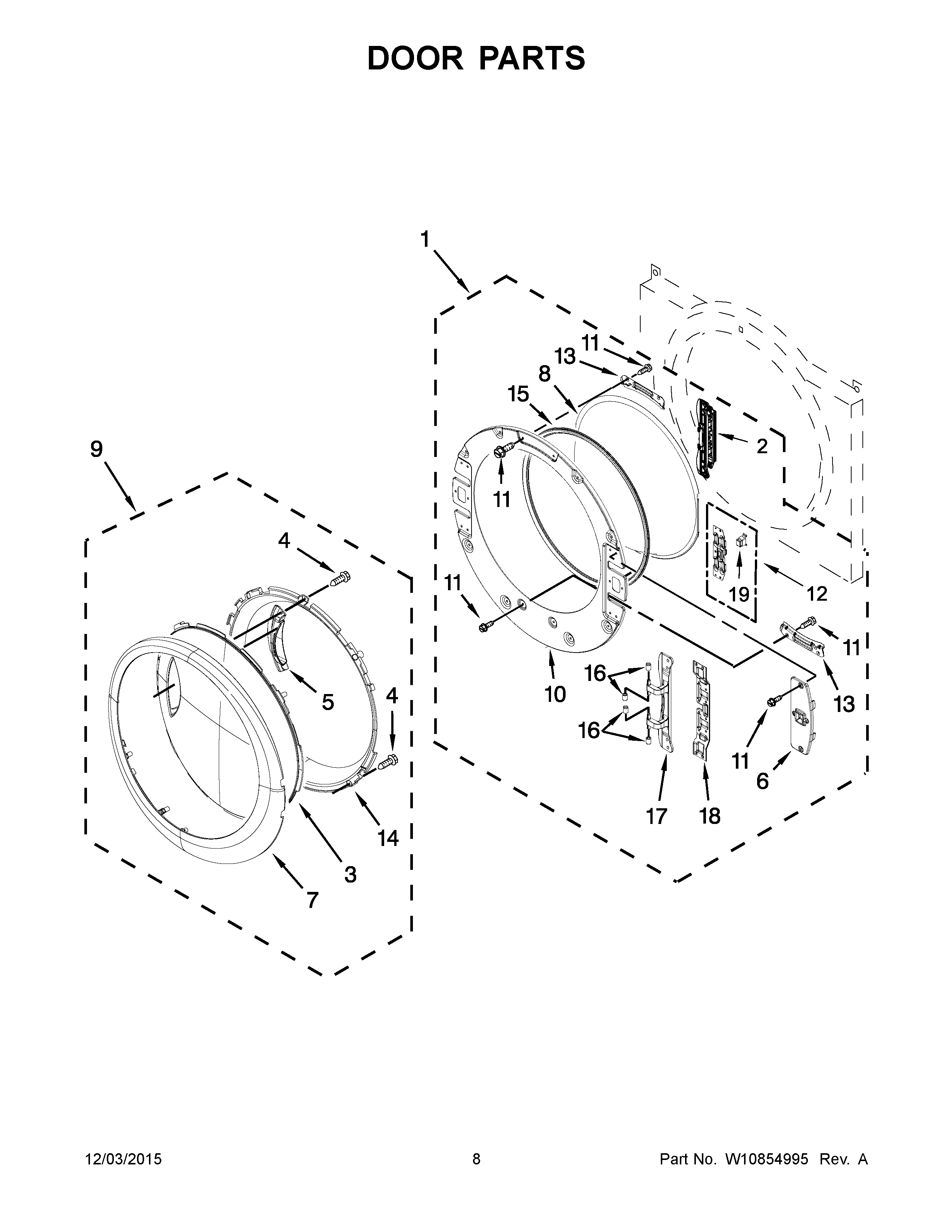

WGD95HEDU1 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, INNER DOOR (CHROME SHADOW)
2HINGE
3SCREEN, DOOR
4SCREW
5W10208411 Whirlpool Handle
6W10772469 Whirlpool Door Catch Cover
7W10772471 Whirlpool Trim
8W10823368 Whirlpool Window Assembly
9ASSEMBLY, OUTER DOOR
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
14DOOR INTERMEDIATE
15W11126230 Whirlpool Seal
16WPW10208398 Whirlpool Hinge Pin Cap
17HINGE
18WPW10208419 Whirlpool Plate
19W11240283 Whirlpool Catch Assembly
