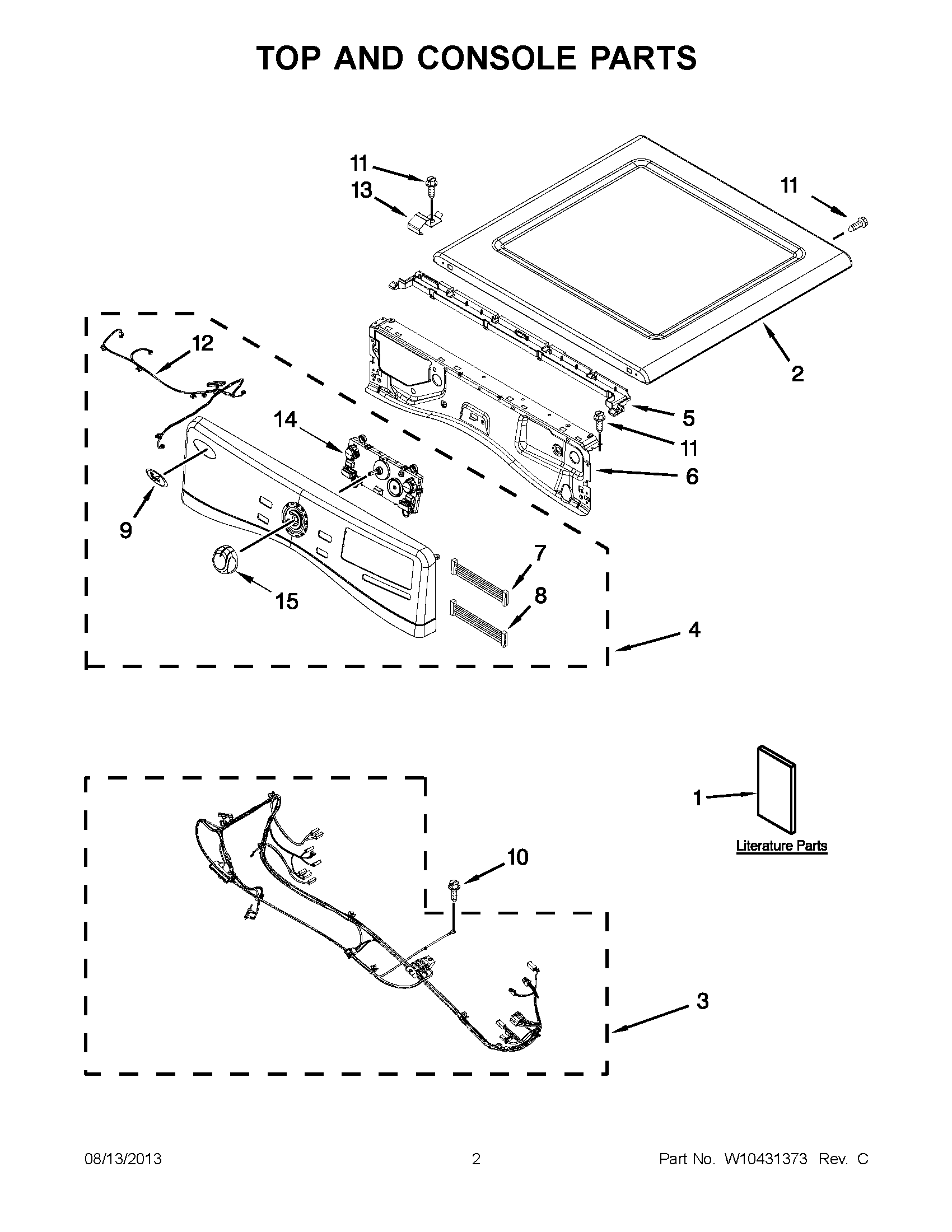

WGD95HEXL1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	TECH SHEET
1	USE AND CARE GUIDE
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
2	TOP (RED)
2	WPW10316282 Whirlpool Top Assembly
2	WPW10208383 Whirlpool Top Panel
3	HARNESS, MAIN
4	PANEL, CONSOLE (SILVER)
4	PANEL, CONSOLE (RED)
4	PANEL, CONSOLE (WHITE)
5	WPW10653575 Whirlpool Channel
6	W11480682 Whirlpool Bracket
7	HARNESS, JUMPER UI
8	W10267937 Whirlpool Wire Harness
9	Medallion
10	WP693995 Whirlpool Screw
11	WP488729 Whirlpool Refrigerator Door Screw
12	CABLE, USER INTERFACE
13	W10317566 Whirlpool Clip
14	UI, CENTER (INCLUDES KNOB)
15	WPW10251394 Whirlpool Knob
