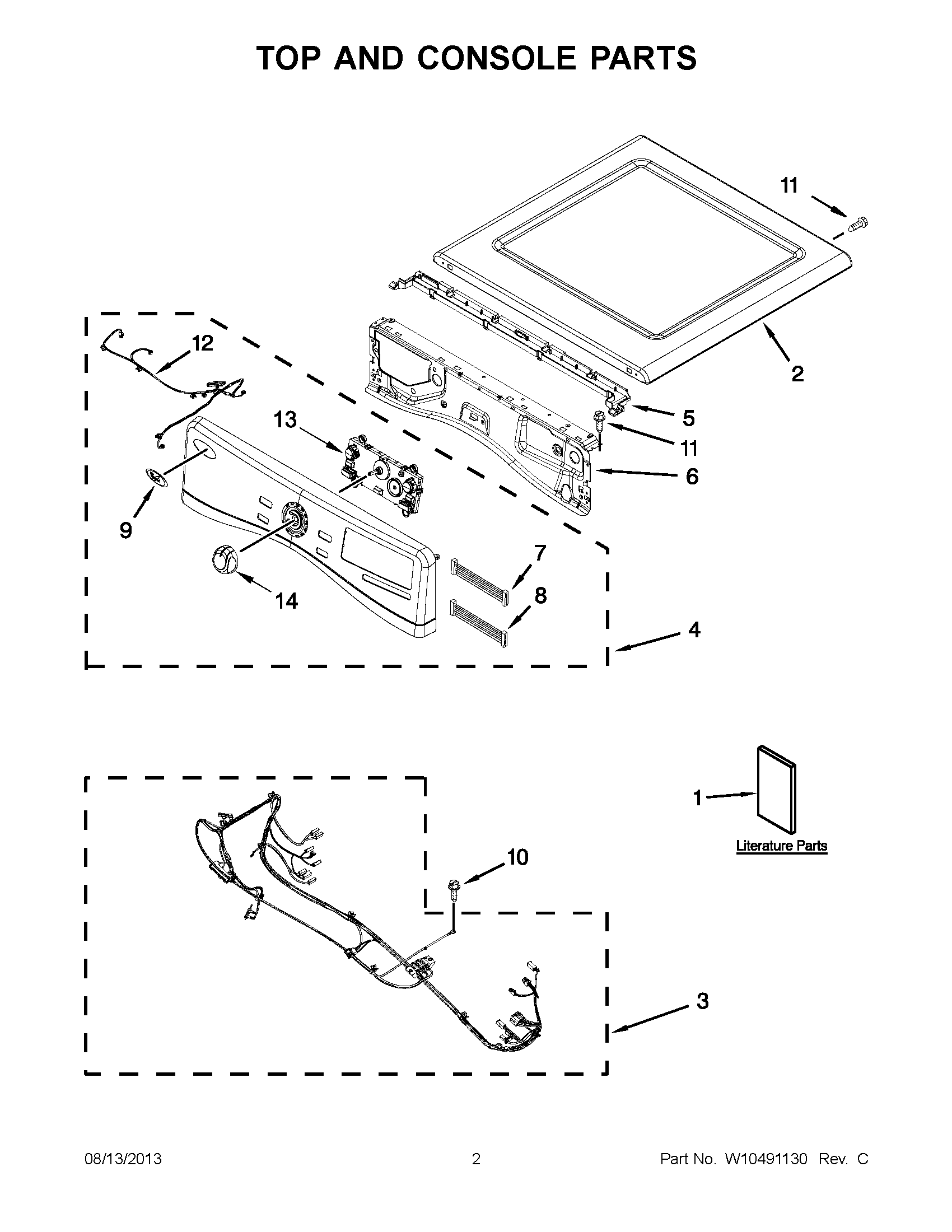

WGD95HEXL2 01 – TOP AND CONSOLE PARTS

WGD95HEXL2 01 – TOP AND CONSOLE PARTS

Written by

in

WGD95HEXL2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1WIRING DIAGRAM
1USE AND CARE GUIDE
2WPW10316282 Whirlpool Top Assembly
2WPW10208383 Whirlpool Top Panel
3W10441591 Whirlpool Wire Harness
4PANEL, CONSOLE (SILVER)
4WPW10464685 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10450060 Whirlpool Wire
13UI, CENTER (INCLUDES KNOB)
14WPW10251394 Whirlpool Knob
