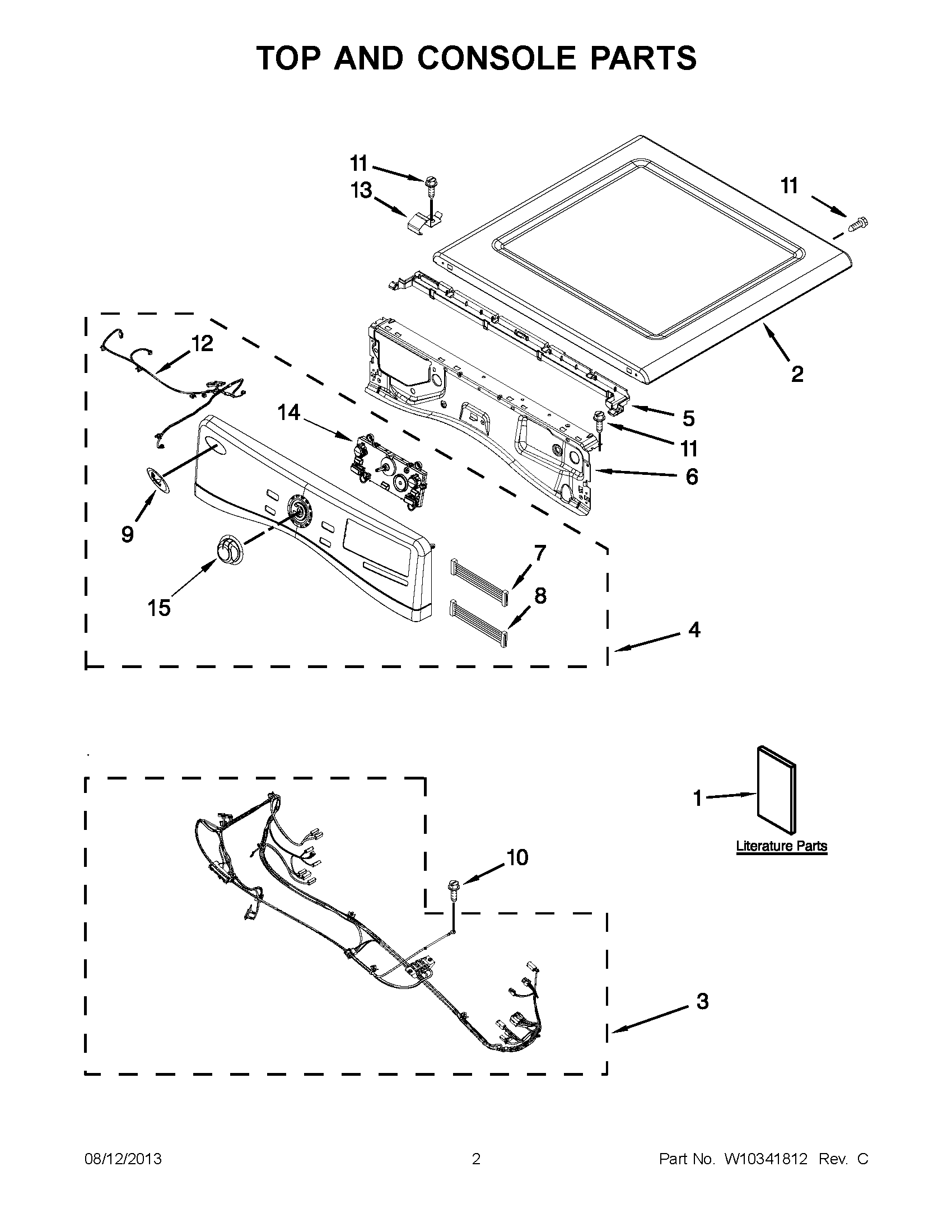

WGD95HEXW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2TOP (RED)
2WPW10316282 Whirlpool Top Assembly
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (RED)
4PANEL, CONSOLE (SILVER)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10267937 Whirlpool Wire Harness
8HARNESS, JUMPER UI
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12CABLE, USER INTERFACE
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
