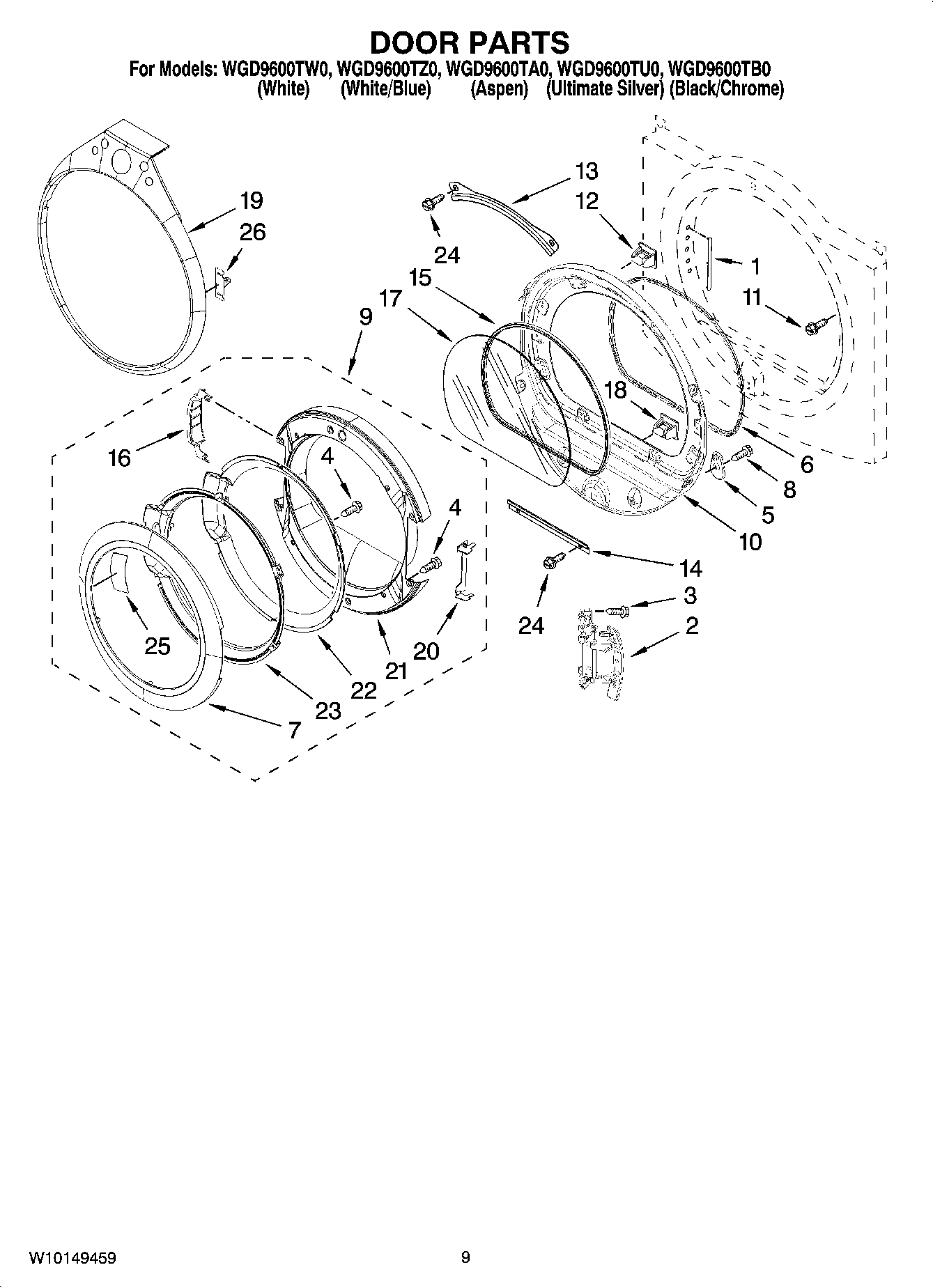

WGD9600TW0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS, KIT, HOLD DOWN
	8212450A Whirlpool Dryer Rack Assembly
	8541503 Whirlpool Stacking Kit
	WPL 8212605
	PAINT, TOUCH-UP (1/2oz.) (Black)
	49586 Whirlpool Mixer
	WPL W10157756
	8579666ARP Whirlpool Door Kit
	WPL W10044603
	4392067 Whirlpool Dryer Repair Kit
	WPL 786032
	WP76314 Whirlpool Fill Hose
	WP16123 Whirlpool Washer
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL ARI165864A
	WPL ARI165863A
	WPL 786020
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
1	WPW10085230 Whirlpool Label Assembly
1	W10085210 Whirlpool Label
2	WPW10310366 Whirlpool Hinge
3	Screw, 10-24 x 3/64
4	SCREW
5	Screw-Plug
6	WPW10139457 Whirlpool Door Seal
7	Handle, Ring & Pad Assembly (Gold)
7	Handle, Ring & Pad Assembly (Silver)
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	(Following Parts Not Included)
16	Cover-Hinge, Stationary (LH)
16	Cover-Hinge, Stationary (RH)
17	WP8566254 Whirlpool Window Assembly
19	Tear-Drop Trim & Clip Assembly (Black/Chrome)
19	Tear-Drop Trim & Clip Assembly (Ultimate Silver)
19	Tear-Drop Trim & Clip Assembly (White/Blue)
19	WPW10180500 Whirlpool Trim
20	Door Shield
21	Door-Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
25	W10121607 Whirlpool Cushion
26	WPW10129065 Whirlpool Clip
