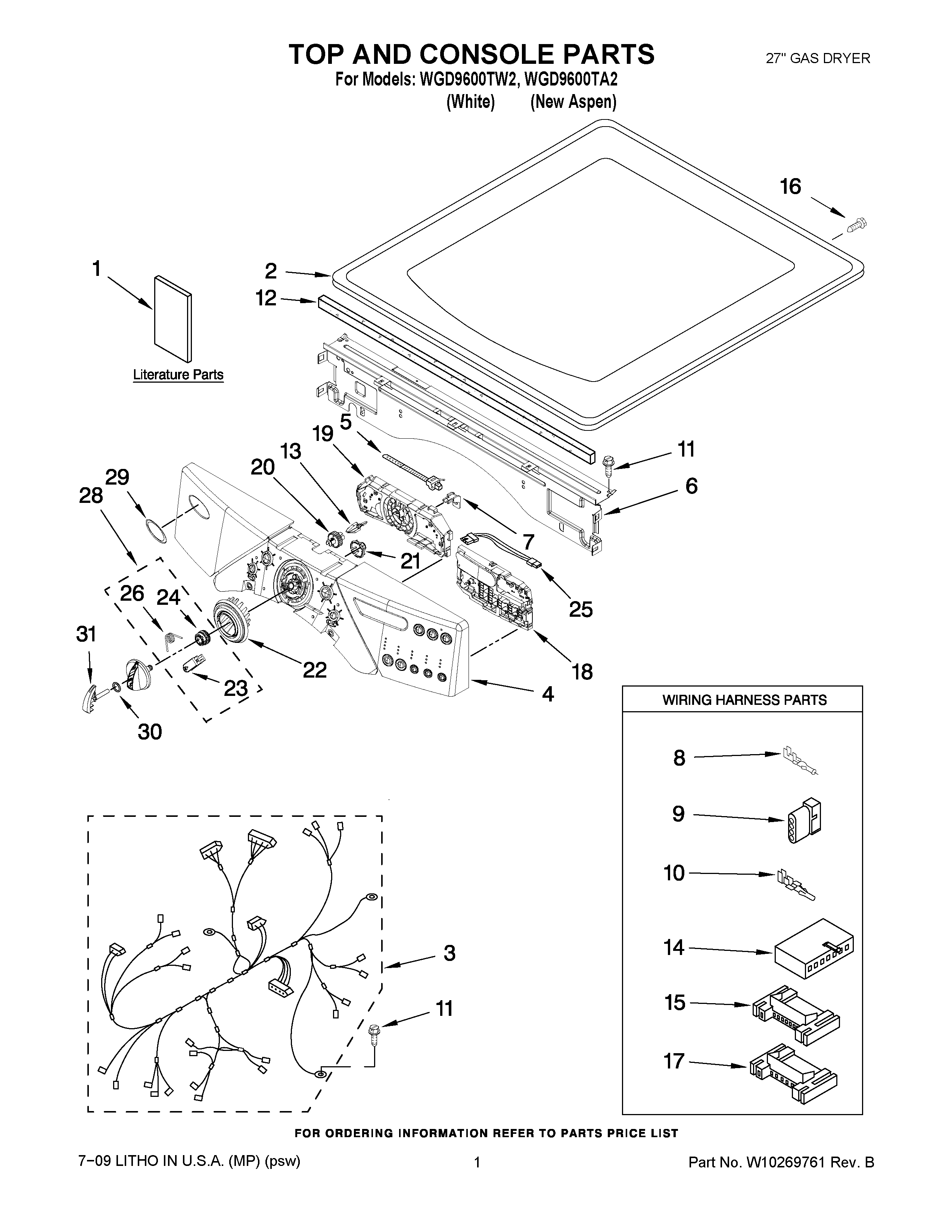

WGD9600TW2 01 – TOP AND CONSOLE PARTS

WGD9600TW2 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9600TW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1TECH SHEET
1USE & CARE GUIDE
2Top (Aspen)
2Top (White)
3W10111069 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDES ILLUS: 20,21,22,28,29) (NEW ASPEN)
4PANEL, CONSOLE (INCLUDES ILLUS: 20,21,22,28,29) (WHITE)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16303776 Whirlpool Dishwasher Screw
172203186 Whirlpool Connector
18WPW10279771 Whirlpool Electronic Control Board
19USER-INTERFACE CENTER (INCLUDE, ITEM. 11 )
20Encoder-Wheel
21Retainer-Snap
22KNOB, LIGHT RING (INCLUDES: ITEM 21)
23Rast, Wheel Assy. (Service Only With Item. 28)
24Detent Wheel (Service Only With Illus. 28)
25W10242906 Whirlpool Wire Harness
26Knob, Spring (Service Only With Item 28)
29Medallion
30O-RING, KNOB
31CAP SHELL-KNOB
