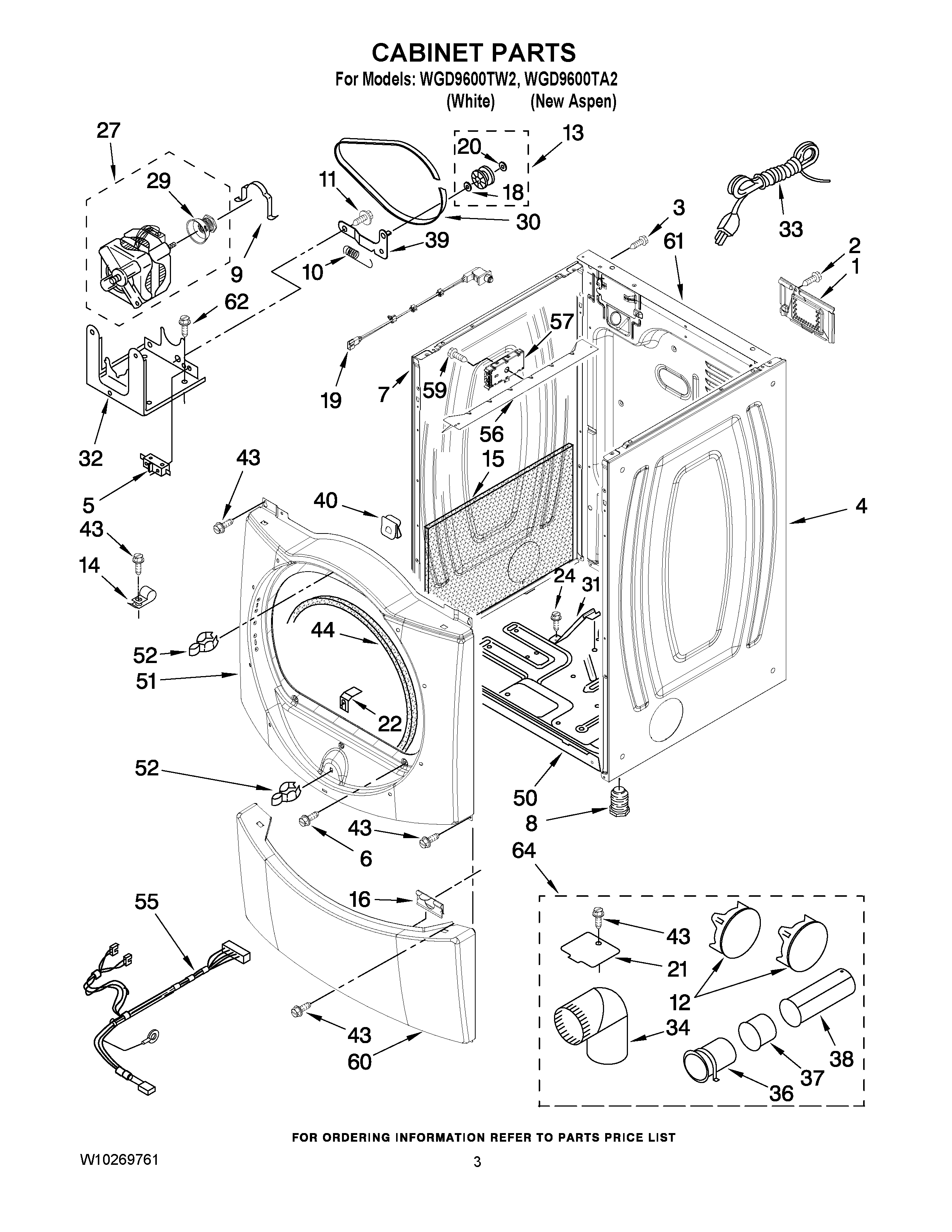

WGD9600TW2 02 – CABINET PARTS

WGD9600TW2 02 – CABINET PARTS

Written by

in

WGD9600TW2 02 – CABINET PARTS

Products

PositionProduct
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4PANEL, SIDE (R.H.) (NEW ASPEN)
5WPW10411937 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7PANEL, SIDE (L.H.) (NEW ASPEN)
7W11233548 Whirlpool Panel
849621 Whirlpool Leveling Feet
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15W10123956 Whirlpool Sound Absorber
16W11295573 Whirlpool Clip
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
21WPW10354249 Whirlpool Cover
22Ramp, Door
24WP693995 Whirlpool Screw
27279787 Whirlpool Dryer Drive Motor
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32W11481730 Whirlpool Bracket
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Mounting (2)
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
50BASE, CABINET
51WPL W10180432
51WPL W10180423
52279570 Whirlpool Dryer Door Latch Kit
55HARNESS, DIGITAL INTERFACE
56WP8563727 Whirlpool Bracket
57Board, Control
60TOE-PANEL (WHITE)
60WPL W10246278
61W10487430 Whirlpool Rear Panel
62SCREW
64W10470674 Whirlpool Dryer Side Vent Exhaust Kit
