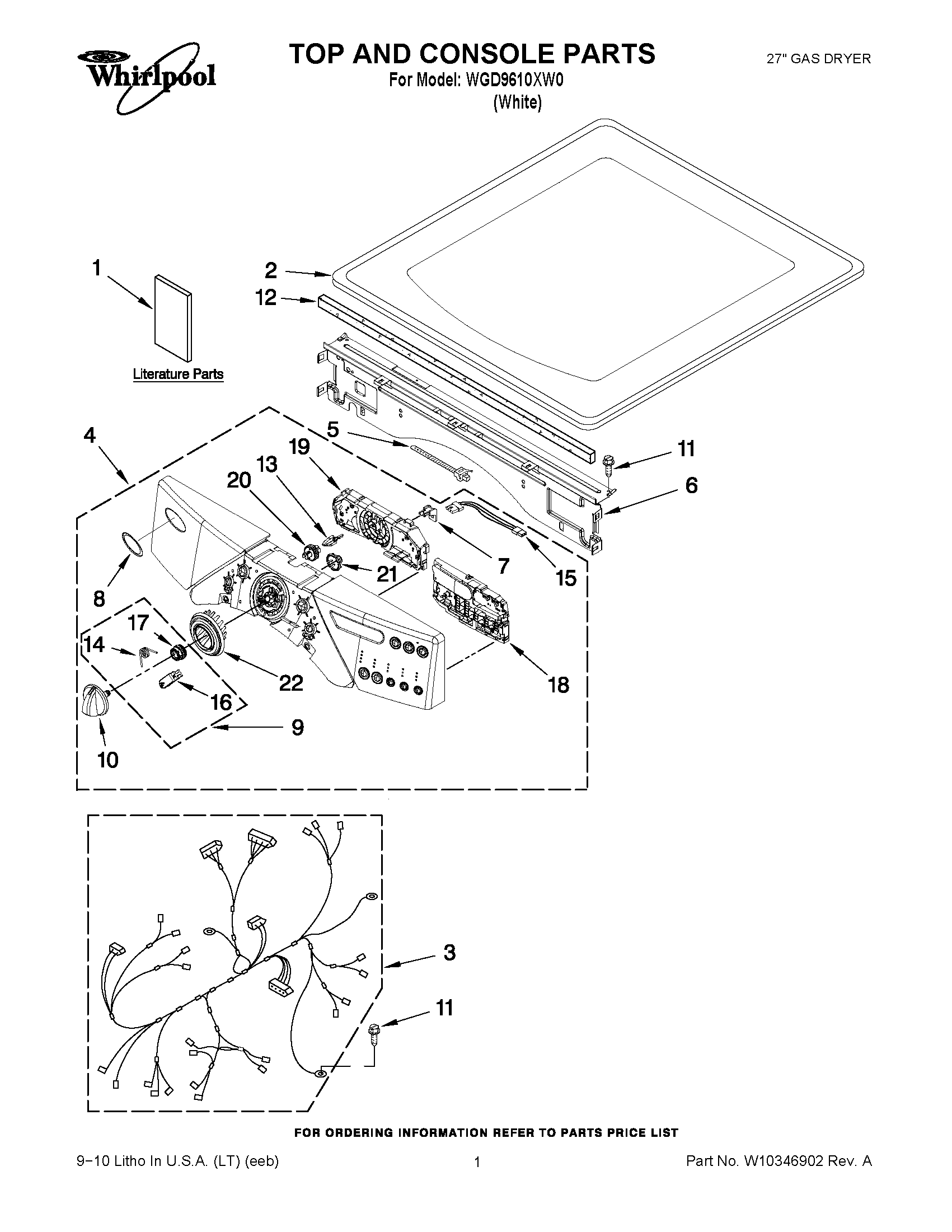

WGD9610XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1TECH SHEET
1USE & CARE GUIDE
2Top (White)
3W10111069 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8Medallion
10W10190685 Whirlpool Knob Assembly
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14Knob, Spring (Service Only With Item 28)
15W10242906 Whirlpool Wire Harness
16Rast, Wheel Assy. (Service Only With Item. 28)
17DETENT WHEEL (SERVICE ONLY WITH ITEM. 28 )
18USER INTERFACE (RIGHT)
19USER-INTERFACE CENTER (INCLUDE, ITEM. 11 )
20Encoder-Wheel
21Retainer-Snap
22W10250089 Whirlpool Ring
