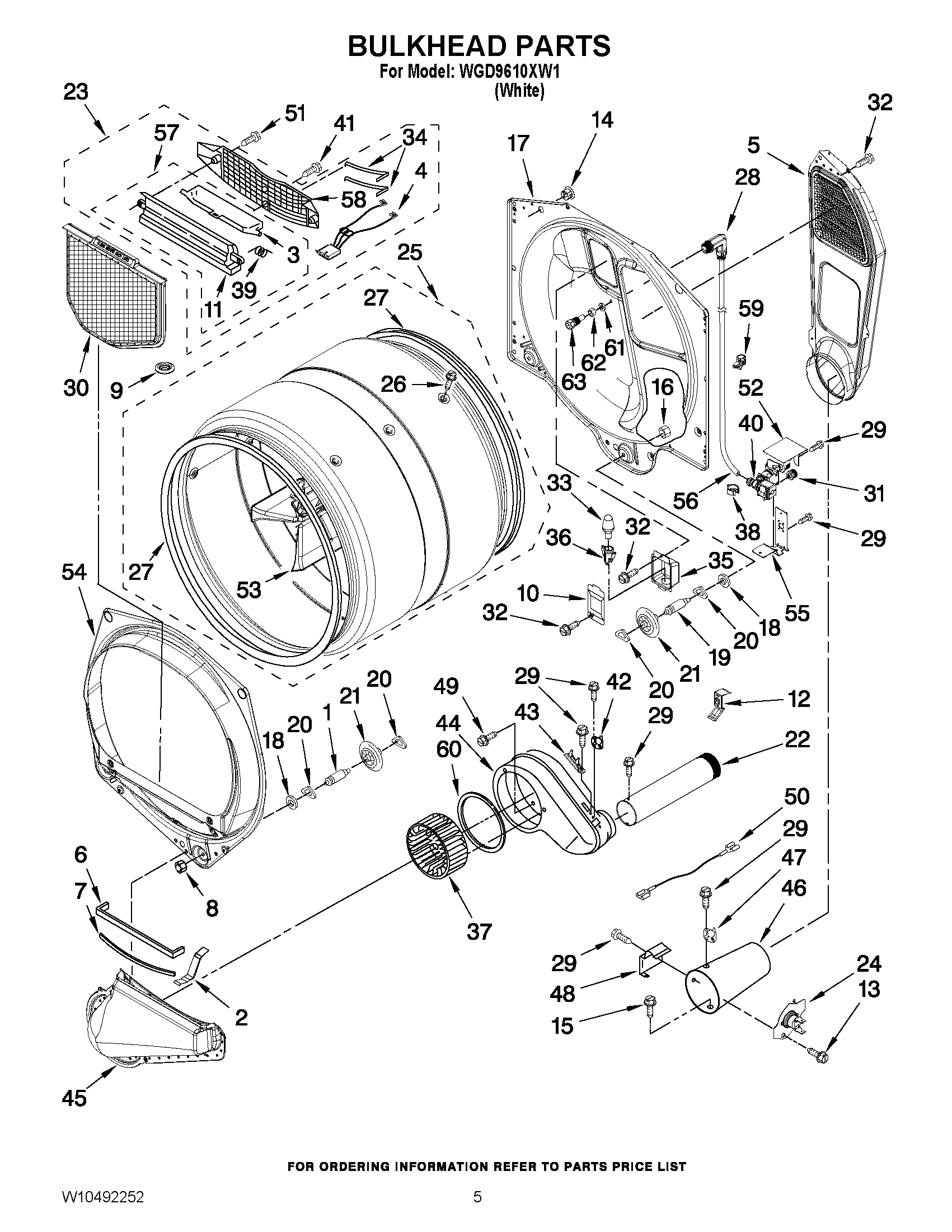

WGD9610XW1 03 – BULKHEAD PARTS

WGD9610XW1 03 – BULKHEAD PARTS

Written by

in

WGD9610XW1 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP8066208 Whirlpool Clip
3W11222846 Whirlpool Door
4WP3406653 Whirlpool Wire Harness
5W11168650 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9W10665050 Whirlpool Plug
10W11226088 Whirlpool Lens Assembly
11W11129408 Whirlpool Out Housing
12W11684573 Whirlpool Clip Assembly
13WP90767 Whirlpool Screw
148529007 Whirlpool Plug
15WP693995 Whirlpool Screw
16WPW10080190 Whirlpool Nut
17Bulkhead, Rear
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22279936 Whirlpool Exhaust Pipe
23W10253353 Whirlpool Outer Housing
24WP8573713 Whirlpool Thermal Fuse
25W10545923 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WPL W10358884
30W10120998 Whirlpool Dryer Lint Screen Filter
31W10859554 Whirlpool Coupler
32WP488729 Whirlpool Refrigerator Door Screw
33WP22002263 Whirlpool Dryer 10W Light Bulb
34WP3387223 Whirlpool Electrode Assembly
358578825 Whirlpool Bracket
36W11222979 Whirlpool Socket
37WP697772 Whirlpool Dryer Blower Wheel
38W10044599 Whirlpool Clip
39WP3394986 Whirlpool Spring
40Valve, Water Inlet (Includes Items, 29,52,55 & 65)
42WP8577274 Whirlpool Dryer Thermistor
43WP3392519 Whirlpool Dryer Thermal Fuse
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
46WP8573824 Whirlpool Funnel
47THRMST-FIX
48WP338906 Whirlpool Dryer Gas Sensor
49WP489463 Whirlpool Refrigerator Screw
50JUMPER, TCO HIGH LIMIT
51WP3387230 Whirlpool Screw
52W10184825 Whirlpool Cover
53WPW10113136 Whirlpool Drum Baffle
54WPL W10252304
55WPL W10044597
56WPL W10358883
57W11219327 Whirlpool Grille Outlet
58W11086603 Whirlpool Dryer Link Screen Air Grille
59WP3391018 Whirlpool Wire Tie
60WP697770 Whirlpool Blower Cover Plate Seal
61W10044579 Whirlpool Washer
62W10044628 Whirlpool Nut
63WPW10277503 Whirlpool Nozzle
