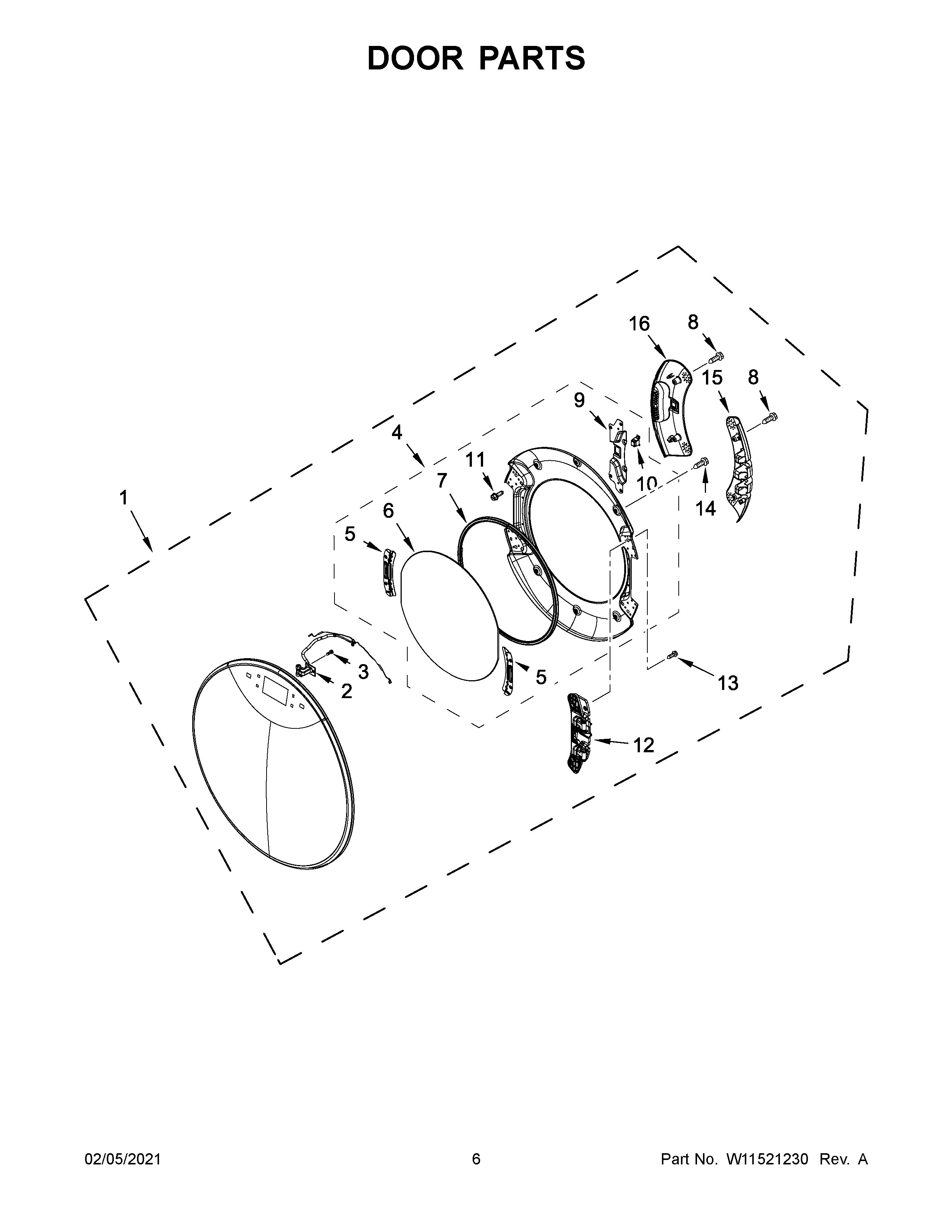

WGD9620HBK2 04 – DOOR PARTS

WGD9620HBK2 04 – DOOR PARTS

Written by

in

WGD9620HBK2 04 – DOOR PARTS

Products

PositionProduct
2W11338345 Whirlpool Wire Harness
3WP8534022 Whirlpool Screw
4W11701946-includeCORE Whirlpool Panel-Ui+Core
5W11310037 Whirlpool Retainer
6W11310036 Whirlpool Door Glass
7W11310035 Whirlpool Seal
8SCREW
9W11310039 Whirlpool Cover
10W11240283 Whirlpool Catch Assembly
11SCREW
12W11310038 Whirlpool Hinge
13SCREW, GROUNDING
14SCREW
15COVER, HINGE
16COVER, HANDLE
