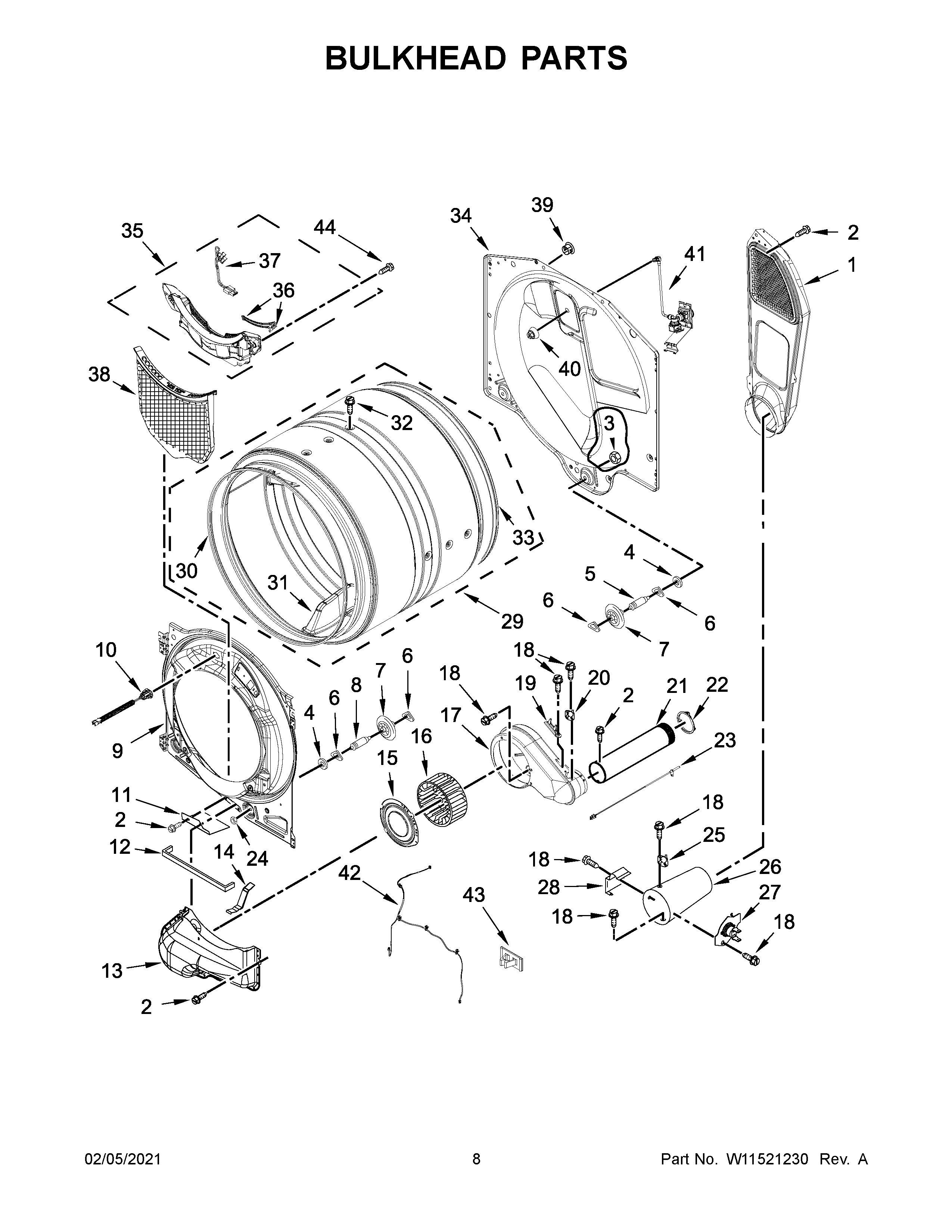

WGD9620HBK2 05 – BULKHEAD PARTS

Products

Position	Product
1	WPW10293765 Whirlpool Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	WPW10080190 Whirlpool Nut
4	W11236646 Whirlpool Washer Assembly
5	SHAFT
6	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7	WPW10314173 Whirlpool Dryer Drum Support Wheel
8	SHAFT
9	W10673491 Whirlpool Bulkhead Assembly
10	W11310048 Whirlpool Light
11	W11257251 Whirlpool Shield
12	W11676493 Whirlpool Seal Assembly
13	WPW10211896 Whirlpool Duct Lint
14	W10414388 Whirlpool Clip
15	W11688571 Whirlpool Collar
16	WP697772 Whirlpool Dryer Blower Wheel
17	WPW10211911 Whirlpool Housing
18	WP693995 Whirlpool Screw
19	FUSE-THRML
20	WP8577274 Whirlpool Dryer Thermistor
21	WPW10342188 Whirlpool Exhaust Pipe
22	WPW10344699 Whirlpool Collar
23	W11396709 Whirlpool Gas Inlet Thermostat
24	WPW10080210 Whirlpool Nut
25	THRMST-FIX
26	WP8573824 Whirlpool Funnel
27	WP8573713 Whirlpool Thermal Fuse
28	WP338906 Whirlpool Dryer Gas Sensor
29	W10541657 Whirlpool Drum Assembly
30	W11193479 Whirlpool Seal
31	W10280771 Whirlpool Drum Baffle
32	W10853898 Whirlpool Screw
33	280114 Whirlpool Dryer Drum Seal
34	W11299321 Whirlpool Bulkhead
35	HOUSNG-DRYER LINT
36	WP3387223 Whirlpool Electrode Assembly
37	WPW10298258 Whirlpool Wire Harness
38	SCREEN – LINT. ALPHA W/FELT
39	8529007 Whirlpool Plug
40	W11230609 Whirlpool Nozzle
41	W11216837 Whirlpool Valve
42	W11310028 Whirlpool Wire Harness
43	W11501419 Whirlpool Refrigerator Clip
44	WP3387230 Whirlpool Screw
