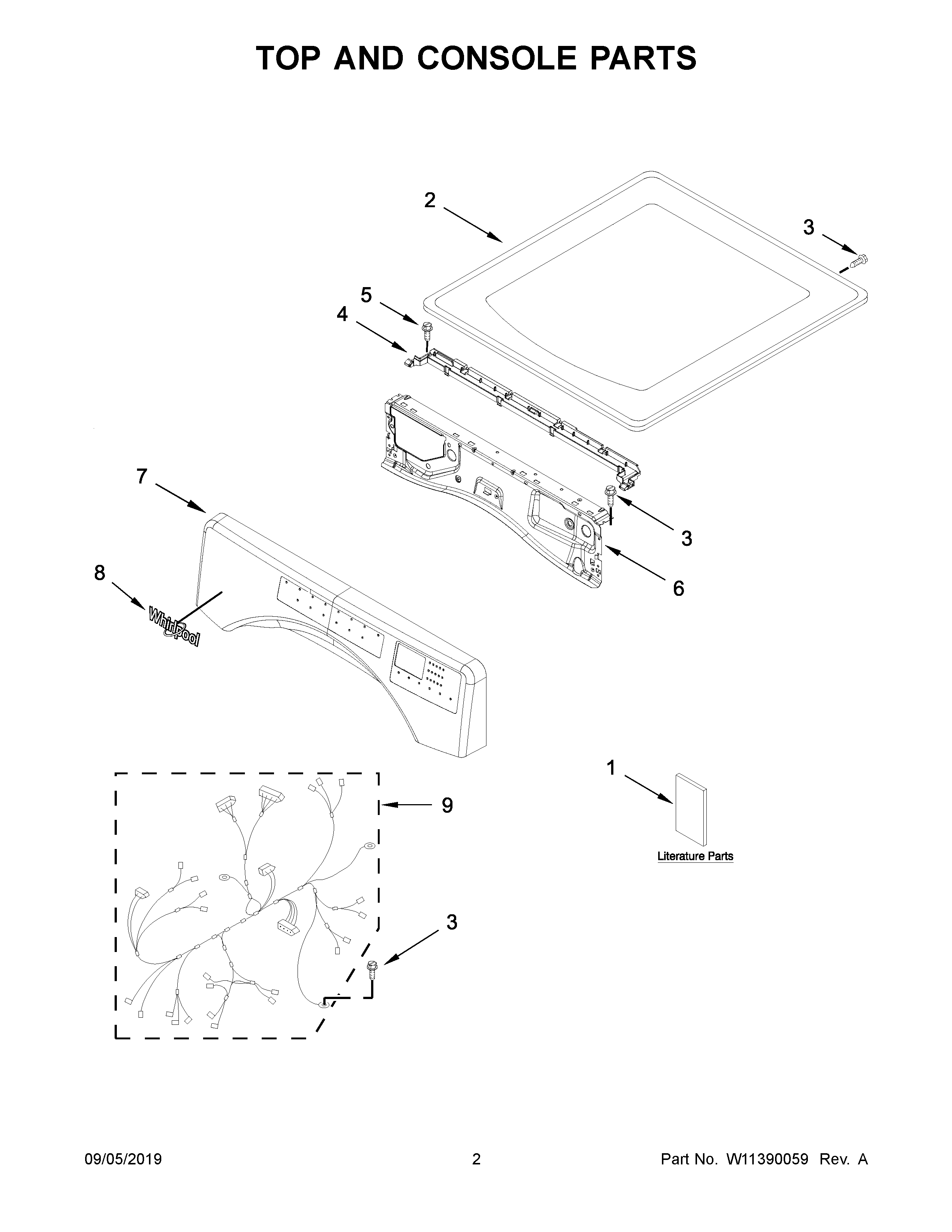

WGD9620HC1 02 – TOP AND CONSOLE PARTS

WGD9620HC1 02 – TOP AND CONSOLE PARTS

Written by

in

WGD9620HC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1DQUICK START GUIDE
1CWIRING DIAGRAM
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7AW11315728 Whirlpool Console
7W11310042 Whirlpool Console
8W11223753 Whirlpool Refrigerator Nameplate
9W11157861 Whirlpool Wire Harness
