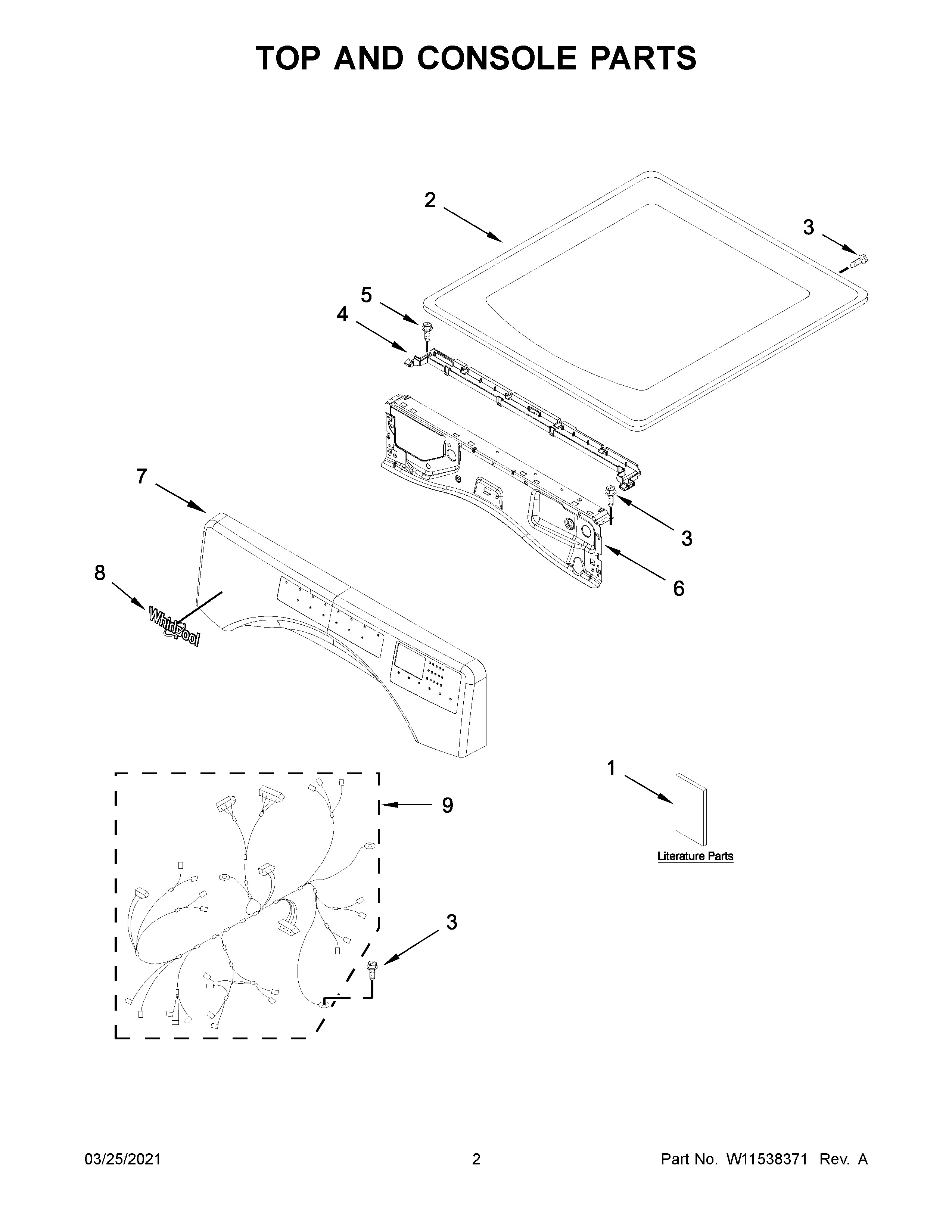

WGD9620HW3 02 – TOP AND CONSOLE PARTS

WGD9620HW3 02 – TOP AND CONSOLE PARTS

Written by

in

WGD9620HW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1CQUICK START GUIDE
1OWNERS MANUAL
1BWIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11310042 Whirlpool Console
7AW11315728 Whirlpool Console
8W11223753 Whirlpool Refrigerator Nameplate
9W11157861 Whirlpool Wire Harness
