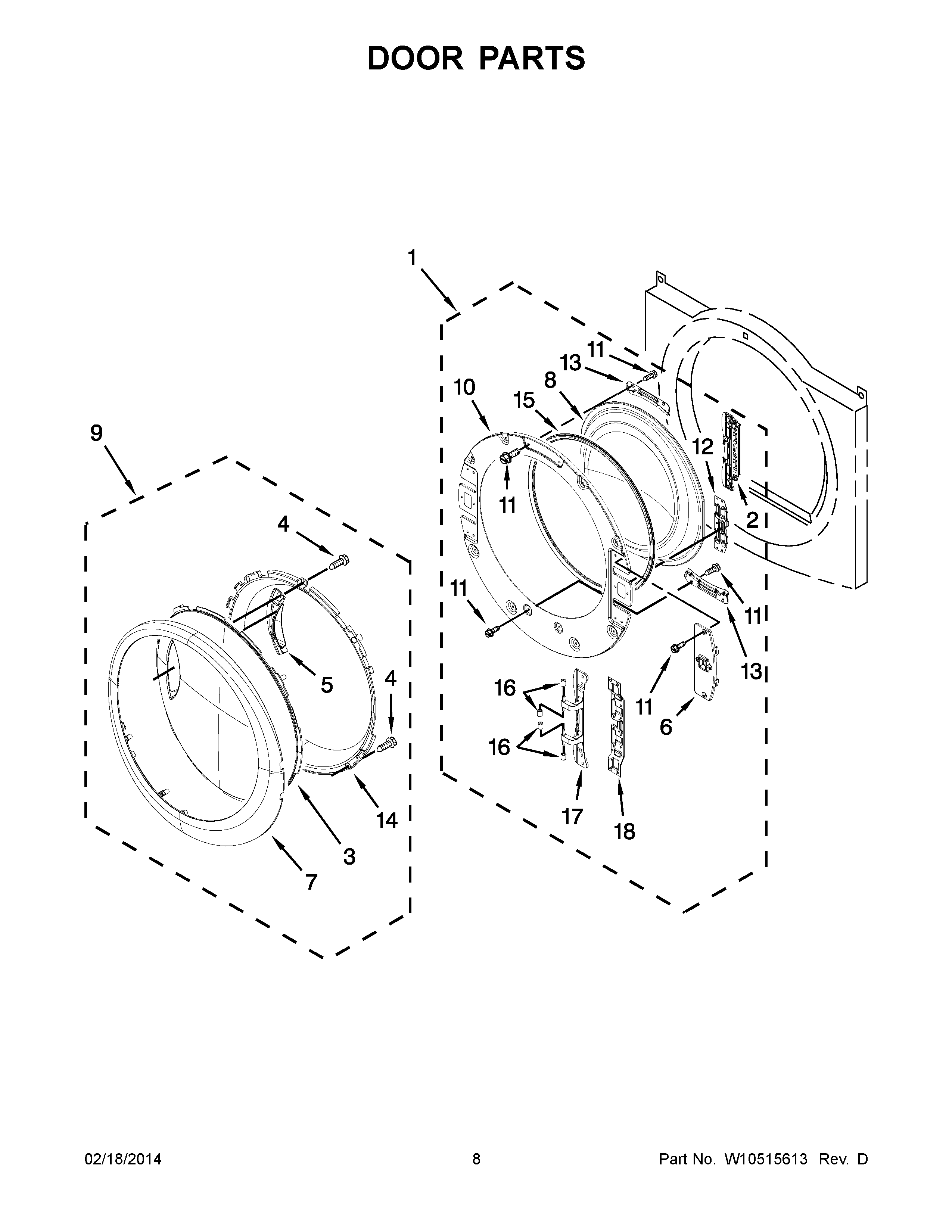

WGD96HEAC0 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	HINGE
3	SCREEN, DOOR
4	SCREW
5	W10208411 Whirlpool Handle
6	W10772469 Whirlpool Door Catch Cover
7	DOOR, TRIM RING
8	W11310036 Whirlpool Door Glass
9	ASSEMBLY, OUTER DOOR
10	DOOR, INNER
11	SCREW
13	W10208252 Whirlpool Retainer
14	DOOR INTERMEDIATE
15	WPW10208254 Whirlpool Catch
16	WPW10208398 Whirlpool Hinge Pin Cap
17	HINGE
18	WPW10208419 Whirlpool Plate
