WGD96HEAC1 01 – TOP AND CONSOLE PARTS
Written by
in

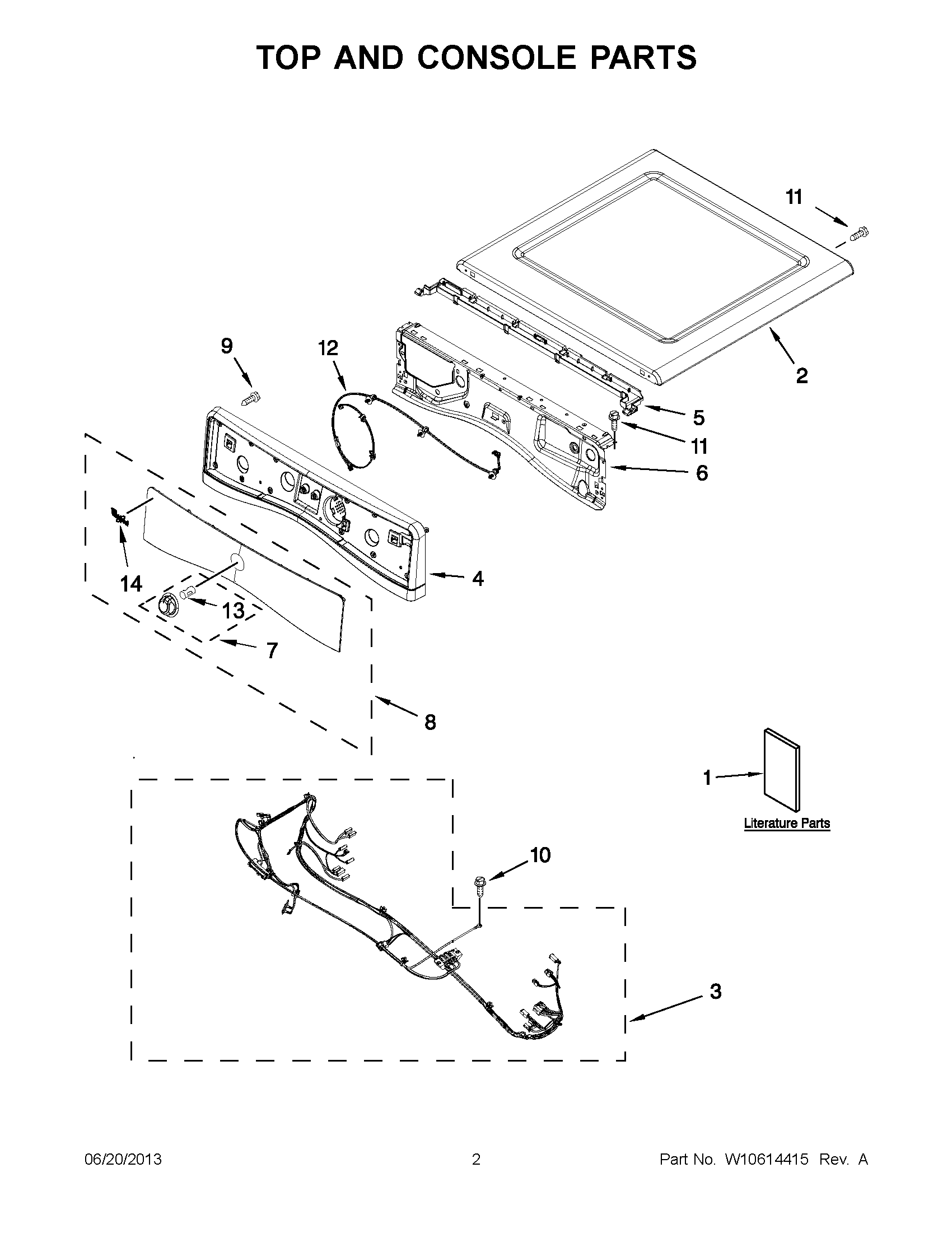

WGD96HEAC1 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
OWNERS MANUAL
1
WIRING DIAGRAM
1
TECH SHEET
1
INSTALLATION INSTRUCTIONS
2
WPW10316282 Whirlpool Top Assembly
2
WPW10460919 Whirlpool Top
2
WPW10208383 Whirlpool Top Panel
3
HARNESS, MAIN WIRING
4
PANEL, CONSOLE ASSEMBLY (SILVER)
4
WPW10463687 Whirlpool Console Assembly
4
WPW10446407 Whirlpool Console
5
WPW10653575 Whirlpool Channel
6
W11480682 Whirlpool Bracket
7
KNOB ASSEMBLY
8
WPW10446446 Whirlpool Control Panel
8
WPW10446445 Whirlpool Control Panel
8
W10446448 Whirlpool Control Panel
9
W11501418 Whirlpool Refrigerator Screw
10
WP693995 Whirlpool Screw
11
WP488729 Whirlpool Refrigerator Door Screw
12
W10837344 Whirlpool Wire Harness
13
WP8536939 Whirlpool Spring Clip
14
WPW10393264 Whirlpool Refrigerator Nameplate
14
W11178521 Whirlpool Dishwasher Nameplate
←
