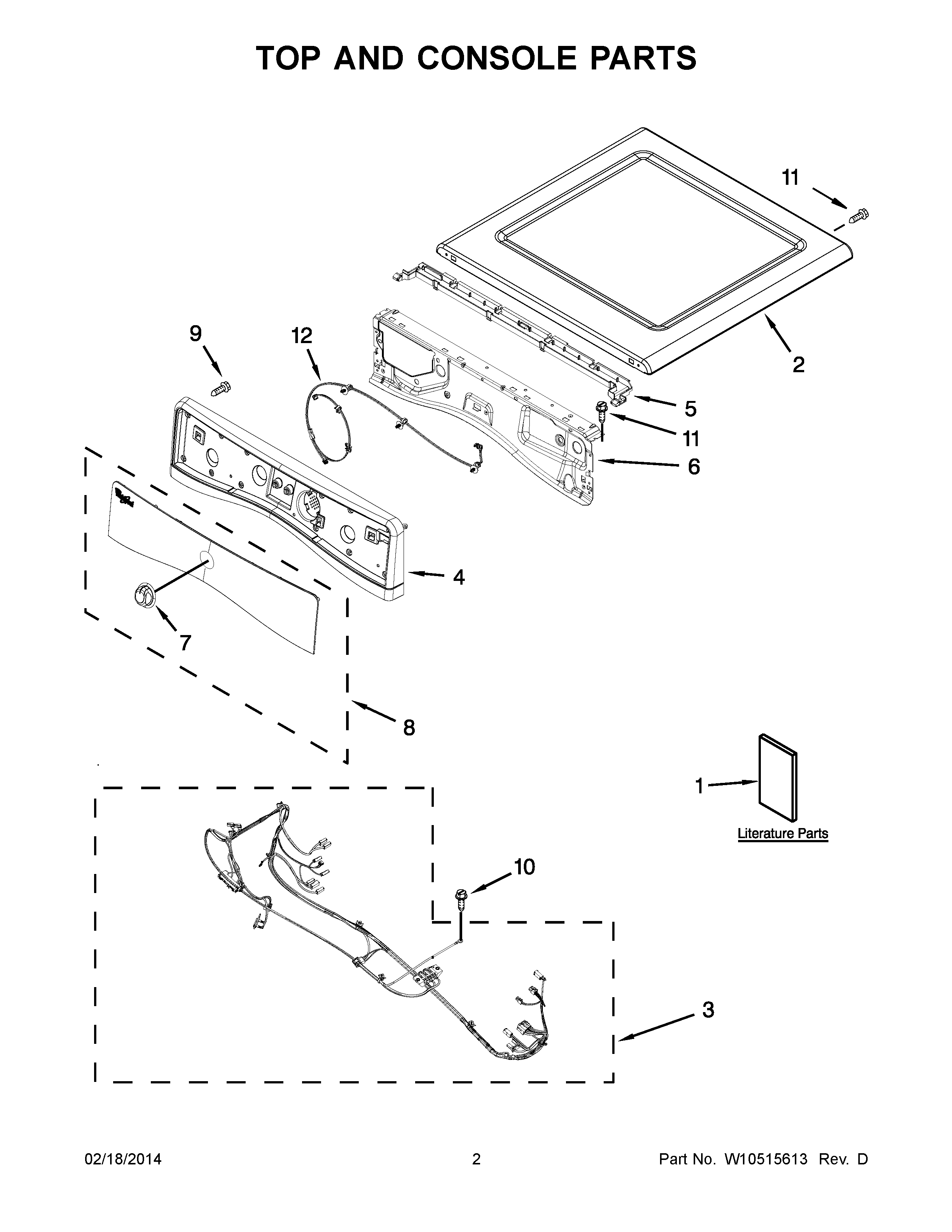

WGD96HEAU0 02 – TOP AND CONSOLE PARTS

WGD96HEAU0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD96HEAU0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1OWNERS MANUAL
1TECH SHEET
2WPW10208383 Whirlpool Top Panel
2WPW10316282 Whirlpool Top Assembly
2WPW10460919 Whirlpool Top
3HARNESS, MAIN WIRING
4WPW10446407 Whirlpool Console
4PANEL, CONSOLE ASSEMBLY (SILVER)
4WPW10463687 Whirlpool Console Assembly
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8WPW10446446 Whirlpool Control Panel
8WPW10446445 Whirlpool Control Panel
8W10446448 Whirlpool Control Panel
9W10853898 Whirlpool Screw
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10443062 Whirlpool Wire Harness
