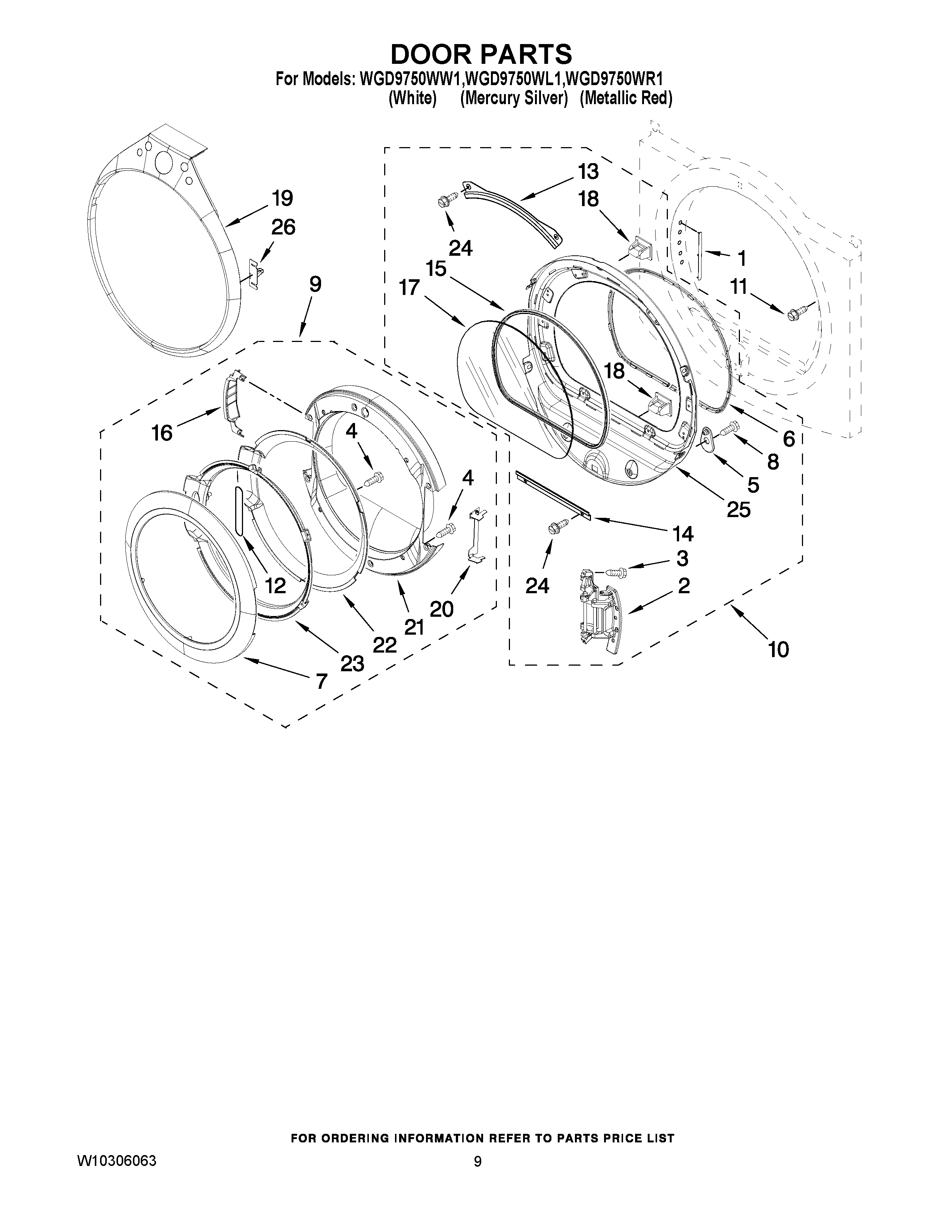

WGD9750WL1 05 – DOOR PARTS

Products

Position	Product
1	WPW10085230 Whirlpool Label Assembly
1	W10085210 Whirlpool Label
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Screw-Plug
6	WPW10139457 Whirlpool Door Seal
7	HANDLE, RING DOOR
8	Screw, 1/4-20 x 1/2
9	DOOR ASSEMBLY (OUTER)
10	INNER DOOR ASSEMBLY
11	WP355515 Whirlpool Screw
12	W10121607 Whirlpool Cushion
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Cover-Hinge, Stationary (LH)
17	WP8566254 Whirlpool Window Assembly
18	279570 Whirlpool Dryer Door Latch Kit
19	TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (SILVER)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (RED)
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	DOOR SCREEN
24	WP3373329 Whirlpool Dishwasher Screw
25	Door Assembly (Inner) (Includes Illus. 12 & 18)
26	WPW10129065 Whirlpool Clip
