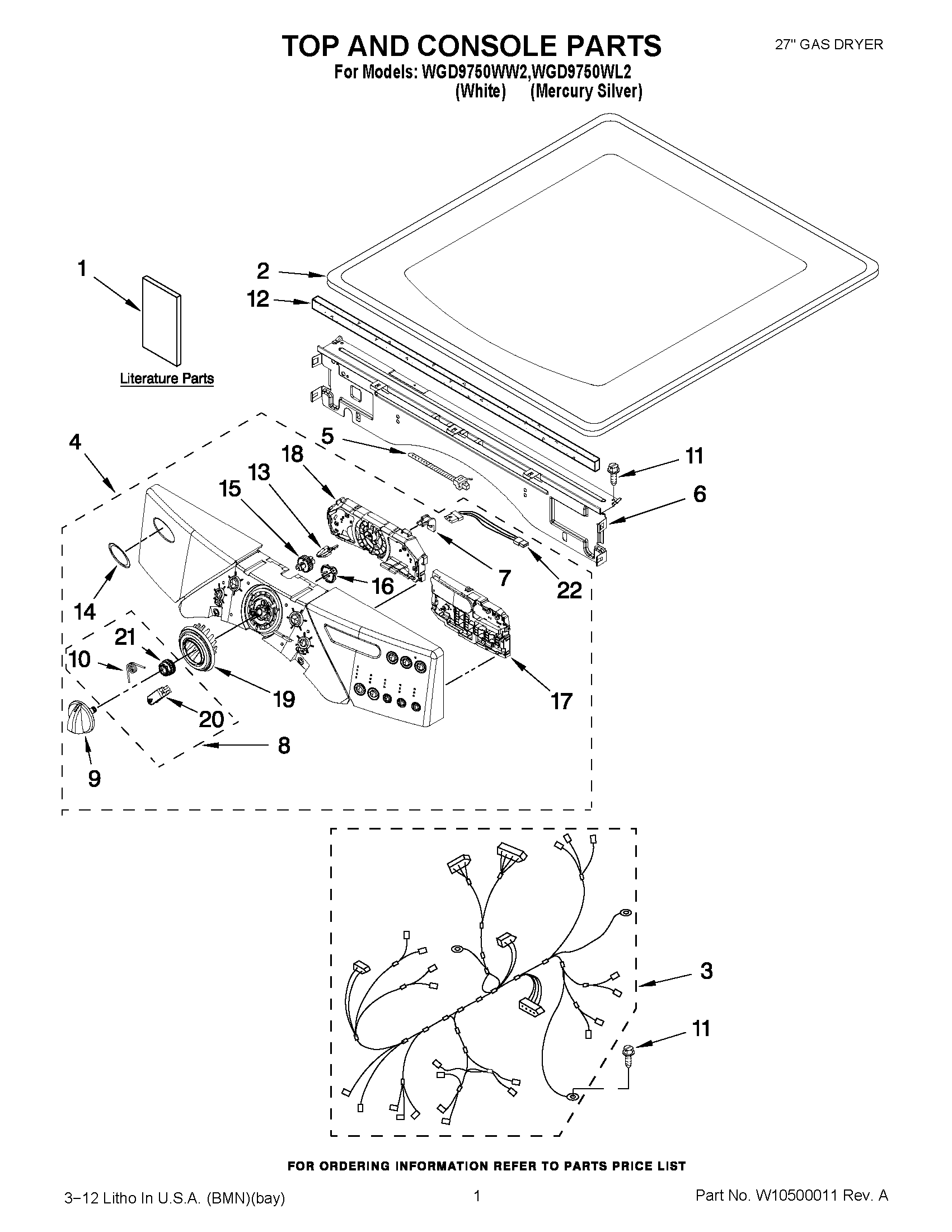

WGD9750WL2 01 – TOP AND CONSOLE PARTS

WGD9750WL2 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9750WL2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2TOP (MERCURY)
2Top (White)
3W10111069 Whirlpool Wire Harness
4PANEL, CONSOLE ASSEMBLY (SILVER)
4PANEL, CONSOLE ASSEMBLY (WHITE)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
9W10190685 Whirlpool Knob Assembly
10Knob, Spring (Service Only With Item 28)
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14Medallion
15Encoder-Wheel
16Retainer-Snap
17USER-INTERFACE (RIGHT)
18USER-INTERFACE CENTER (INCLUDES ILLUS: 13.)
19W10250089 Whirlpool Ring
20Rast, Wheel Assy. (Service Only With Item. 28)
21DETENT WHEEL (SERVICE ONLY WITH ITEM. 28 )
22W10242906 Whirlpool Wire Harness
