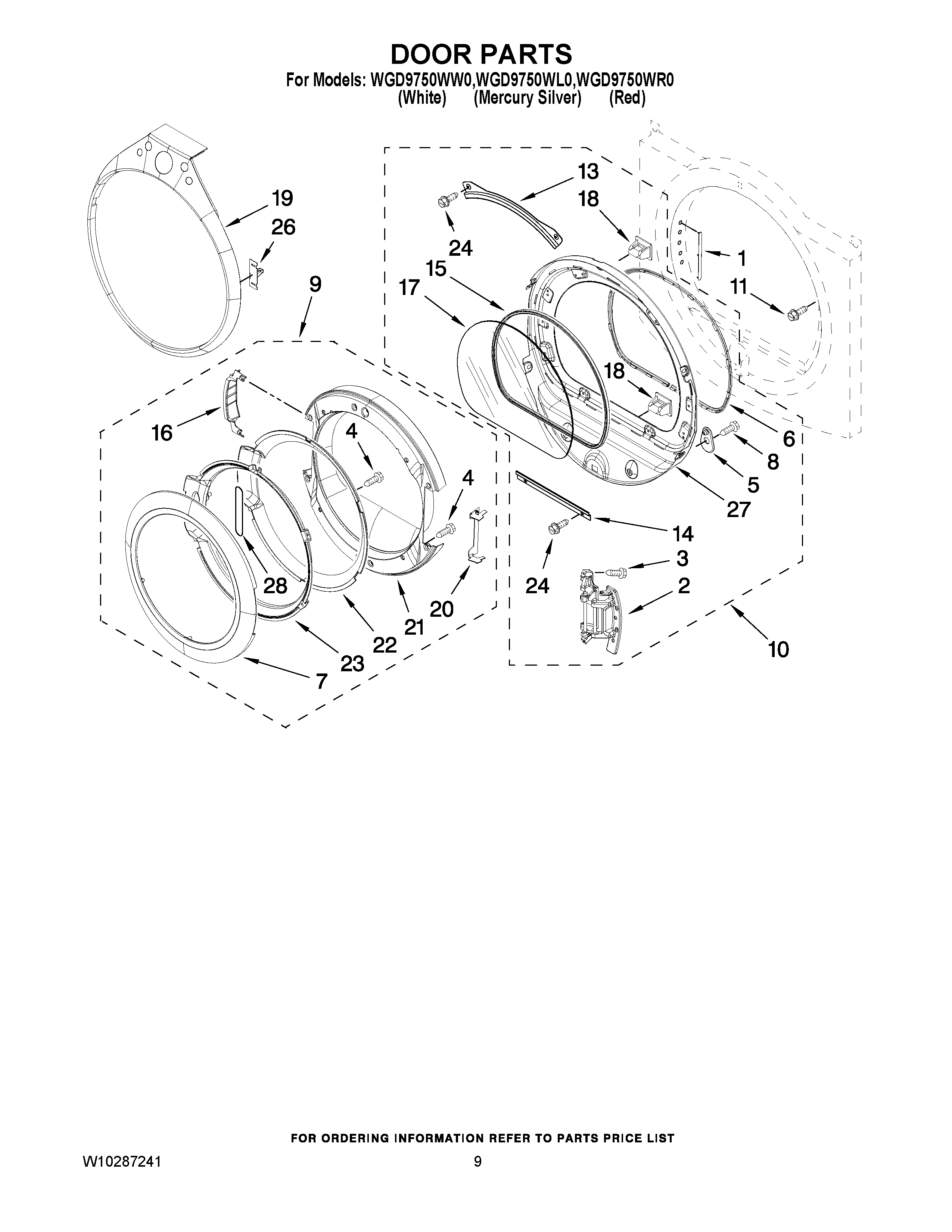

WGD9750WW0 05 – DOOR PARTS

Products

Position	Product
1	W10085210 Whirlpool Label
1	WPW10085230 Whirlpool Label Assembly
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Screw-Plug
6	WPW10139457 Whirlpool Door Seal
7	HANDLE, RING DOOR
8	Screw, 1/4-20 x 1/2
9	DOOR ASSEMBLY (OUTER)
10	INNER DOOR ASSEMBLY
11	WP355515 Whirlpool Screw
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Cover-Hinge, Stationary (LH)
17	WP8566254 Whirlpool Window Assembly
18	279570 Whirlpool Dryer Door Latch Kit
19	TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (SILVER)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (RED)
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	DOOR SCREEN
24	WP3373329 Whirlpool Dishwasher Screw
26	WPW10129065 Whirlpool Clip
27	Door Assembly (Inner) (Includes Illus. 12 & 18)
28	W10121607 Whirlpool Cushion
