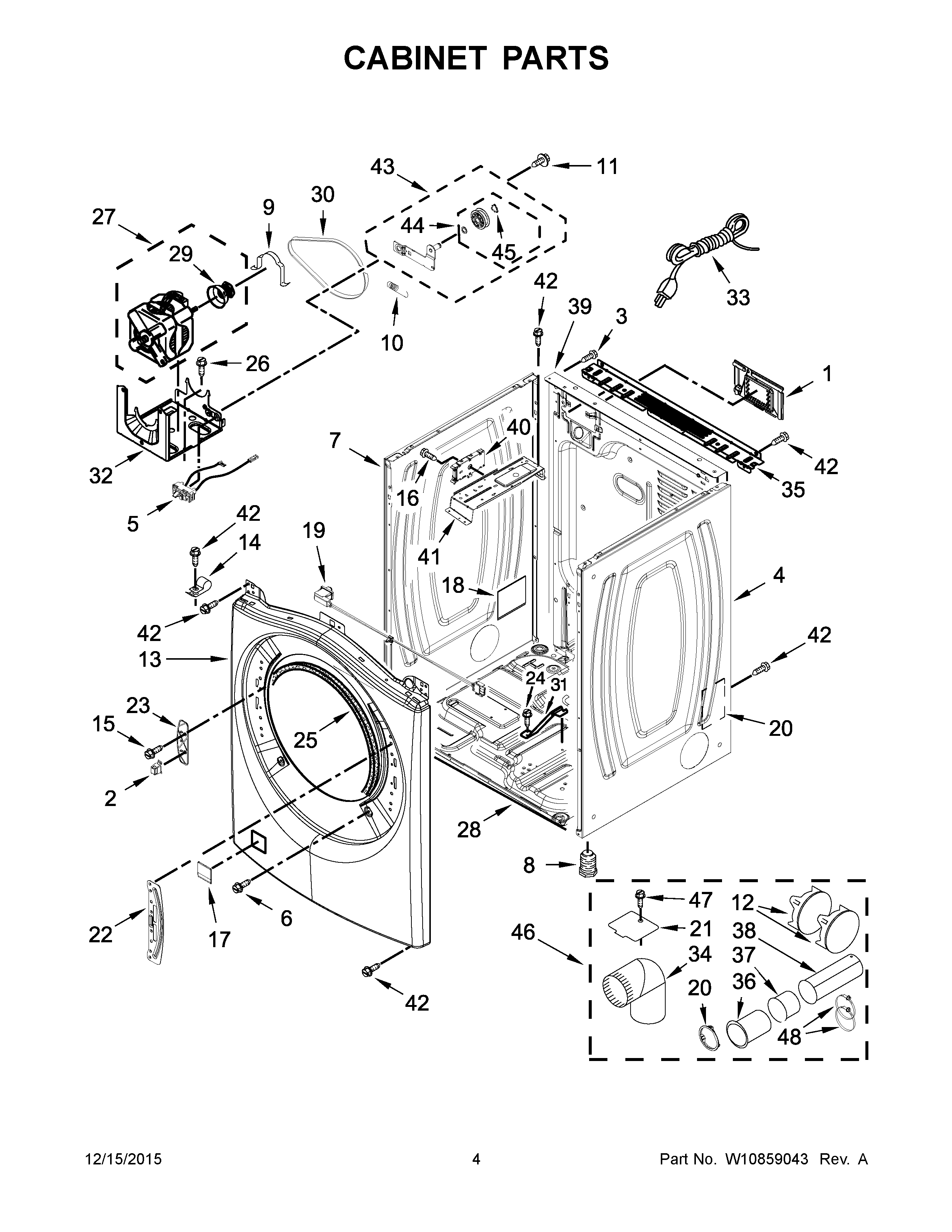

WGD97HEDC1 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2W11240283 Whirlpool Catch Assembly
3W10850756 Whirlpool Screw
4CPANEL, SIDE (R.H.) (BLACK)
4BPANEL, SIDE (R.H.) (SILVER)
4AW11321018 Whirlpool Panel
4W11310043 Whirlpool Panel
5W11662087 Whirlpool Dryer Switch
6WP308685 Whirlpool Microwave Screw
7AW11315726 Whirlpool Panel Assembly
7W11233548 Whirlpool Panel
7BWPW10468499 Whirlpool Panel
7CW10628249 Whirlpool Panel Assembly
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13WPW10363953 Whirlpool Dishwasher Panel
13AWPW10463309 Whirlpool Dishwasher Panel
13CW10433063 Whirlpool Panel
13BWPW10460923 Whirlpool Panel
143978776 Whirlpool Bracket
15SCREW
16WP489463 Whirlpool Refrigerator Screw
17BPLUG, FRONT PANEL (SILVER)
17C8573008 Whirlpool Plug
17AW10391496 Whirlpool Plug
17W10811916 Whirlpool Plug
18W10123956 Whirlpool Sound Absorber
19WPW10350906 Whirlpool Door Switch
20W11409002 Whirlpool Pad
21WPW10354249 Whirlpool Cover
22BRACKET, DOOR HINGE
23WPW10208250 Whirlpool Strike
24WP693995 Whirlpool Screw
25WP3387242 Whirlpool Seal
26SCREW
27MOTOR-DRVE
28W11215531 Whirlpool Base
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32W11481730 Whirlpool Bracket
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35WPW10208382 Whirlpool Dryer Bracket
36PIPE, EXHAUST (MEDIUM)
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10487430 Whirlpool Rear Panel
40W10849080 Whirlpool Electronic Control Board + Core
41BRACKET, CONTROL
42WP488729 Whirlpool Refrigerator Door Screw
43W10837240 Whirlpool Dryer Idler Pulley
44279640 Whirlpool Dryer Idler Pulley Kit
45WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
46W10704365 Whirlpool Dryer Exhaust Kit
48WP696392 Whirlpool Hose Clamp
