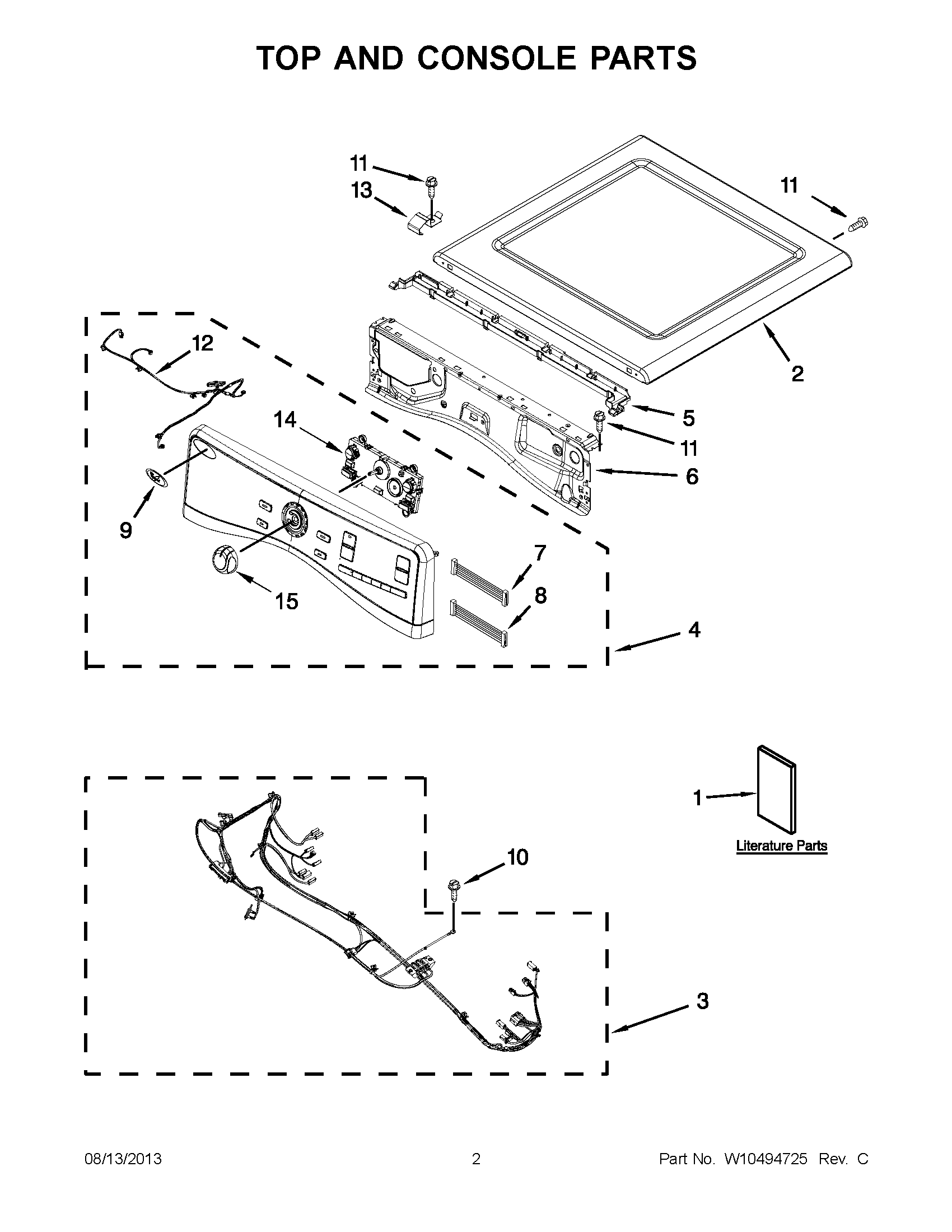

WGD97HEXL3 01 – TOP AND CONSOLE PARTS

WGD97HEXL3 01 – TOP AND CONSOLE PARTS

Written by

in

WGD97HEXL3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1WIRING DIAGRAM
1TECH SHEET
1INSTALLATION INSTRUCTIONS
2WPW10208383 Whirlpool Top Panel
2WPW10316282 Whirlpool Top Assembly
3W10441591 Whirlpool Wire Harness
4PANEL, CONSOLE (SILVER)
4PANEL, CONSOLE (WHITE)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10450060 Whirlpool Wire
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
