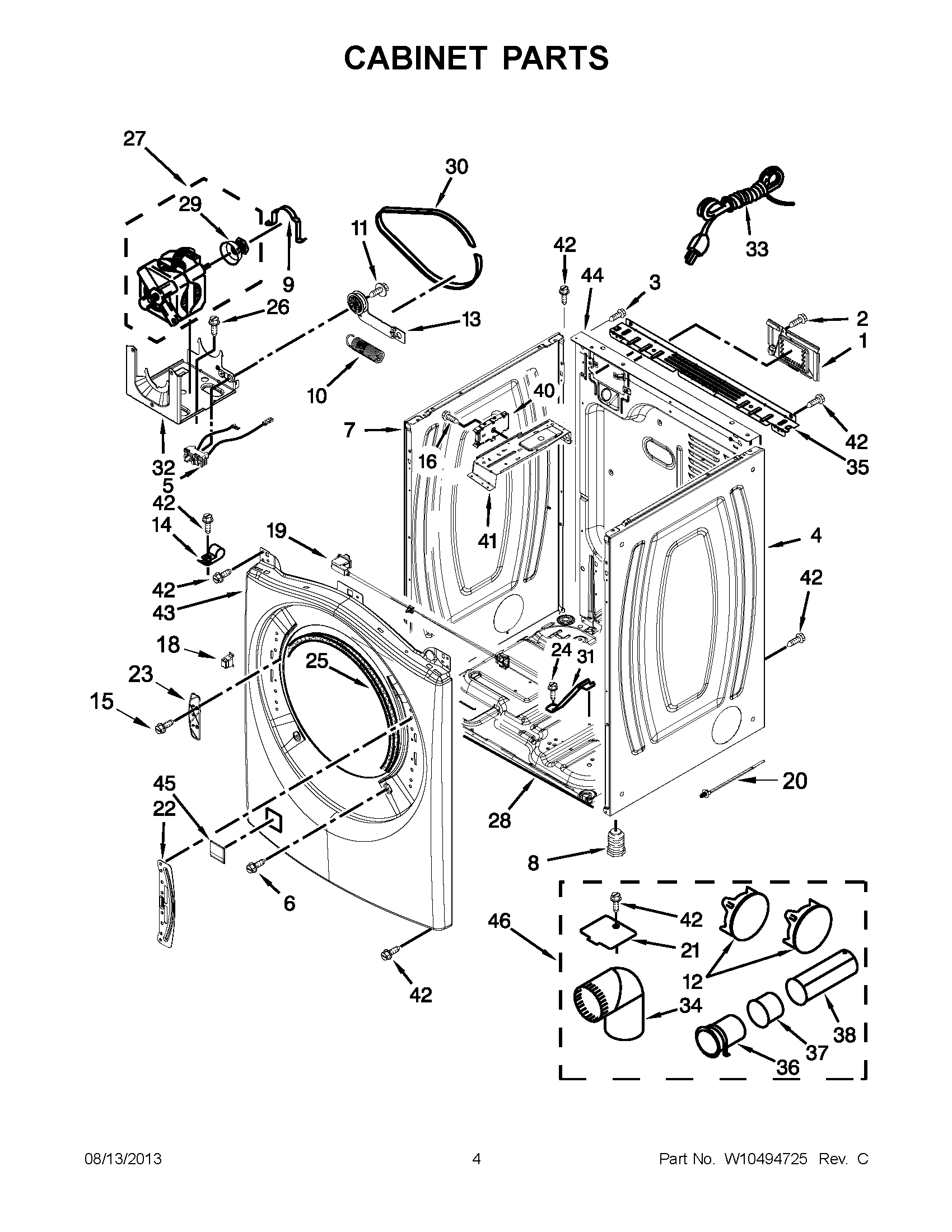

WGD97HEXL3 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WP3390631 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W11310043 Whirlpool Panel
4	PANEL, SIDE (R.H.) (SILVER)
5	W10847984 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
7	WPW10468499 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W10837240 Whirlpool Dryer Idler Pulley
14	3978776 Whirlpool Bracket
15	SCREW
16	WP90767 Whirlpool Screw
18	W11240283 Whirlpool Catch Assembly
19	W10318609 Whirlpool Dryer Door Switch
20	WPW10339879 Whirlpool Wire Tie
21	WPW10354249 Whirlpool Cover
22	BRACKET, DOOR HINGE
23	WPW10208250 Whirlpool Strike
24	WP693995 Whirlpool Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	279787 Whirlpool Dryer Drive Motor
28	W11215531 Whirlpool Base
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11222083 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
40	WPW10378252-includeCORE Whirlpool WPW10378252 Refrigerator Electronic Control Board + Core
41	BRACKET, CONTROL
42	WP488729 Whirlpool Refrigerator Door Screw
43	FRONT PANEL (INCLUDE ITEM, 25. ) (WHITE)
43	WPW10316296 Whirlpool Panel
44	W10487430 Whirlpool Rear Panel
45	PLUG, FRONT PANEL (SILVER)
45	W10811916 Whirlpool Plug
46	W10323246 Whirlpool Dryer Vent Kit 4-Way
