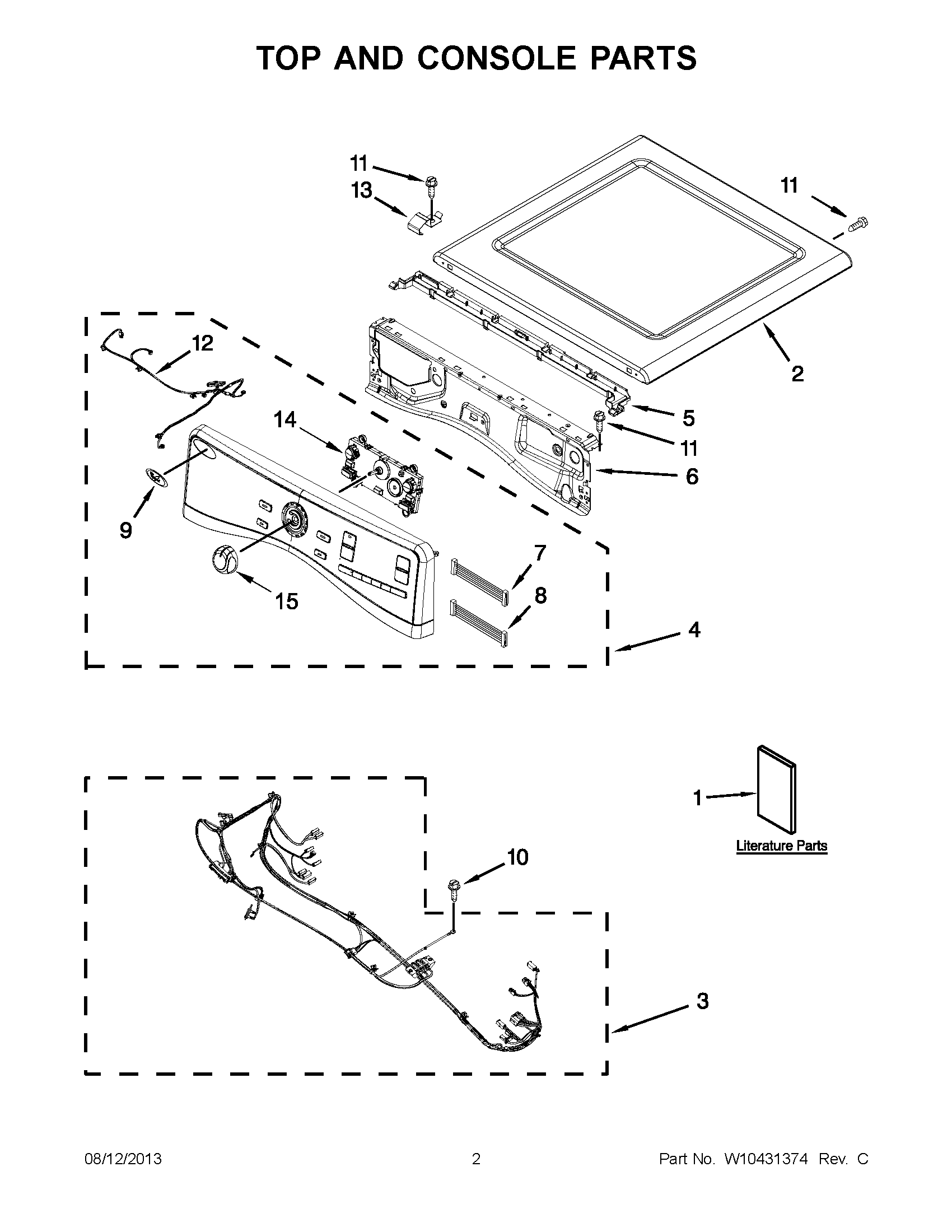

WGD97HEXR1 01 – TOP AND CONSOLE PARTS

WGD97HEXR1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD97HEXR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1WIRING DIAGRAM
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2TOP (RED)
2WPW10316282 Whirlpool Top Assembly
2WPW10208383 Whirlpool Top Panel
3W10357657 Whirlpool Wire Harness
4WPW10352485 Whirlpool Console
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (SILVER)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10267832 Whirlpool Wire
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
