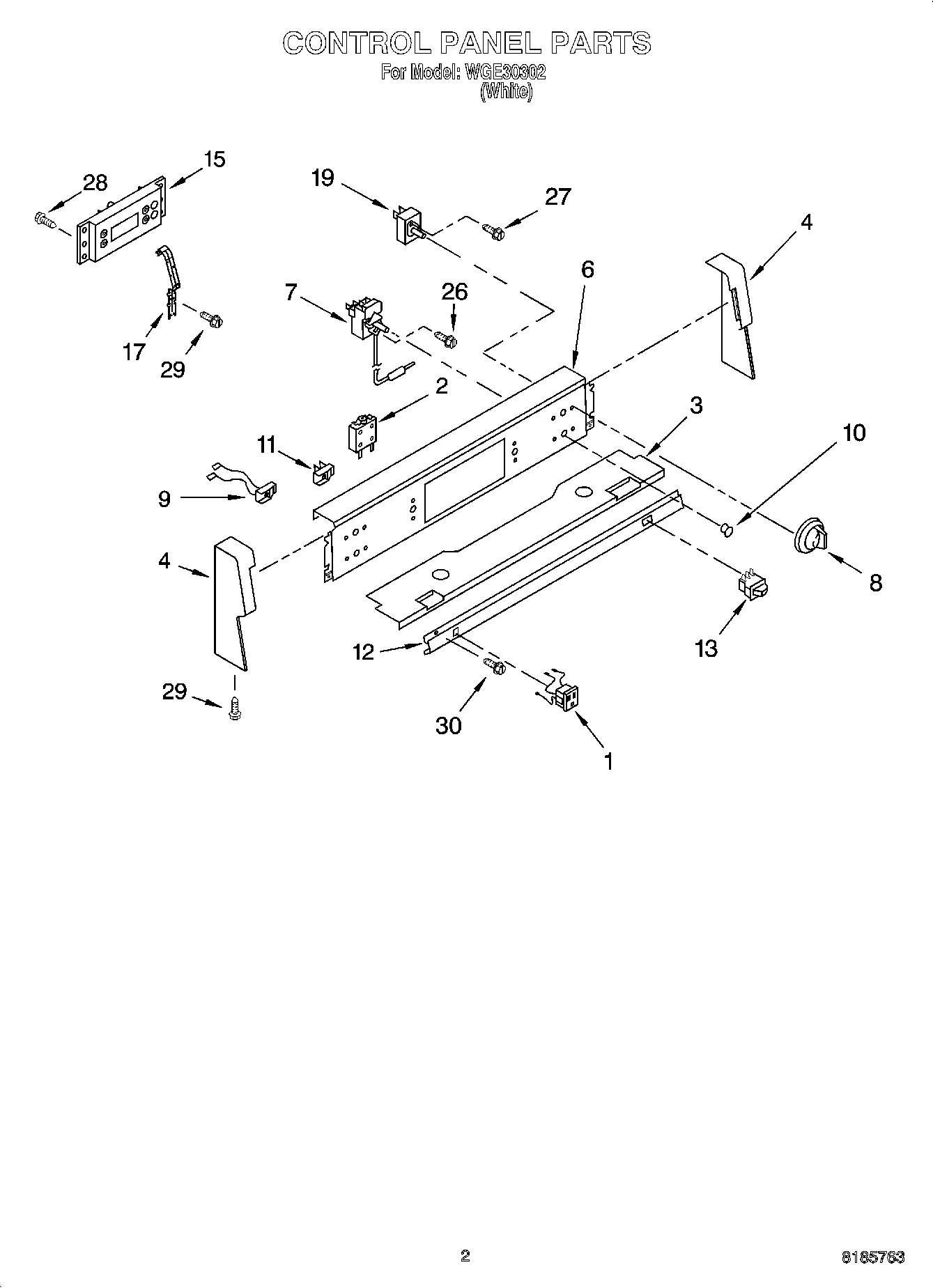

WGE30302 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Outlet, Untimed
2Breaker, 15 Amp
3Base, Console
4End Cap (Left)
4End Cap (Right)
6Panel, Control
7Thermostat
8WP9752405FW Whirlpool Knob
9Light, Indicator (Oven – Thermostat)
10WP9750343 Whirlpool Light Lens
11Light, Indicator (Surface Unit (2))
12Trim Strip
13Switch, Oven Light
15Timer
17Bracket, Timer
19WP9750641 Whirlpool Infinite Switch
19WP9750638 Whirlpool Infinite Switch
26Screw (2)
27WP3400882 Whirlpool Screw
28Screw (4) 10 x 1/2
29WP4159387 Whirlpool Compactor Screw
30WP3400832 Whirlpool Screw
