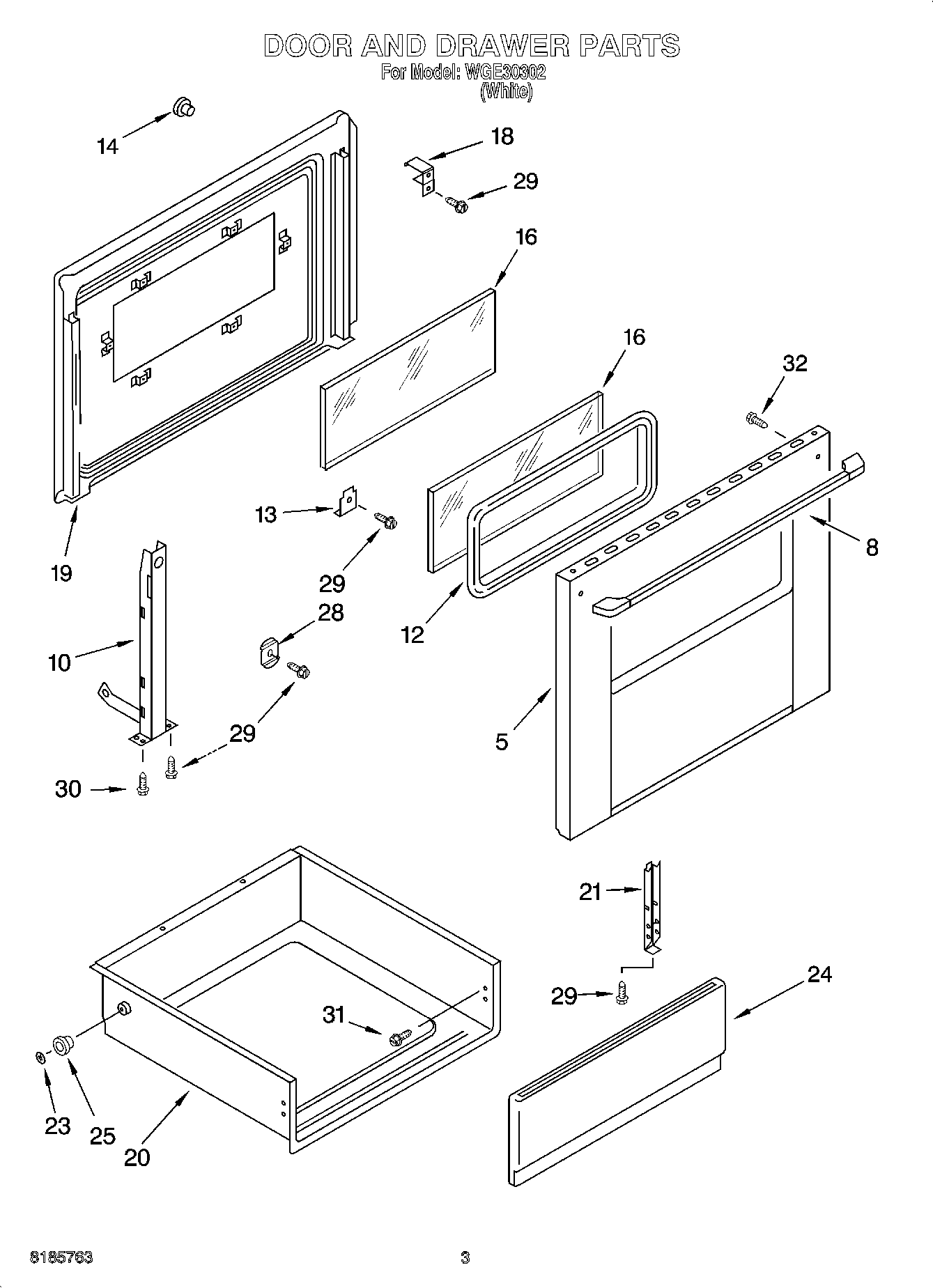

WGE30302 03 – DOOR AND DRAWER PARTS

Products

Position	Product
5	Panel, Door
8	Handle, Door
10	Hinge, Door R or L
12	Gasket, glass
13	Retainer, Glass (4)
14	238614 Whirlpool Bumper Hinge
16	Inner Glass, Clear
18	Retainer, Glass
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
23	WP90296 Whirlpool Clip
24	Front, Drawer (White)
25	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
29	WP4159387 Whirlpool Compactor Screw
30	Back Splash (Screw (4) 10AB x 1/2“)
31	Screw (4) 10 x 1/2
32	WPW10001180 Whirlpool Refrigerator Screw
