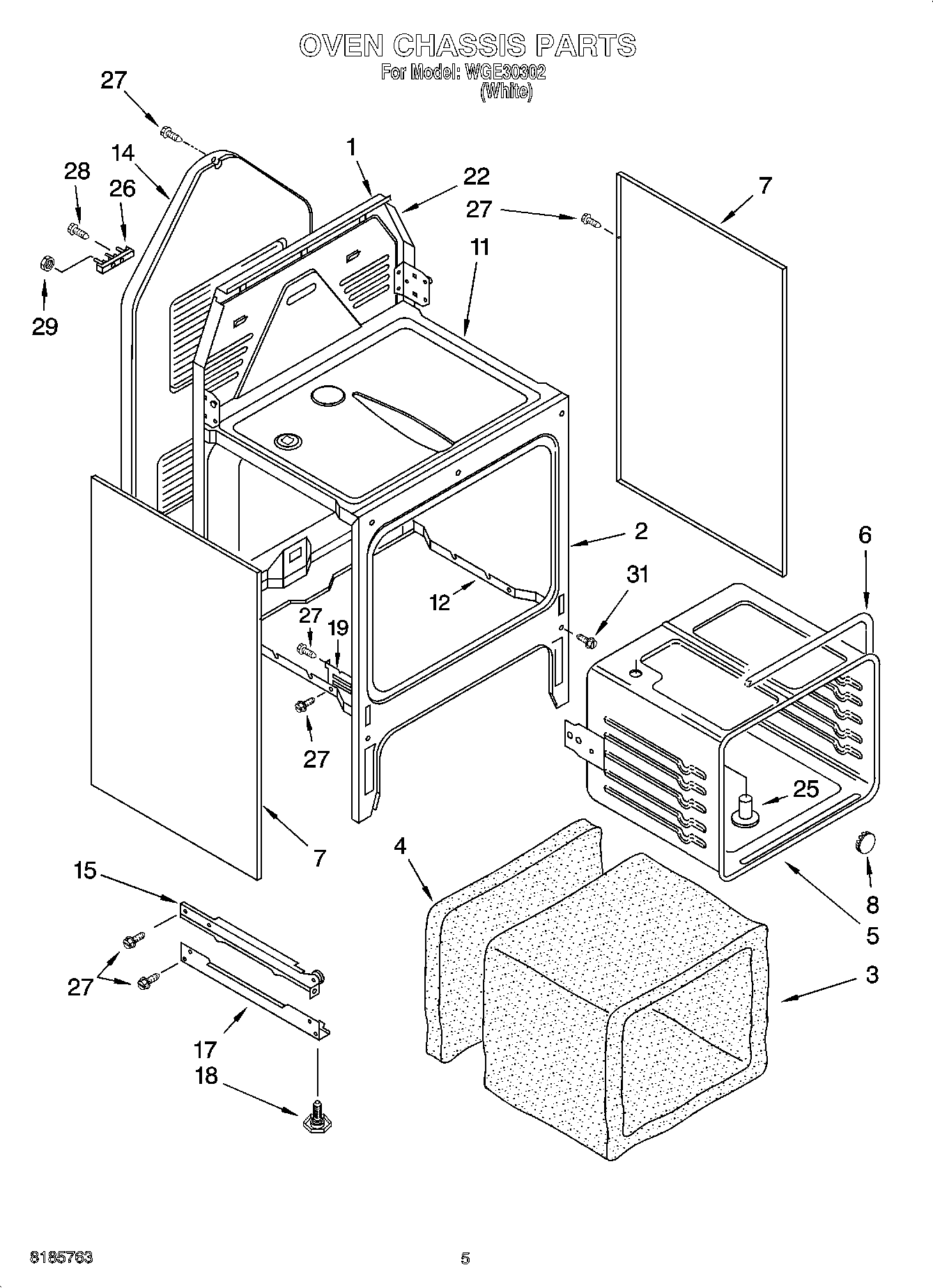

WGE30302 04 – OVEN CHASSIS PARTS

Products

PositionProduct
1Main Chassis, Back
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Body, Side (White)
8Button, Plug
11Burner Box
12Oven Bottom
14Panel, Rear
15Rail, Drawer (Right)
15Drawer Rail, Left
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
22Hinge, Cktp.-Left
22Hinge, Cktp.-Right
25Vent Tube
26WP8203546 Whirlpool Terminal Block
27WP4159387 Whirlpool Compactor Screw
28Screw, (2) 10-16 x 1
29WP112432 Whirlpool Nut Assembly
31Screw, (2)
