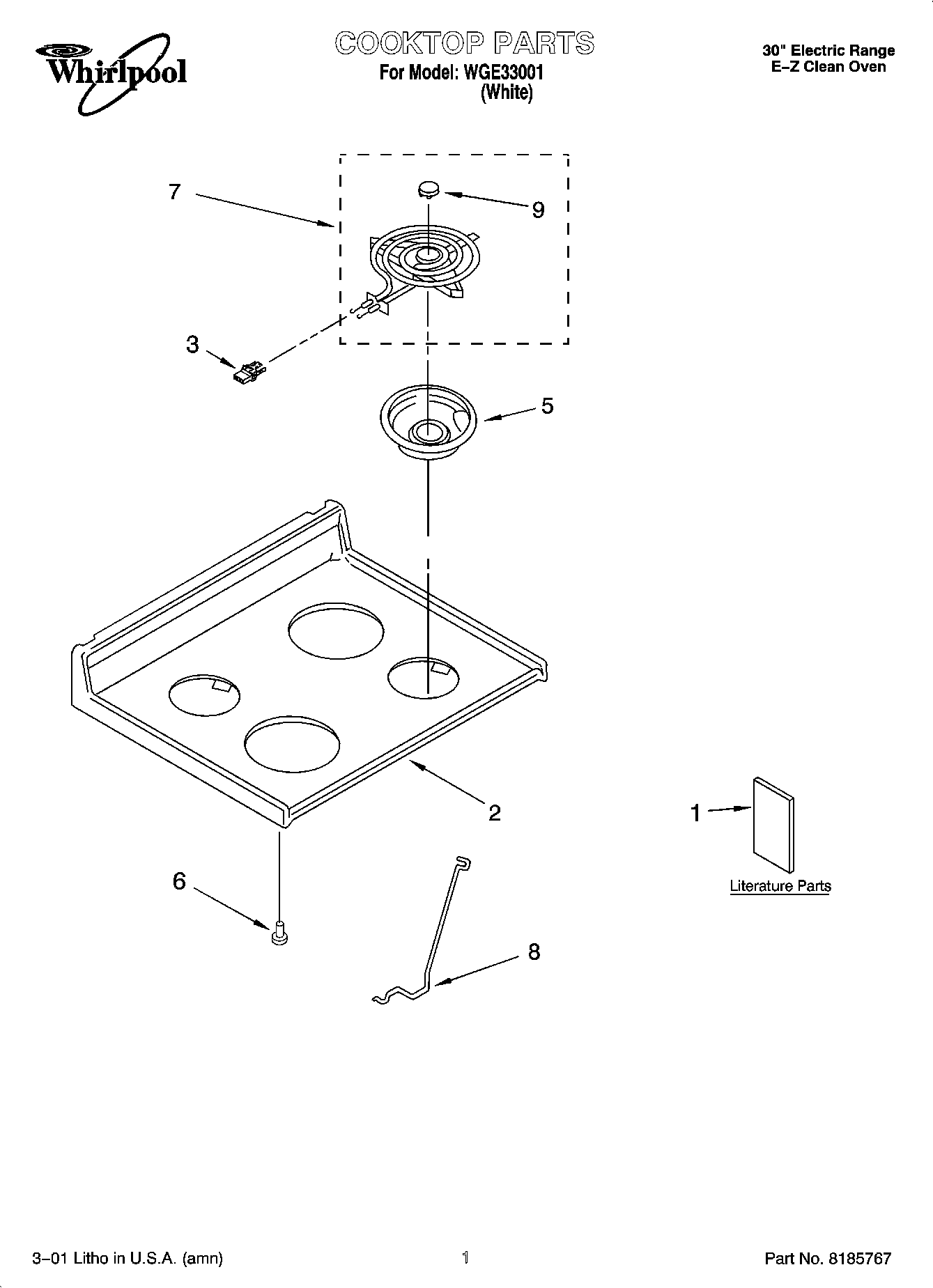

WGE33001 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Guide, Use & Care)
1Literature Parts (Installation Instructions)
1WPL LIT9752768
1Literature Parts (Installation Instructions)
1WPL LIT9752776
2Cooktop, Coil
3Receptacle, Clip
3WP313808 Whirlpool Screw
5WPW10290350 Whirlpool Stove Drip Bowl
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 6“ LR (Accu Simmer))
7Element, Surface (Coil, 8“ LF-RR)
7Element, Surface (Coil, 6“ RF)
8Cooktop Rod
9Medallion, (1) (Accu-Simmer)
9Medallion, (4)
