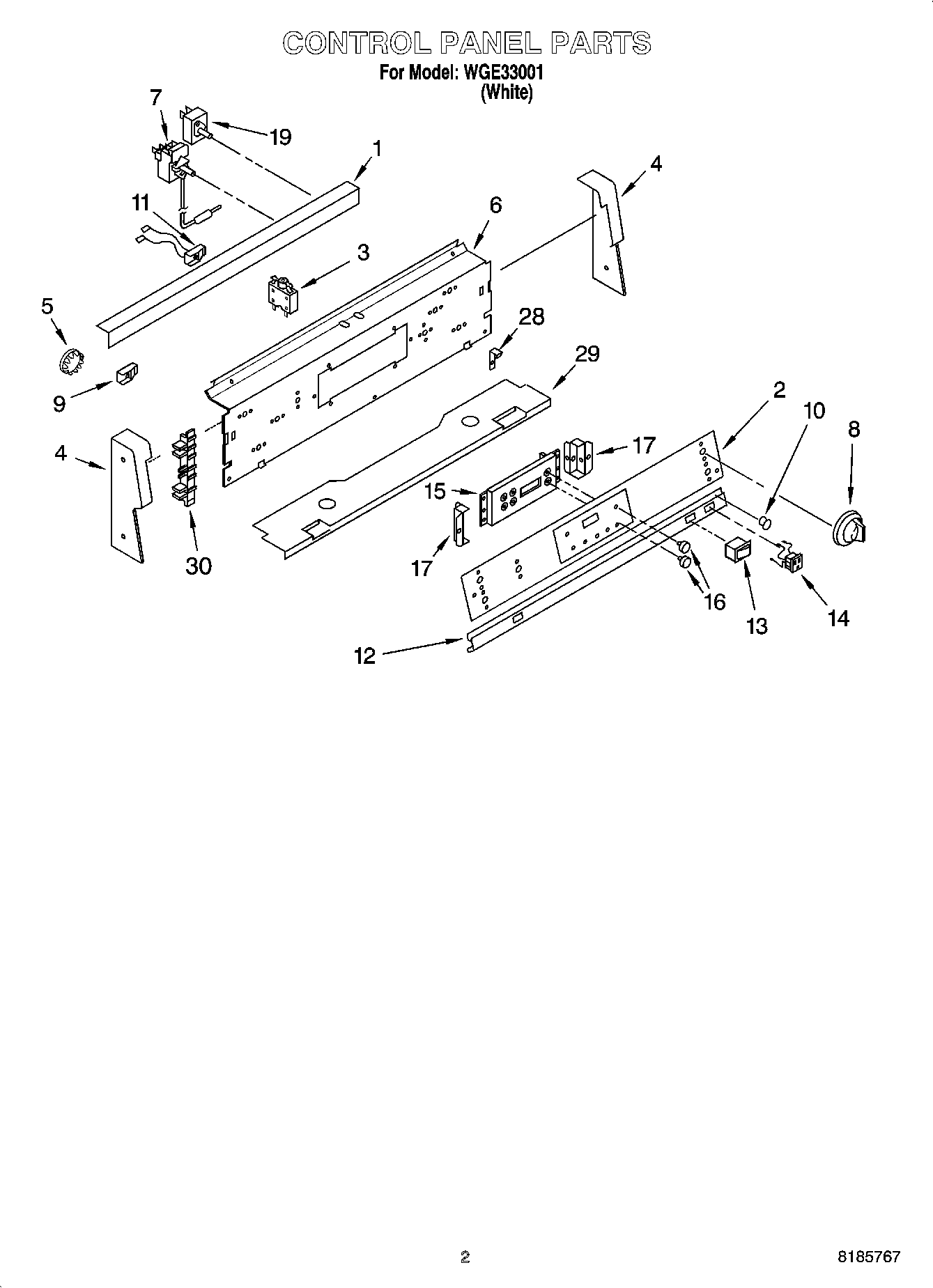

WGE33001 02 – CONTROL PANEL PARTSadmin2025-04-26T11:06:50+00:00WGE33001 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Lamp Cover |
| 2 | Console-Glass (Control Panel) |
| 3 | Breaker, 15 Amp |
| 4 | End Cap (Black, Right) |
| 4 | End Cap (Black, Left) |
| 5 | Button, Plug |
| 5 | Button Plug (8 mm (2)) |
| 6 | Panel, Control |
| 6 | Panel, Control (Screw, (2) 8 x 3/8) |
| 7 | Thermostat |
| 8 | Knobs, Control (4) (Black) |
| 9 | Light, Indicator (Surface Unit (2)) |
| 10 | WP9750343 Whirlpool Light Lens |
| 11 | Light, Indicator (Oven - Thermostat) |
| 12 | Trim Strip |
| 13 | Switch, Oven Light |
| 14 | Outlet, Untimed |
| 15 | Spacer, Timer |
| 15 | Timer |
| 16 | Knob, Timer (17) (Black) |
| 17 | WPL 9753304 |
| 19 | WP9750646 Whirlpool Infinite Switch |
| 19 | WP9750643 Whirlpool Infinite Switch |
| 19 | WP3400882 Whirlpool Screw |
| 19 | Screw (2) |
| 28 | WPL 9753017 |
| 29 | Base, Console |
| 29 | WP3400832 Whirlpool Screw |
| 29 | WP4159387 Whirlpool Compactor Screw |
| 30 | Insert (2) (Black) |
