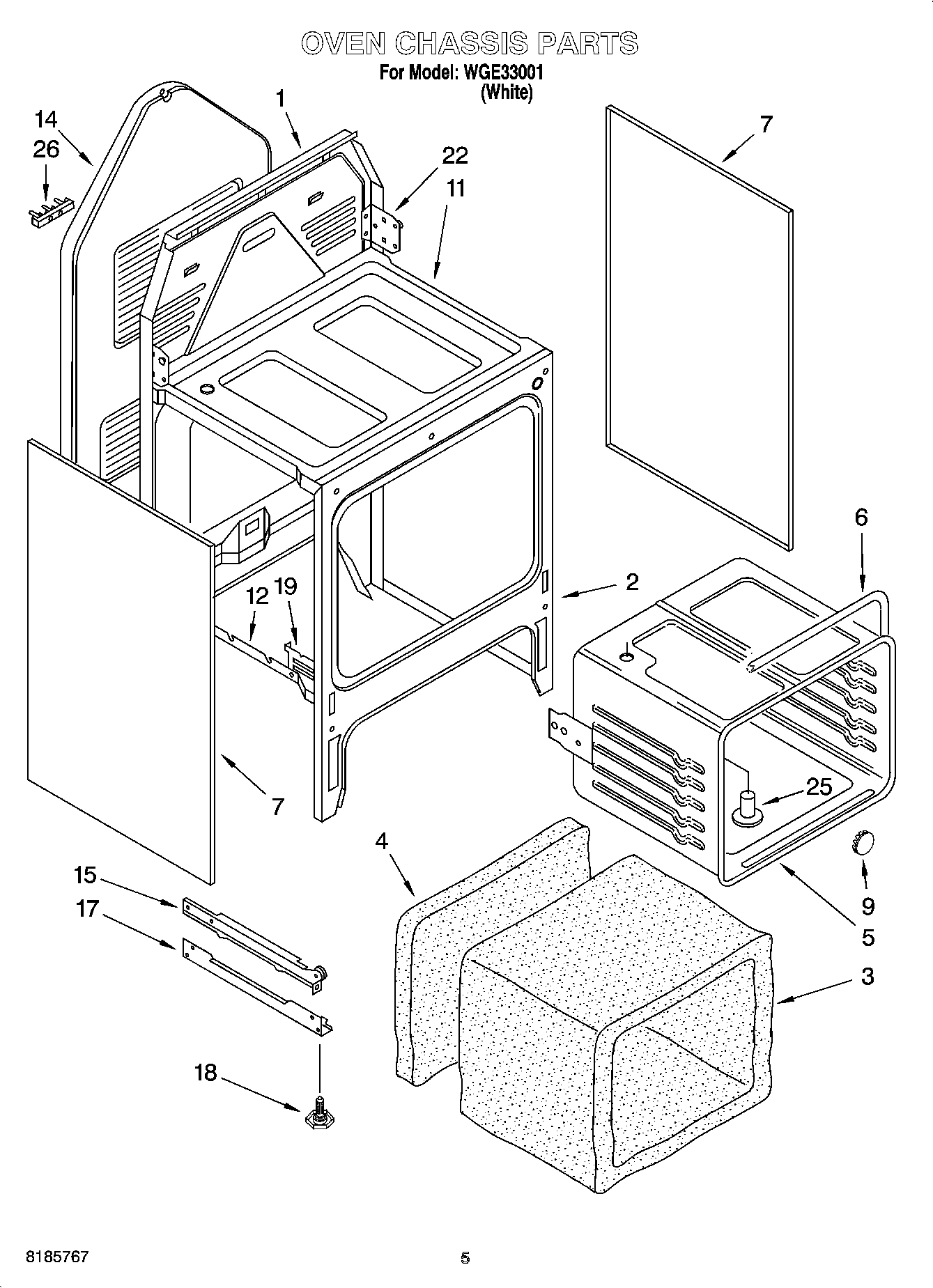

WGE33001 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
9	Button, Plug
11	Screw, (2)
11	Washer (3)
11	Burner Box
12	Oven Bottom
14	Screw (4) 10 x 3/8
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
19	Screw (4) 10 x 1/2
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
22	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
26	WP8203546 Whirlpool Terminal Block
26	Screw, (2) 10-16 x 1
26	WP112432 Whirlpool Nut Assembly
