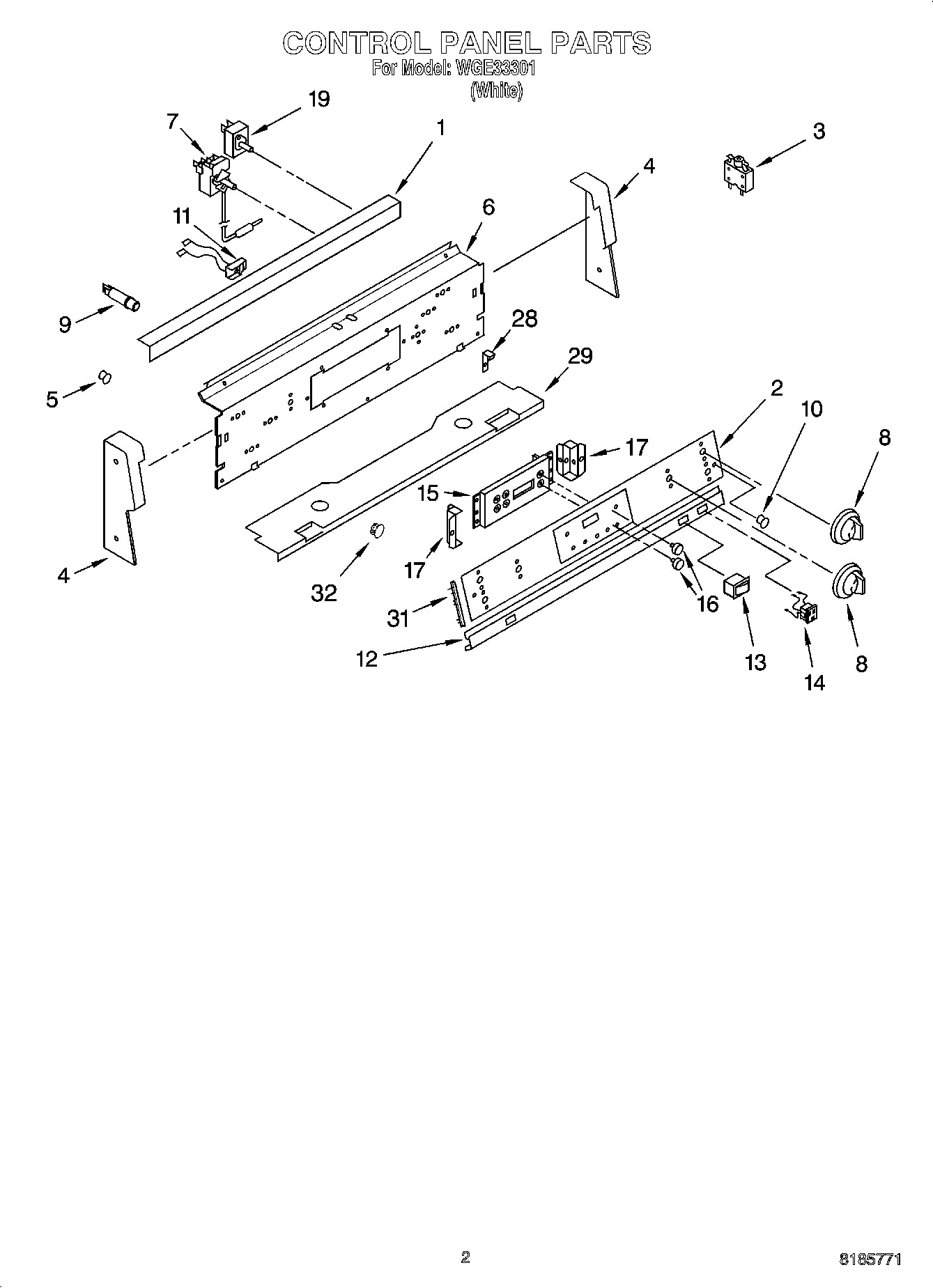

WGE33301 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (Control Panel)
3	Breaker, 15 Amp
4	End Cap (Right)
4	End Cap (Left)
5	Button, Plug
5	Button Plug (8 mm (2))
6	Panel, Control
6	Panel, Control (Screw, (2) 8 x 3/8)
7	Thermostat
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator (Oven – Thermostat)
12	Trim Strip
13	Switch, Oven Light
14	Outlet, Untimed
15	Timer
16	Knob, Timer (17) (White)
17	WPL 9753304
19	WP3400882 Whirlpool Screw
19	Screw (2)
19	WP9750646 Whirlpool Infinite Switch
19	WP9750643 Whirlpool Infinite Switch
28	WPL 9753017
29	WP3400832 Whirlpool Screw
29	Base, Console
29	WP4159387 Whirlpool Compactor Screw
31	Insert (2) (White)
32	Spacer, Timer
