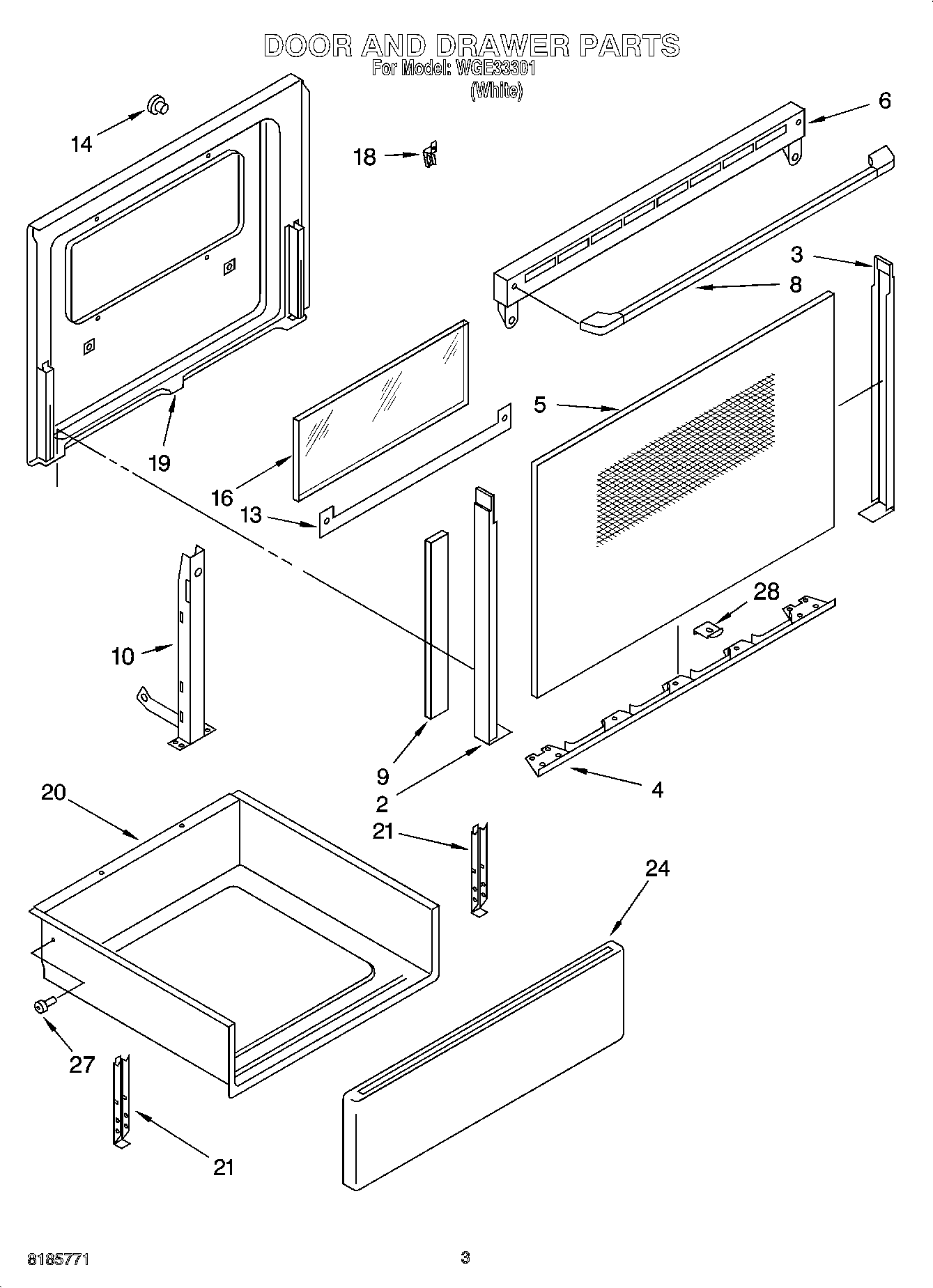

WGE33301 03 – DOOR AND DRAWER PARTS

Products

Position	Product
2	Trim, Door-Left (White)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (White)
5	Glass, Door Front
6	Vent, Door (Gasket, Vent)
6	Vent, Door (White)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door
9	Gasket, Door Glass
10	Hinge, Door R or L
13	Screw
13	Retainer, Glass (4)
14	238614 Whirlpool Bumper Hinge
16	Inner Glass, Clear
18	Retainer, Glass
19	Liner, Door
20	Drawer & Roller
21	WP4159387 Whirlpool Compactor Screw
21	Bracket, Drawer
24	Front, Drawer (White)
24	Screw (4) 10 x 1/2
27	814229 Whirlpool Primary Roller
27	WP90296 Whirlpool Clip
28	Spacer, Door (8)
