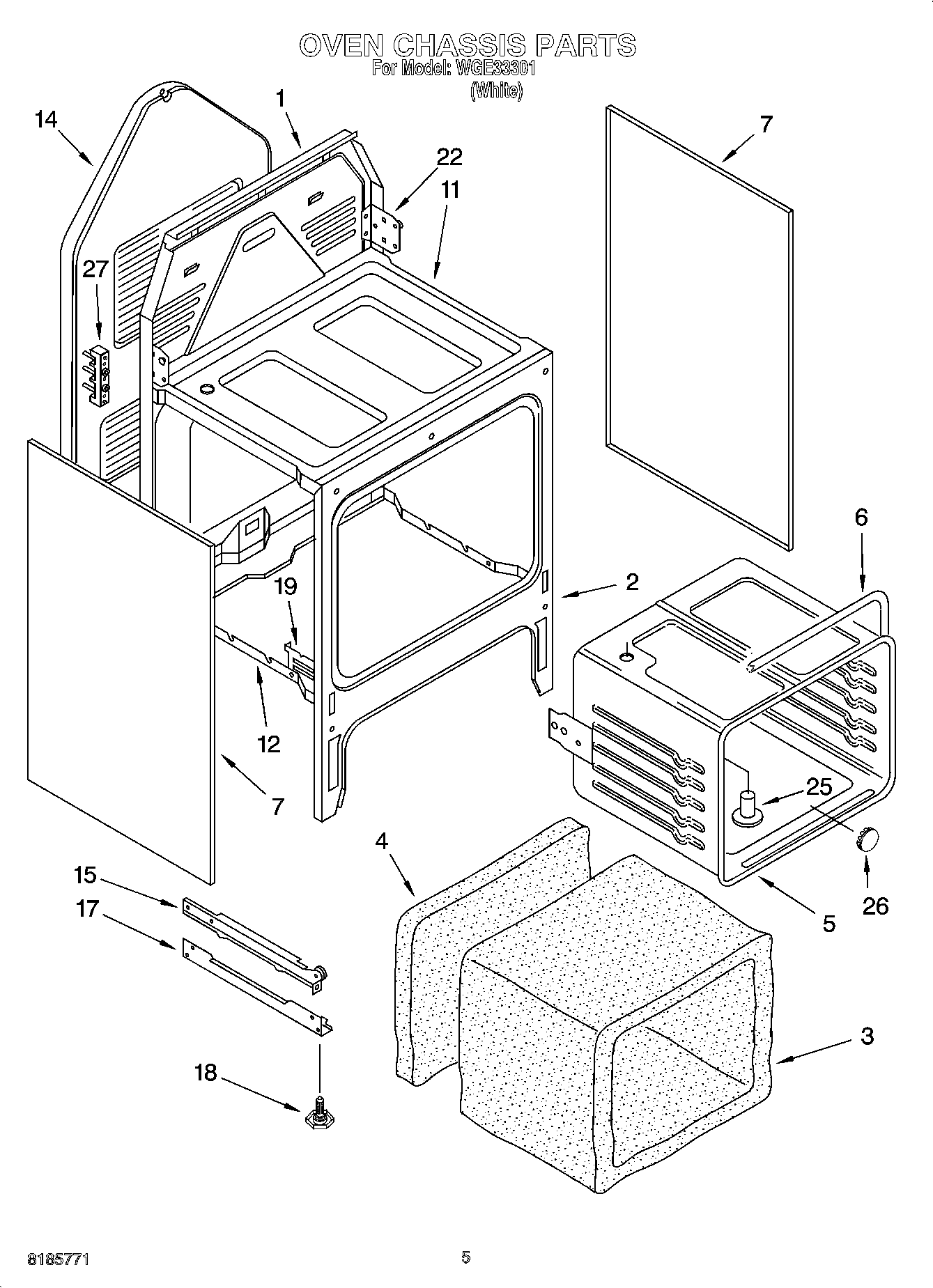

WGE33301 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
11	Burner Box
11	Washer (3)
11	Screw, (2)
12	Oven Bottom
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (4) 10 x 1/2
19	Hinge, Base L or R
22	WP4159387 Whirlpool Compactor Screw
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
25	Vent Tube
26	Button, Plug
27	Screw, (2) 10-16 x 1
27	WP8203546 Whirlpool Terminal Block
27	WP112432 Whirlpool Nut Assembly
