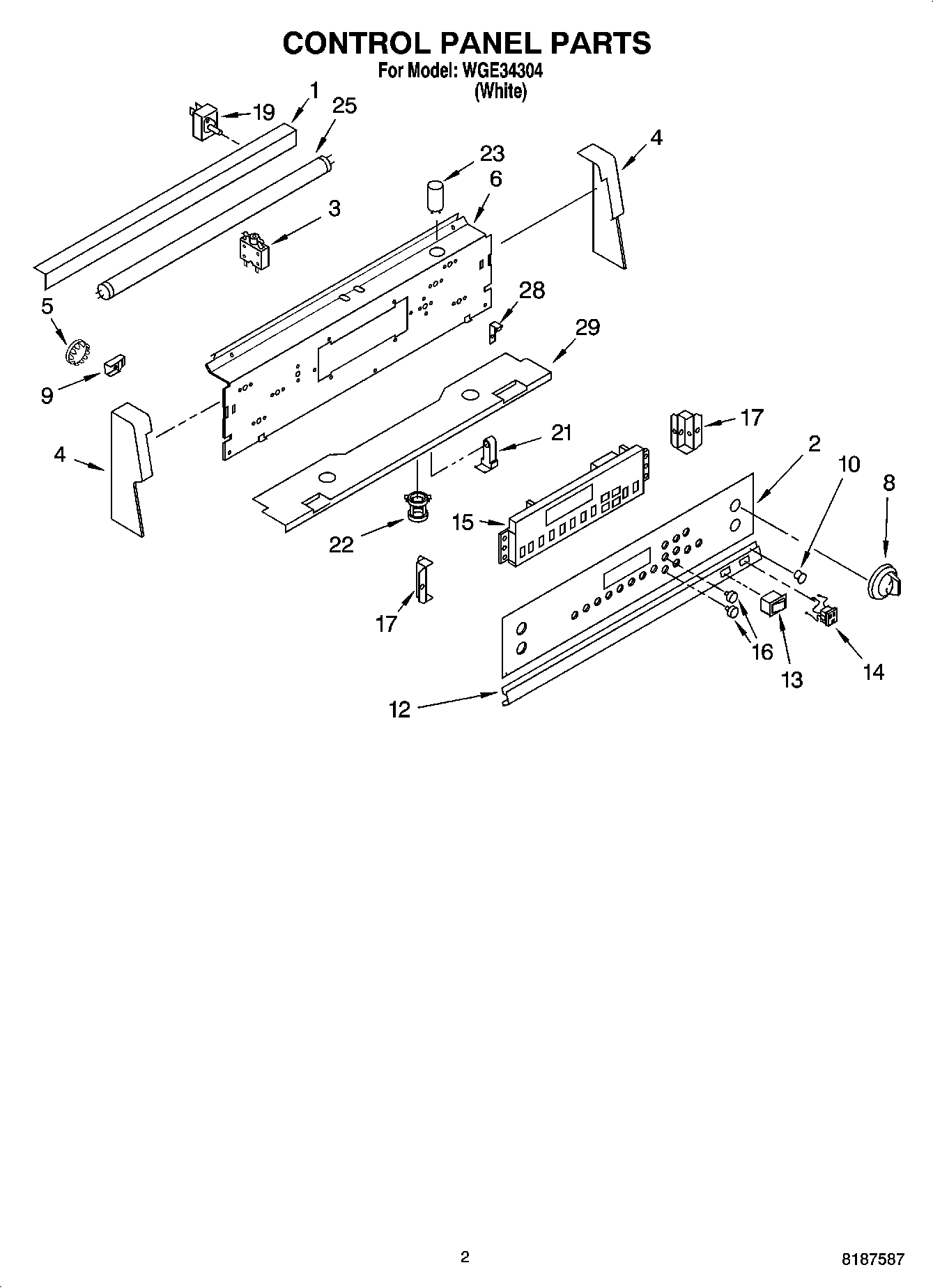

WGE34304 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (Control Panel) (White)
3	Breaker, 15 Amp
4	End Cap (Right)
4	End Cap (Left)
5	Button, Plug
5	Button Plug (8 mm (2))
6	Panel, Control
6	Spacer, Timer
6	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
10	WP9750343 Whirlpool Light Lens
12	Trim Strip
13	Switch, Oven Light (White)
14	Outlet, Untimed
15	Oven Control (Timer Assembly) Spacer, (2)
15	Insert (2) (White)
16	Knob, Timer (17) (White)
17	WPL 9753304
19	WP9750646 Whirlpool Infinite Switch
19	WP3400882 Whirlpool Screw
19	WP9750643 Whirlpool Infinite Switch
21	Receptacle, Light
22	Starter, Holder
23	Starter, Light
25	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 9753017
29	Base, Console
29	WP3400832 Whirlpool Screw
29	WP4159387 Whirlpool Compactor Screw
