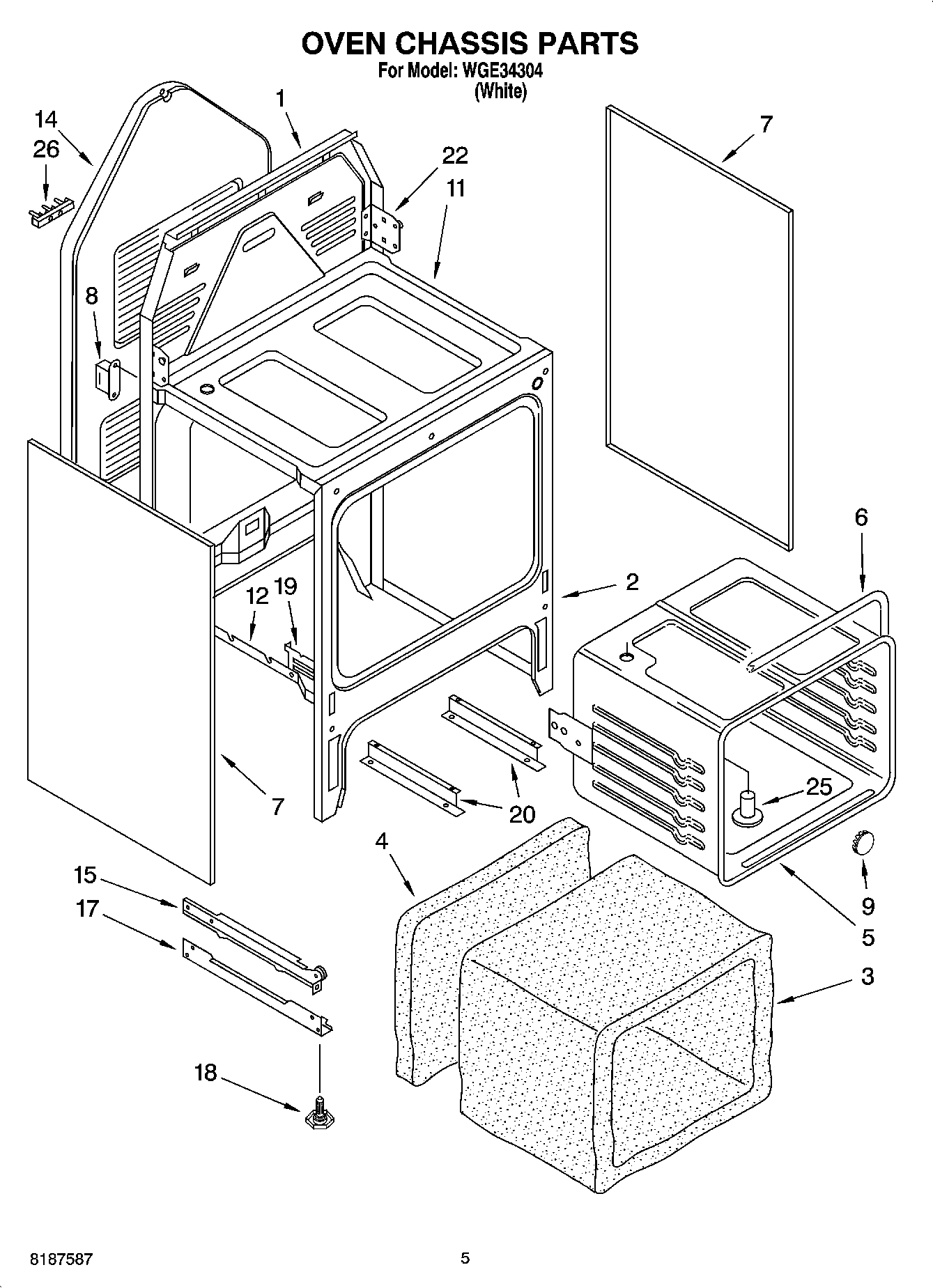

WGE34304 04 – OVEN CHASSIS PARTSadmin2025-04-26T11:06:34+00:00WGE34304 04 – OVEN CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | Main Chassis, Back |
| 2 | Chassis, Front |
| 3 | Insulation, Wrap |
| 4 | Insulation, Rear |
| 5 | Oven Liner |
| 6 | Gasket, Oven |
| 7 | Body, Side (White) |
| 8 | Ballast, Lamp |
| 9 | Button, Plug |
| 11 | Screw, (2) |
| 11 | Washer (3) |
| 11 | Burner Box |
| 12 | Oven Bottom |
| 14 | Panel, Rear |
| 14 | Screw (4) 10 x 3/8 |
| 15 | Drawer Rail, Left |
| 15 | Rail, Drawer (Right) |
| 17 | Bottom Rail (2) |
| 18 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 19 | Screw (4) 10 x 1/2 |
| 19 | Hinge, Base L or R |
| 20 | Support Rail |
| 22 | WP4159387 Whirlpool Compactor Screw |
| 22 | Hinge, Cktp.-Right |
| 22 | Hinge, Cktp.-Left |
| 25 | Vent Tube |
| 26 | WP8203546 Whirlpool Terminal Block |
| 26 | Screw, (2) 10-16 x 1 |
| 26 | WP112432 Whirlpool Nut Assembly |
