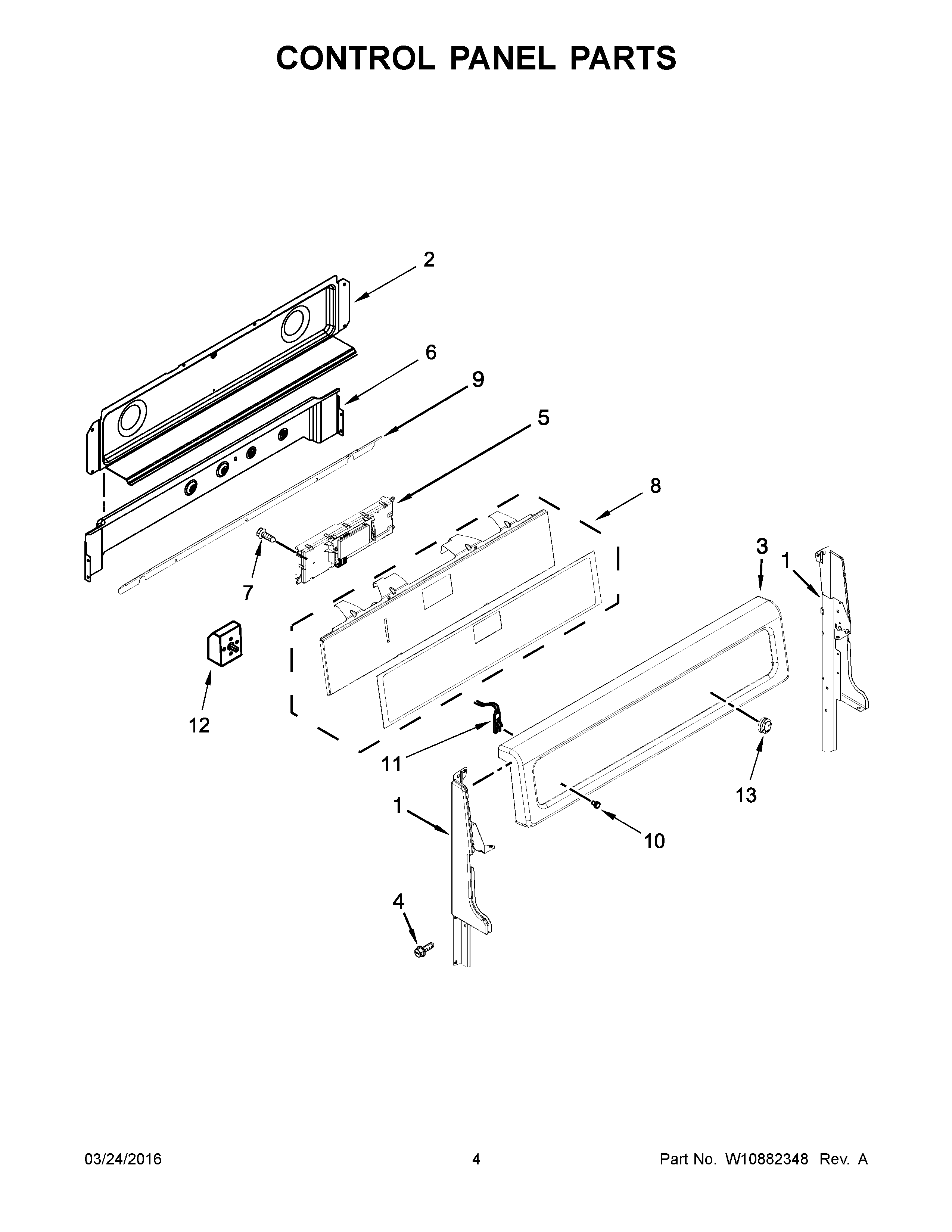

WGE555S0BB03 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	SUPPORT, BACK GUARD (RIGHT HAND)
1C	W10319112 Whirlpool Panel Endcap
1	W10319109 Whirlpool Endcap Panel
1B	W10319110 Whirlpool Endcap Panel
2	W10776098 Whirlpool Rear Cover
3B	WPW10318550 Whirlpool Control Panel
3A	WPW10318552 Whirlpool Control Panel
3	WPW10318551 Whirlpool Control Panel
4	SCREW (BLACK)
4A	SCREW (WHITE)
5	WPW10692917-includeCORE Whirlpool WPW10692917 Electronic Control Board with Core
6	W10278697 Whirlpool Vent Shield Assembly
7	SCREW
8	W10528785 Whirlpool Membrane Switch
8A	W10528786 Whirlpool Membrane Switch
8B	WPW10531229 Whirlpool Membrane Switch
10	WP3196068 Whirlpool Light Lens
11	Light, Indicator
12C	SWITCH, INFINITE (RIGHT REAR)
12B	SWITCH, INFINITE (RIGHT FRONT)
12A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
12	WPW10312185 Whirlpool Infinite Switch
13A	W10437075 Whirlpool Knob
13	W10437077 Whirlpool Knob Assembly
13B	WPW10437088 Whirlpool Burner Knob
