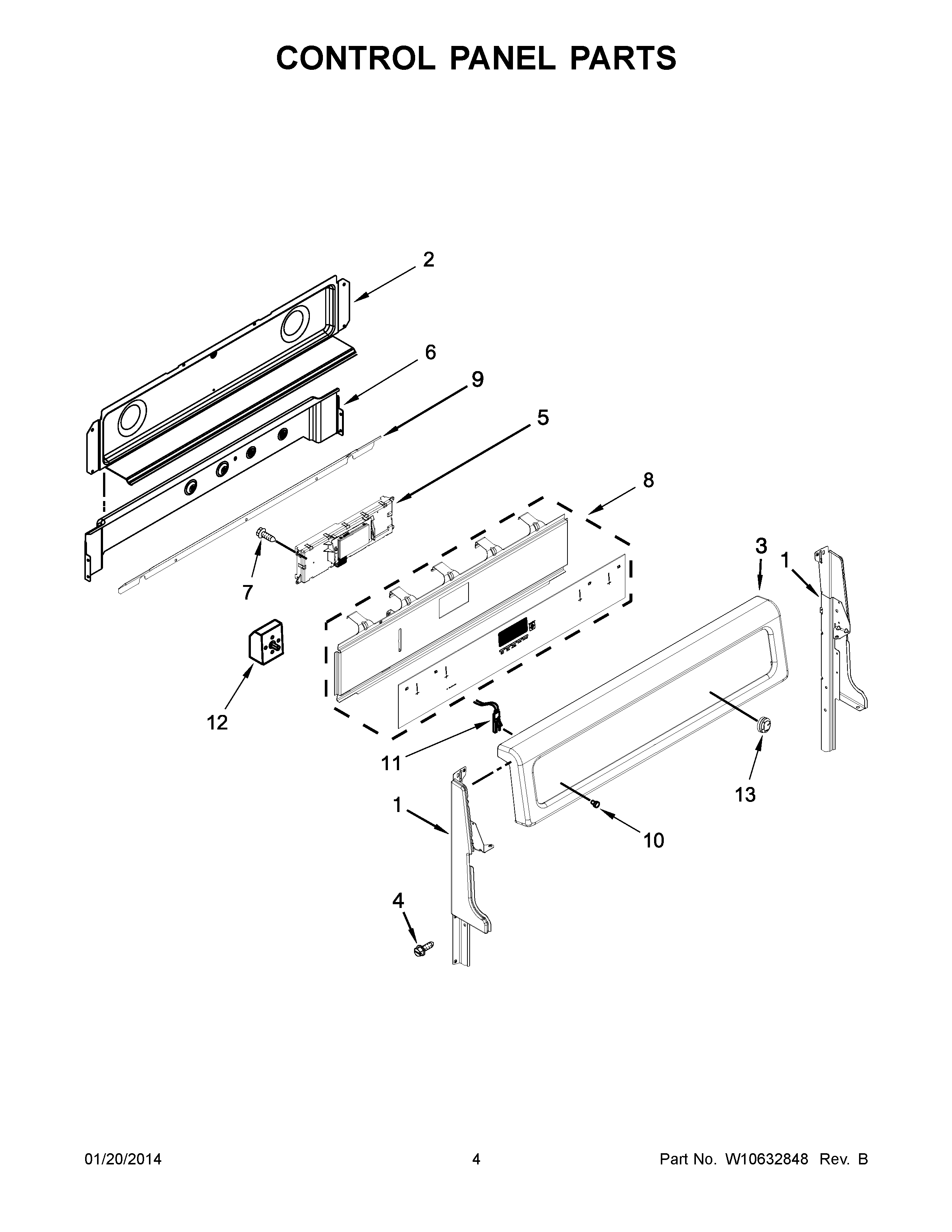

WGE555S0BS00 03 – CONTROL PANEL PARTS

WGE555S0BS00 03 – CONTROL PANEL PARTS

Written by

in

WGE555S0BS00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319112 Whirlpool Panel Endcap
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
1W10319110 Whirlpool Endcap Panel
2W10296773 Whirlpool Rear Cover
3WPW10318552 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
3WPW10318550 Whirlpool Control Panel
4SCREW (WHITE)
4SCREW (BLACK)
5CONTROL MRC2
6W10278697 Whirlpool Vent Shield Assembly
7SCREW
8WPW10531229 Whirlpool Membrane Switch
8W10528785 Whirlpool Membrane Switch
8W10528786 Whirlpool Membrane Switch
10WP3196068 Whirlpool Light Lens
11Light, Indicator
12WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
12WPW10441696 Infinite Switch (Right) Front)
12SWITCH, INFINITE (RIGHT FRONT)
12SWITCH, INFINITE (RIGHT REAR)
13W10437075 Whirlpool Knob
13W10437077 Whirlpool Knob Assembly
13WPW10437088 Whirlpool Burner Knob
