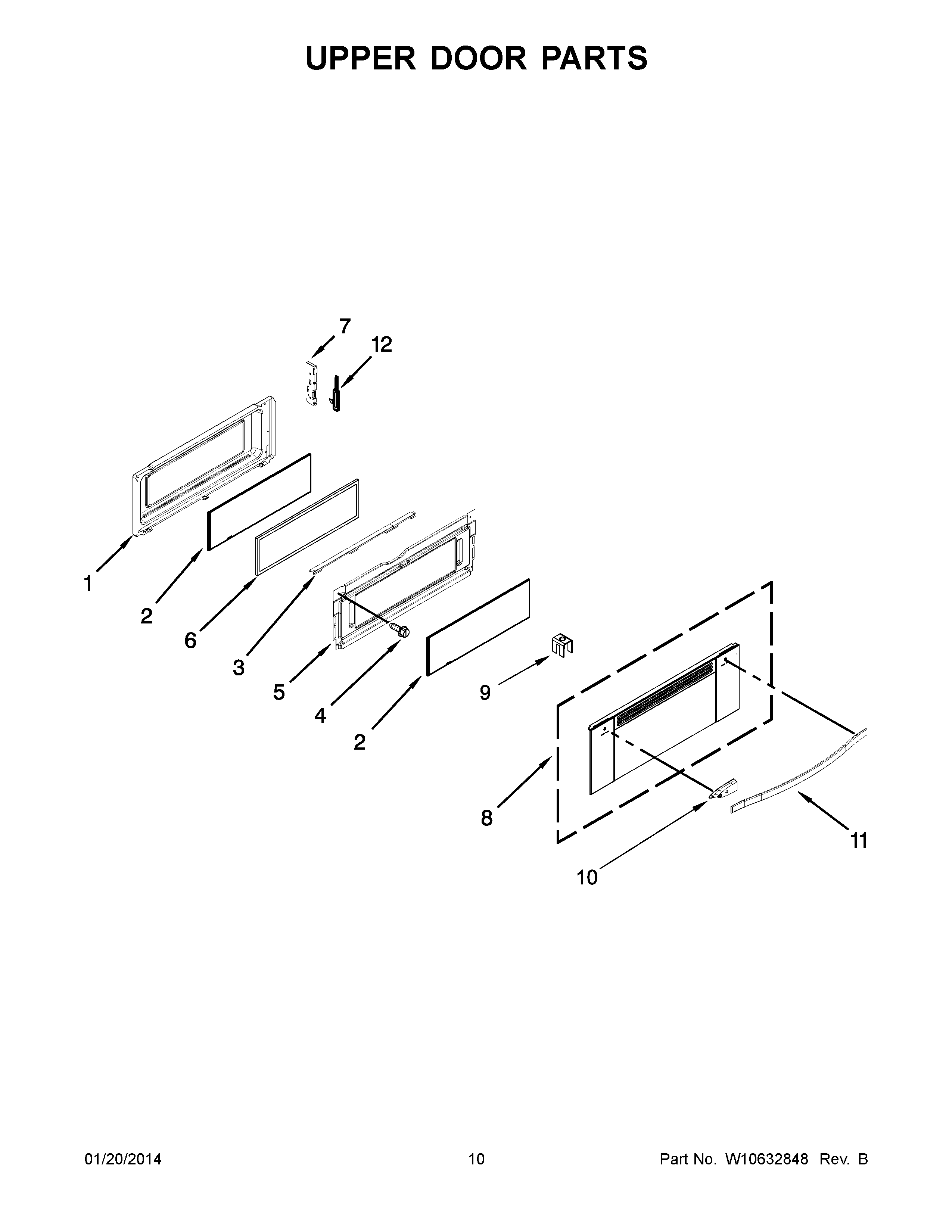

WGE555S0BS00 06 – UPPER DOOR PARTS

WGE555S0BS00 06 – UPPER DOOR PARTS

Written by

in

WGE555S0BS00 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11051040 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8ASSEMBLY, DOOR GLASS (BLACK)
8ASSEMBLY, DOOR GLASS (WHITE)
8W10677218 Whirlpool Door Glass
9W10575917 Whirlpool Spacer
10WPW10410341 Whirlpool Spacer
11WPW10618239 Whirlpool Door Handle
11W10300490 Whirlpool Door Handle
11W10300489 Whirlpool Door Handle
12WPW10485733 Whirlpool Door Hinge
12WPW10485732 Whirlpool Door Hinge
