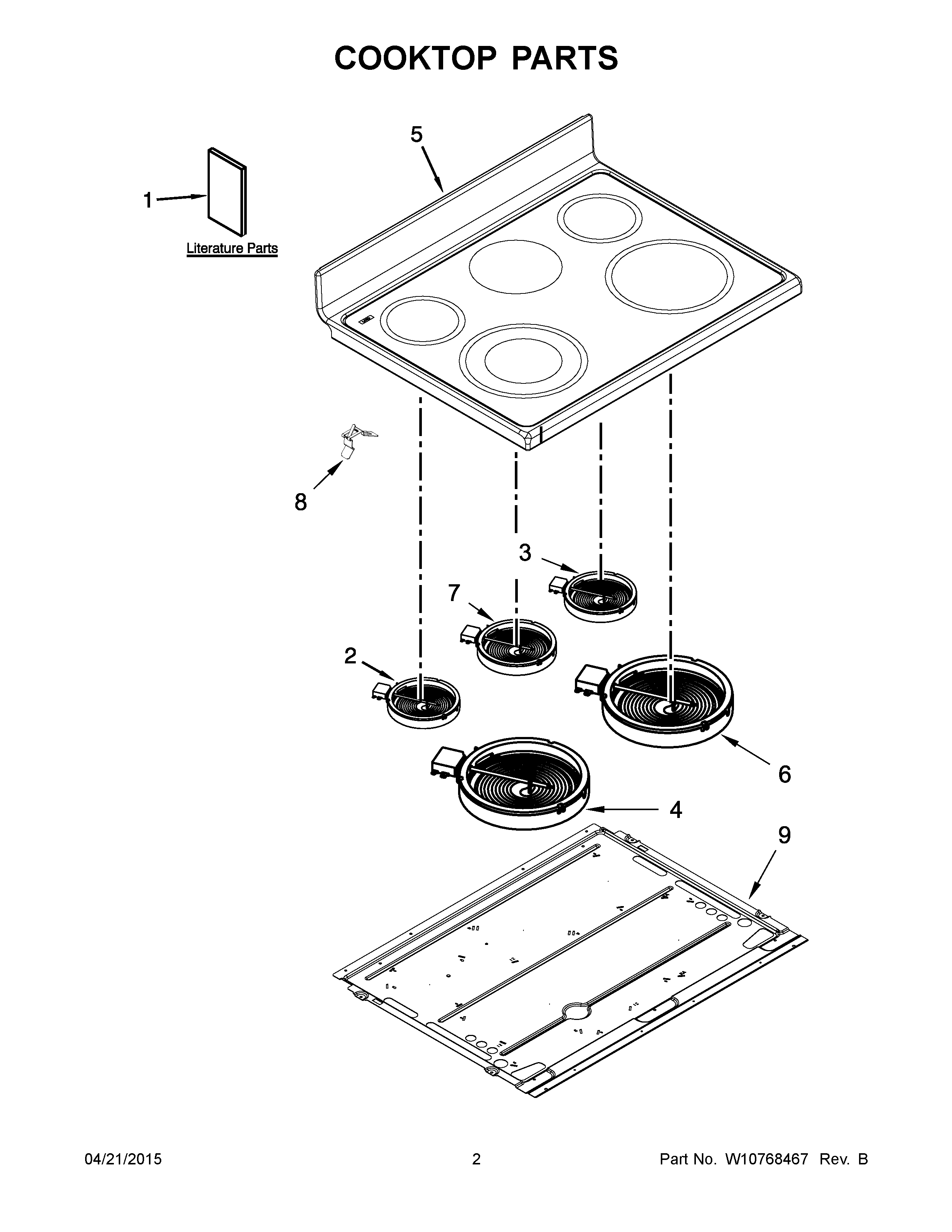

WGE555S0BS01 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	W10537938 Whirlpool Wire Harness
NI	W10457077 Whirlpool Wire Harness
NI	W10270316 Whirlpool Wire Harness
NI	W10225693 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	W10225701 Whirlpool Sensor Wire Harness
NI	WPL 8019P01360
NI	W11157775 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1A	GUIDE, USE & CARE
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10270604 Whirlpool Surface Element
3	ELMNT-SURF
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W10636388 Whirlpool Oven Cooktop
5A	W10636389 Whirlpool Cooktop
6	W11047722 Whirlpool Radiant Surface Element
7	WP9762851 Whirlpool Surface Element
8	WPW10225448 Whirlpool Spring Assembly
9	WPW10260946 Whirlpool Panel
