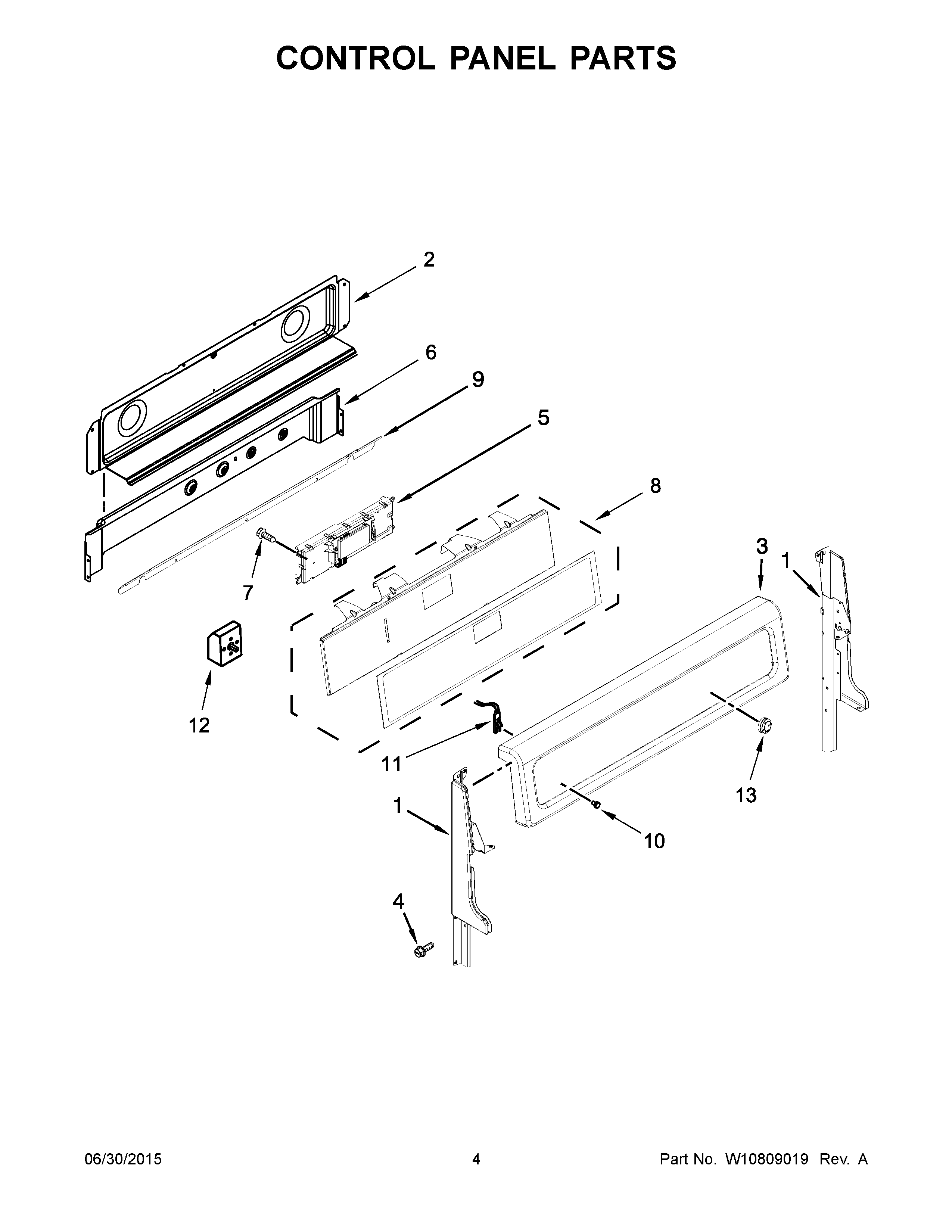

WGE555S0BS02 03 – CONTROL PANEL PARTS

WGE555S0BS02 03 – CONTROL PANEL PARTS

Written by

in

WGE555S0BS02 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW10319112 Whirlpool Panel Endcap
1W10319109 Whirlpool Endcap Panel
1BW10319110 Whirlpool Endcap Panel
2W10776098 Whirlpool Rear Cover
3AWPW10318552 Whirlpool Control Panel
3BWPW10318550 Whirlpool Control Panel
3WPW10318551 Whirlpool Control Panel
4SCREW (BLACK)
4ASCREW (WHITE)
5WPW10692917-includeCORE Whirlpool WPW10692917 Electronic Control Board with Core
6W10278697 Whirlpool Vent Shield Assembly
7SCREW
8BWPW10531229 Whirlpool Membrane Switch
8AW10528786 Whirlpool Membrane Switch
8W10528785 Whirlpool Membrane Switch
10WP3196068 Whirlpool Light Lens
11Light, Indicator
12WPW10441696 Infinite Switch (Right) Front)
12BSWITCH, INFINITE (RIGHT FRONT)
12AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
12CSWITCH, INFINITE (RIGHT REAR)
13AW10437075 Whirlpool Knob
13W10437077 Whirlpool Knob Assembly
13BWPW10437088 Whirlpool Burner Knob
