WGE555S0BS03 02 – COOKTOP PARTS

WGE555S0BS03 02 – COOKTOP PARTS

Written by

in

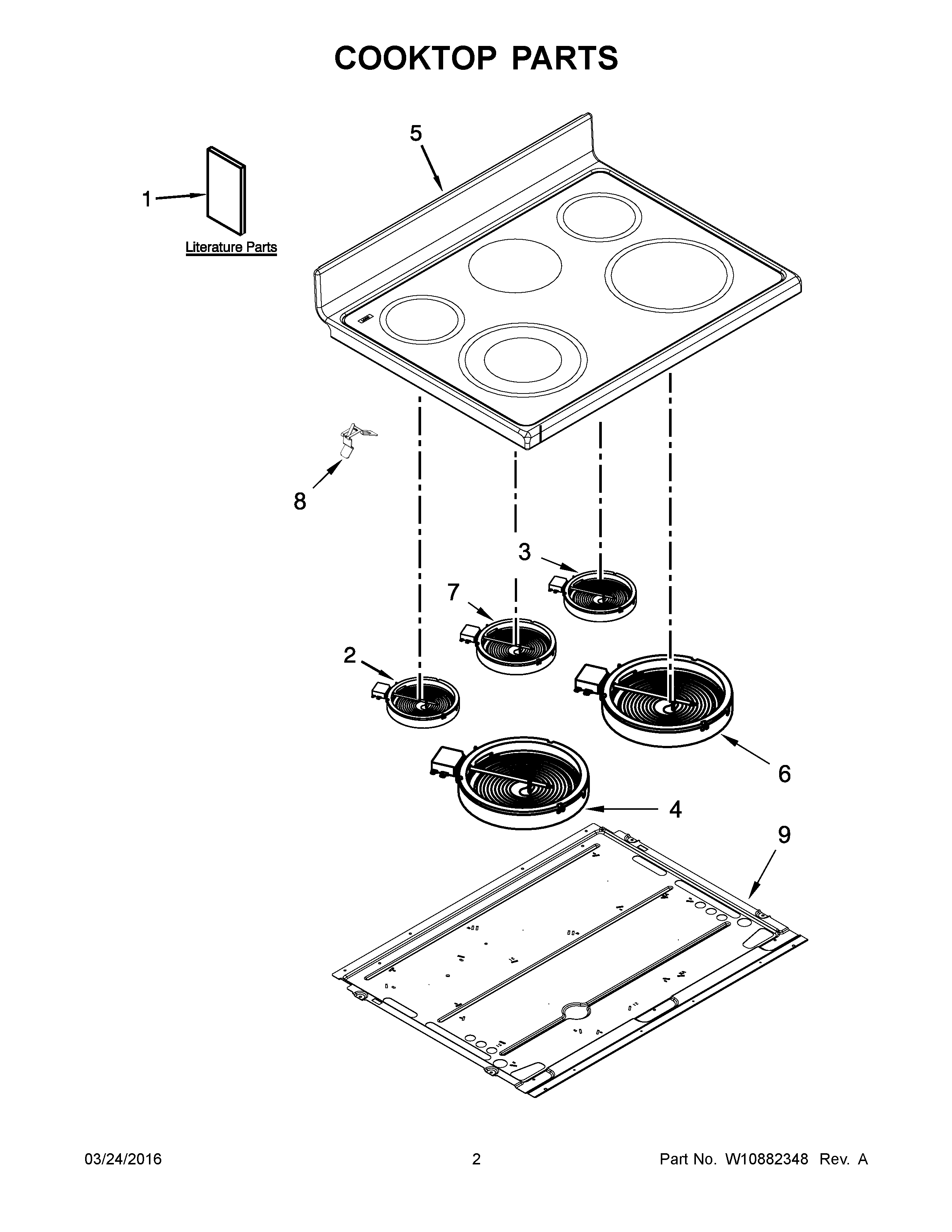

WGE555S0BS03 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10825602 Whirlpool Wire Harness
NIW11172531 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIW10270316 Whirlpool Wire Harness
NIW10225693 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, SCREW, GROUND
NIWPL 8019P01360
NIHARNESS, MAIN
1AGUIDE, USE & CARE
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1INSTRUCTIONS, INSTALLATION
1BSHEET, TECH
2WPW10270604 Whirlpool Surface Element
3ELMNT-SURF
4W11517959 Whirlpool Electric Range Radiant Surface Element
5W10636388 Whirlpool Oven Cooktop
5AW10636389 Whirlpool Cooktop
6W11047722 Whirlpool Radiant Surface Element
7WP9762851 Whirlpool Surface Element
8WPW10225448 Whirlpool Spring Assembly
9WPW10260946 Whirlpool Panel
