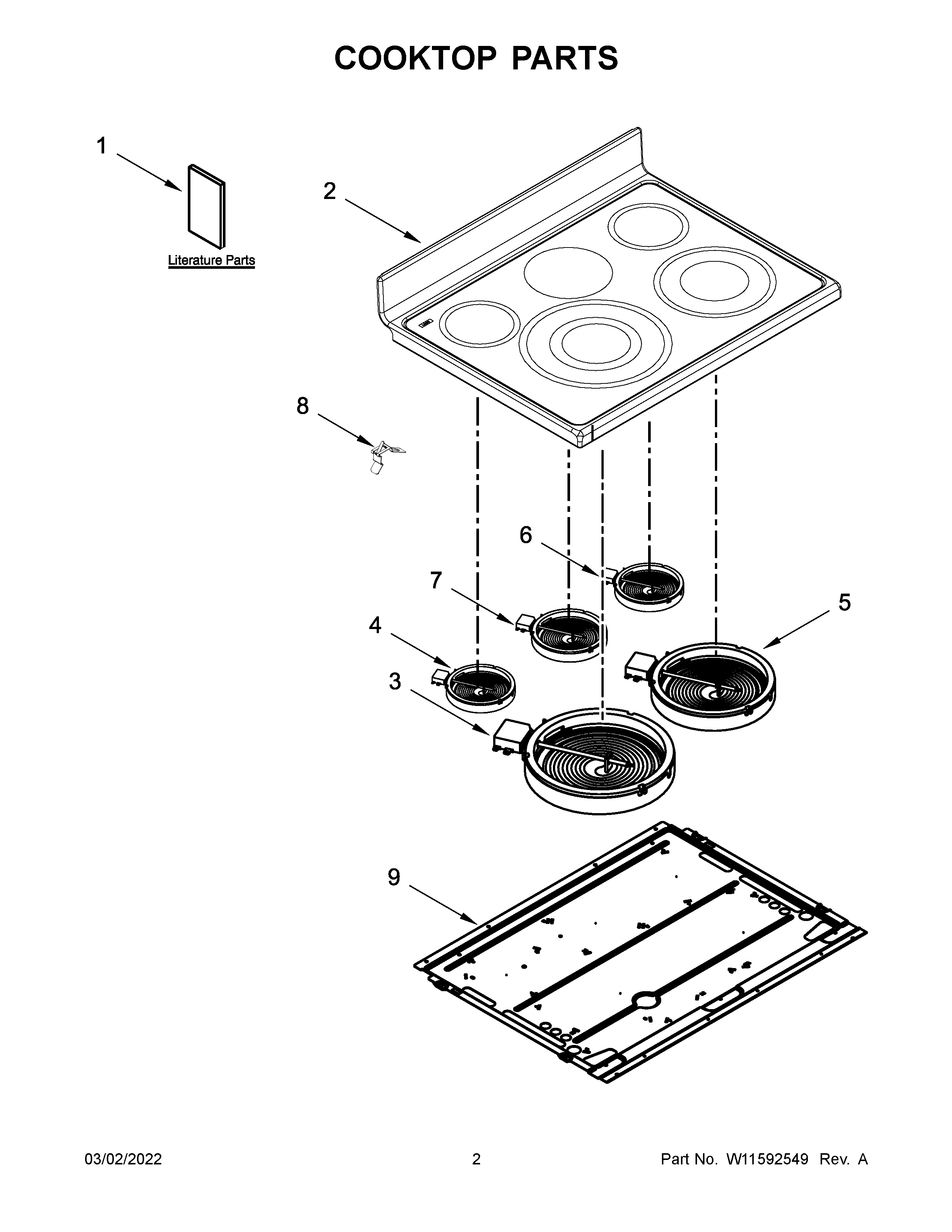

WGE745C0FE05 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172531 Whirlpool Wire Harness
NI	W11172427 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	W11172428 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
NI	W11190451 Whirlpool Wire Harness
NI	W11217844 Whirlpool Wire Harness
NI	W11134679 Whirlpool Wire Harness
1	OWNER'S MANUAL
1A	TECH SHEET
1B	QUICK START GUIDE
2A	W10877560 Whirlpool Cooktop Assembly
2	W10877558 Whirlpool Cooktop
3	W11563195 Whirlpool Surface Element
4	WPW10342780 Whirlpool Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10225448 Whirlpool Spring Assembly
9	WPW10260946 Whirlpool Panel
