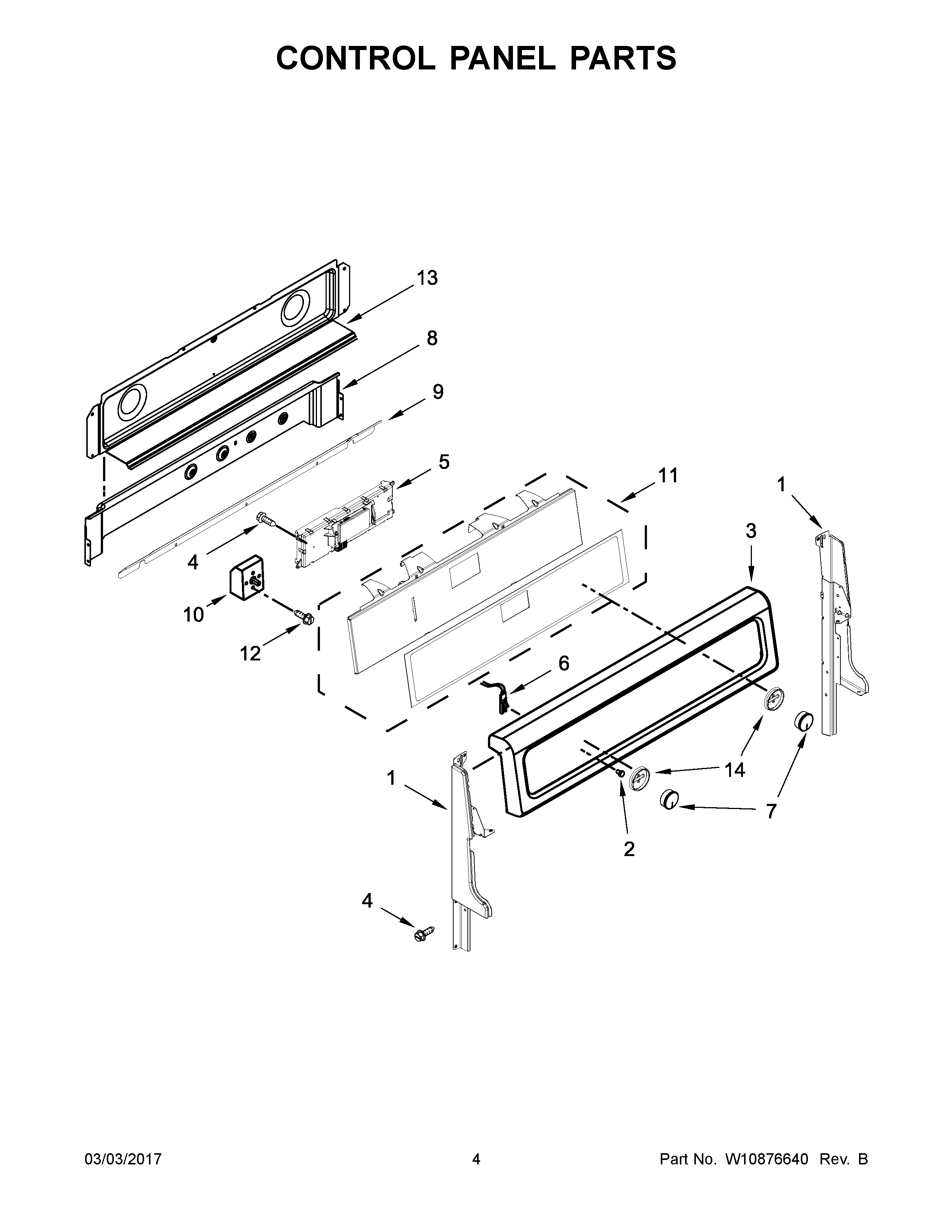

WGE745C0FH00 03 – CONTROL PANEL PARTS

WGE745C0FH00 03 – CONTROL PANEL PARTS

Written by

in

WGE745C0FH00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10319110 Whirlpool Endcap Panel
1W10319109 Whirlpool Endcap Panel
1BSUPPORT, BACK GUARD (RIGHT HAND)
1CW10319112 Whirlpool Panel Endcap
2WP3196068 Whirlpool Light Lens
3WPW10318551 Whirlpool Control Panel
3BWPW10318550 Whirlpool Control Panel
3AWPW10318552 Whirlpool Control Panel
4SCREW
5W10877730 Whirlpool Electronic Control Board
6Light, Indicator
7W11517335 Whirlpool Knob Assembly
8W10278697 Whirlpool Vent Shield Assembly
10AW10917724 Whirlpool Infinite Switch
10W11129442 Whirlpool Surface Infinite Element Switch
10CSWITCH, INFINITE (RIGHT REAR)
10BWPW10312185 Whirlpool Infinite Switch
11BW10877769 Whirlpool Membrane Switch
11W10877766 Whirlpool Membrane Switch
11AW10877767 Whirlpool Membrane Switch
12W10674068 Whirlpool Screw
13W10776098 Whirlpool Rear Cover
14W10850042 Whirlpool Knob Bezel
